576 XP AutoTune - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

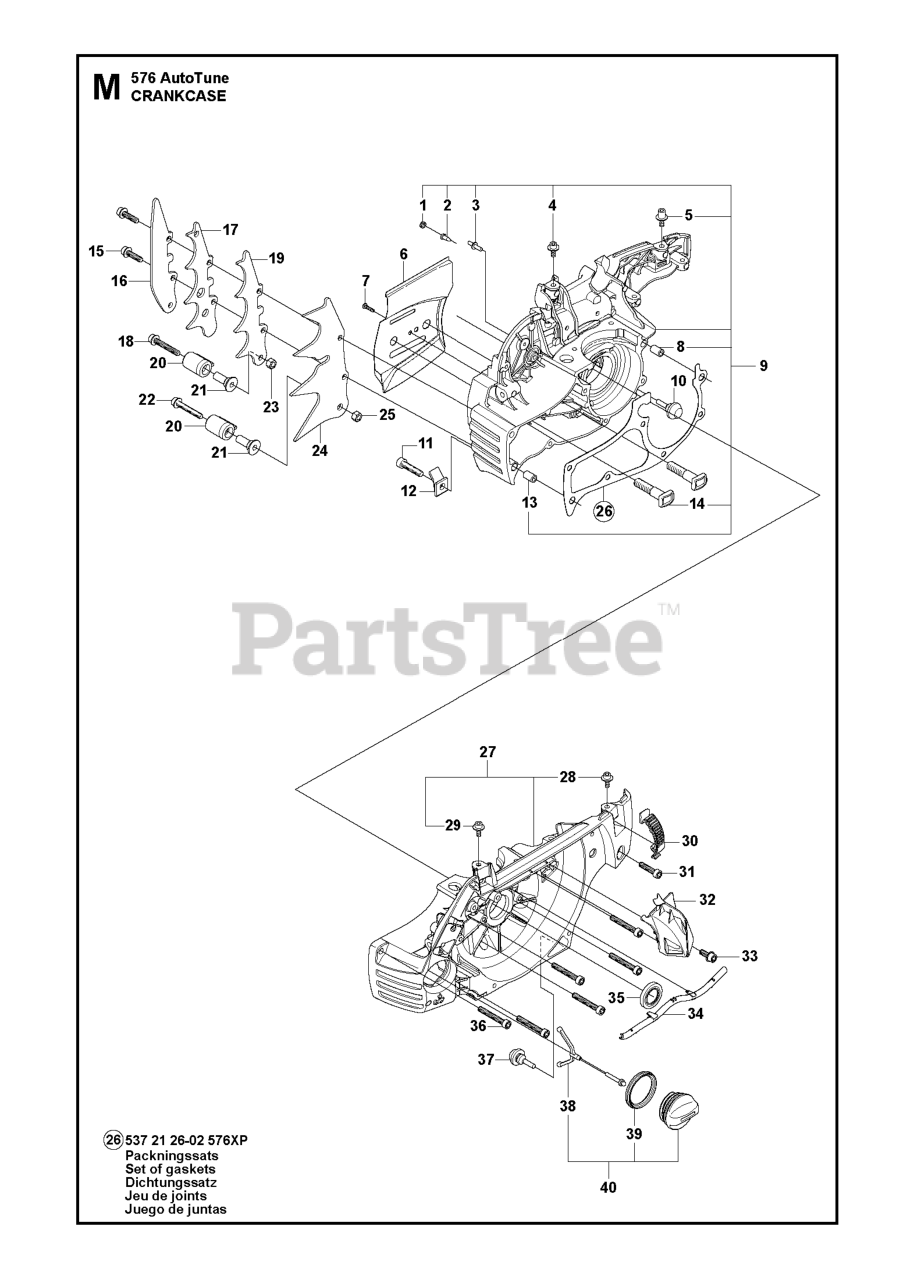

CRANKCASE Parts Diagram

  • Title

36

Husqvarna 503200870

SCREW

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505111501

SCREW IHSCM

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 503200780

SCREW IHSCFM

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 503846101

BUFFER

$8.99

$

In Stock, Qty 11

0

33

Husqvarna 503200712

SCREW

$7.49

$

In Stock, Qty 20+

0

31

Husqvarna 503207320

SCREW

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 537089201

CHAIN CATCHER

$10.99

$

In Stock, Qty 12

0

20

Husqvarna 537024401

SPACER

$9.99

$

In Stock, Qty 7

0

23

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 537212602

GASKET KIT

Note: Set of gaskets

$29.99

$

In Stock, Qty 8

0

7

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 537042901

BUMPER

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 503200780

SCREW IHSCFM

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 503846101

BUFFER

$8.99

$

In Stock, Qty 11

0

3

Husqvarna 537203001

PIN

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 503212616

SCREW

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 537013702

BAR PLATE

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537017101

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

24

Husqvarna 537017201

FELLING DOG

$35.99

$

Usually ships in 3-10 days

0

8

Husqvarna 593806001

GUIDE BUSHING

$9.99

$

In Stock, Qty 8

0

4

Husqvarna 505111501

SCREW IHSCM

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 537377901

CHAIN CATCHER

$9.99

$

In Stock, Qty 12

0

39

Husqvarna 589241101

SEALING

$8.99

$

In Stock, Qty 17

0

9

Husqvarna 544896602

CRANKCASE ASSY

$283.99

$

Usually ships in 3-10 days

0

40

Husqvarna 537215207

TANK CAP

$10.99

$

In Stock, Qty 20+

0

35

Husqvarna 505486801

RADIAL SEAL

$22.99

$

In Stock, only 2 left!

0

29

Husqvarna 505111501

SCREW IHSCM

$4.99

$

In Stock, only 4 left!

0

28

Husqvarna 505111501

SCREW IHSCM

$4.99

$

In Stock, only 4 left!

0

27

Husqvarna 544896602

CRANKCASE ASSY

$283.99

$

Usually ships in 3-10 days

0

30

Husqvarna 503894703

CLIP GRAY

Note: Grey

$11.99

$

In Stock, Qty 16

0

1

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

In Stock, only 4 left!

0

32

Husqvarna 537209201

JET

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

14

Husqvarna 537051301

BOLT

$10.99

$

In Stock, Qty 6

0

17

Husqvarna 503647902

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

38

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

13

Husqvarna 593806001

GUIDE BUSHING

$9.99

$

In Stock, Qty 8

0

34

Husqvarna 537203901

HOLDER

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 20+

0

11

Husqvarna 503207320

SCREW

$6.49

$

In Stock, Qty 20+

0
