576 XP - Husqvarna Chainsaw (SN: 20090400001 - 20101000000) CRANKCASE Parts Diagram

Chainsaw

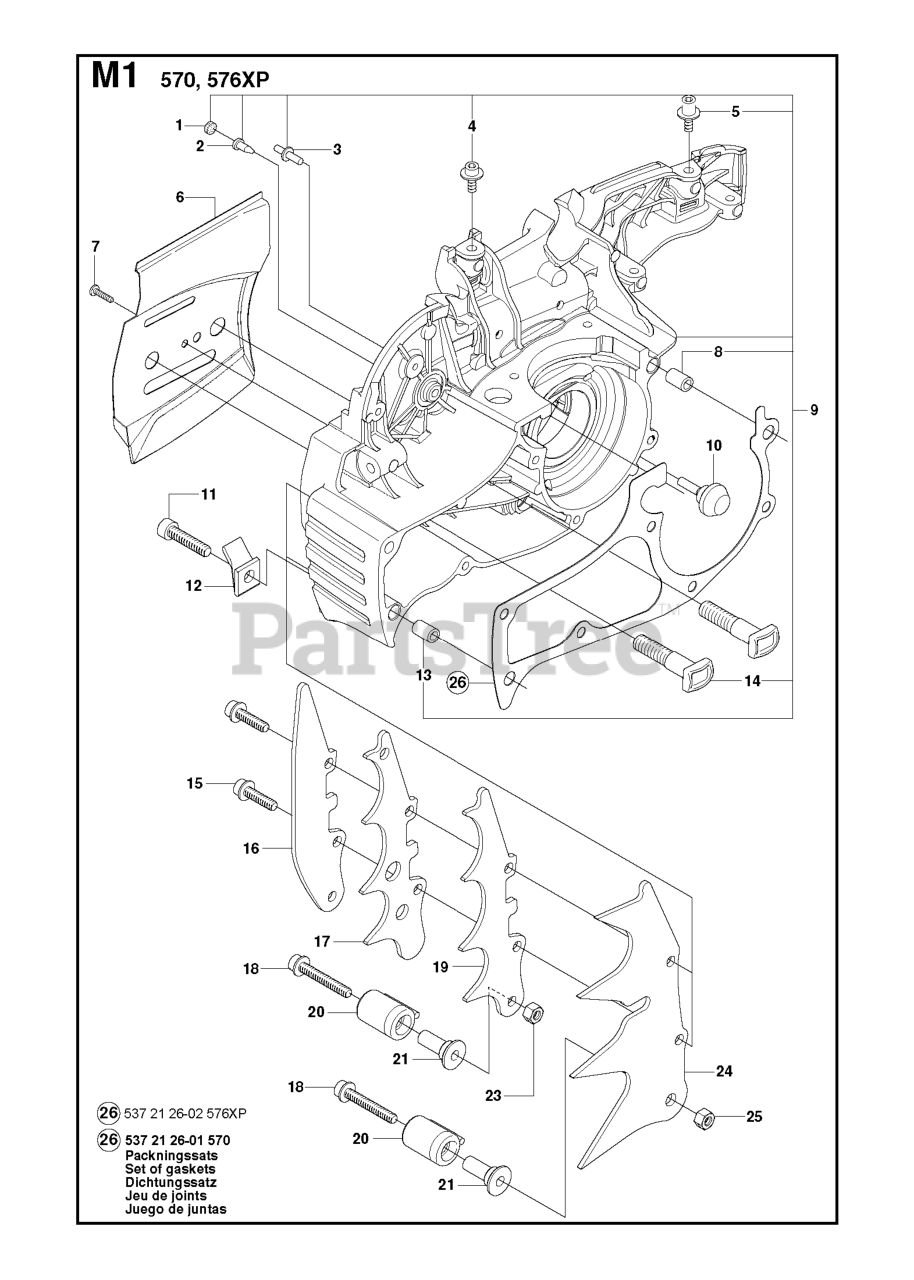

CRANKCASE Parts Diagram

  • Title

13

Husqvarna 501270801

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

7

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 537017101

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

17

Husqvarna 503647902

FELLING DOG

$24.99

$

In Stock, only 1 left!

0

5

Husqvarna 505111501

SCREW IHSCM

$4.99

$

In Stock, only 4 left!

0

23

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 537212601

GASKET SET

Note: 570

$31.99

$

In Stock, only 1 left!

0

6

Husqvarna 537013702

BAR PLATE

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 537024401

SPACER

$9.99

$

In Stock, Qty 7

0

8

Husqvarna 501270801

SLEEVE

$8.49

$

Usually ships in 3-10 days

0

16

Husqvarna 537042901

BUMPER

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503212616

SCREW

$6.49

$

In Stock, Qty 9

0

4

Husqvarna 505111501

SCREW IHSCM

$4.99

$

In Stock, only 4 left!

0

2

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

18

Husqvarna 503207430

SCREW
(Superseded to 503200780)

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 537017201

FELLING DOG

$35.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503846101

BUFFER

$8.99

$

In Stock, Qty 11

0

14

Husqvarna 537051301

BOLT

$10.99

$

In Stock, Qty 6

0

9

Husqvarna 537209304

RP CRANKCASE ASSEMBLY
(Superseded to 537209308)

Note: 570

$283.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503207320

SCREW

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 537212602

GASKET KIT

Note: 576XP

$29.99

$

In Stock, Qty 8

0

1

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

In Stock, only 4 left!

0

18

Husqvarna 503200780

SCREW IHSCFM

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 537089201

CHAIN CATCHER

$10.99

$

In Stock, Qty 12

0

9

Husqvarna 544896602

CRANKCASE ASSY

Note: 576XP

$283.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537203001

PIN

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 537377901

CHAIN CATCHER

$9.99

$

In Stock, Qty 12

0
