580.326300 (1799-0) - Craftsman 6,300 Watt Portable Generator Alternator Parts Diagram

6,300 Watt Portable Generator

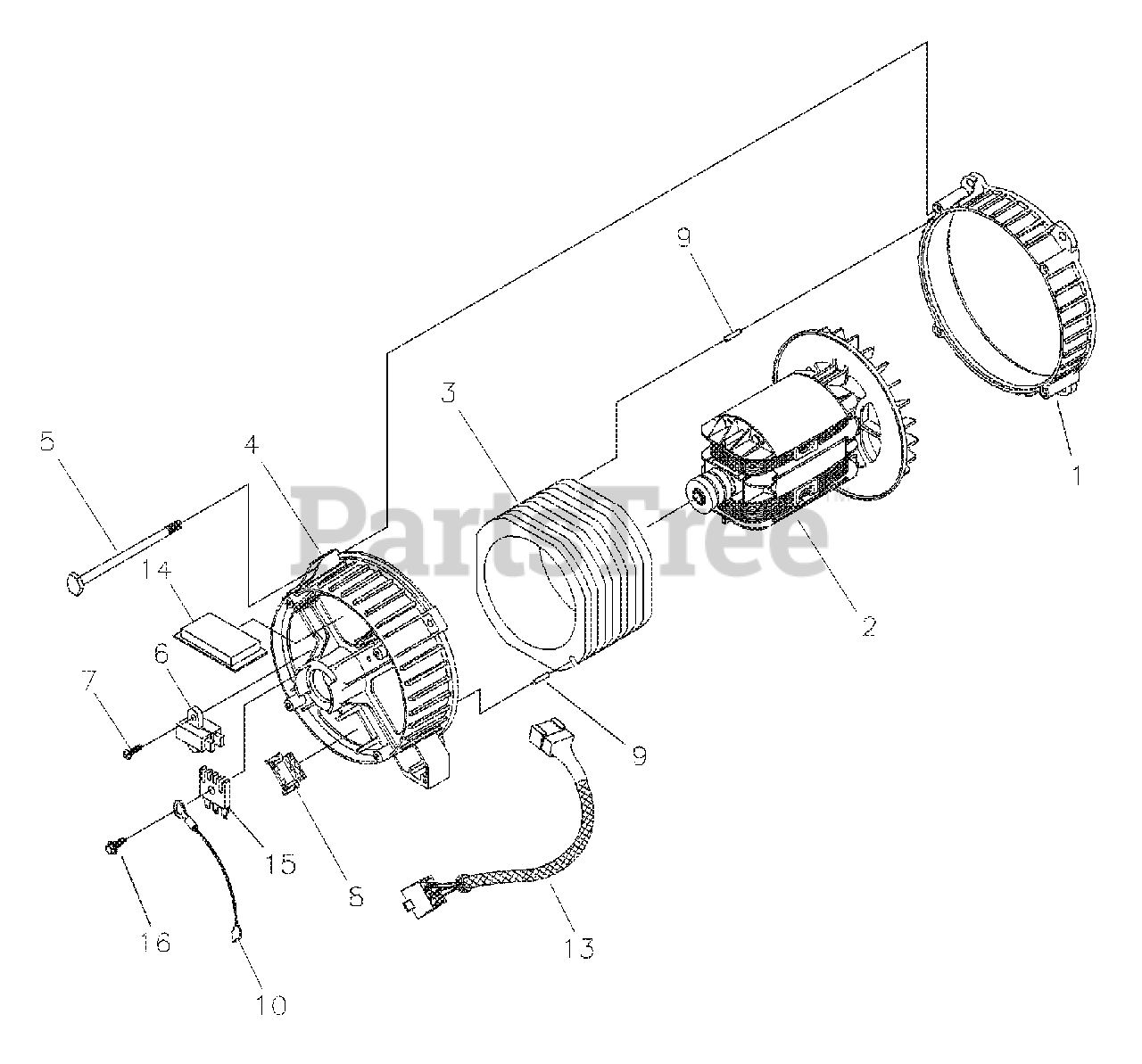

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 191876GS

ROTOR

$315.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192196AGS

STATOR

$577.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, with O-Ring (p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 86308HGS

SCREW

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

ASSY, Holder, Rectifier/Brush

$23.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 22694GS

RECEPTACLE, 6 pin

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193428AGS

ASSY, Wire, Ground

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 190356GS

HARNESS, Wire, Power

$41.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189769GS

REGULATOR, Voltage-AVR
(Superseded to 205858GS)

$107.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

16

Briggs & Stratton 66849AGS

SCREW

$4.49

$

Usually ships in 2-12 days

0
