580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Cylinder & Crankcase Assembly Parts Diagram

10,000 Watt Portable Generator

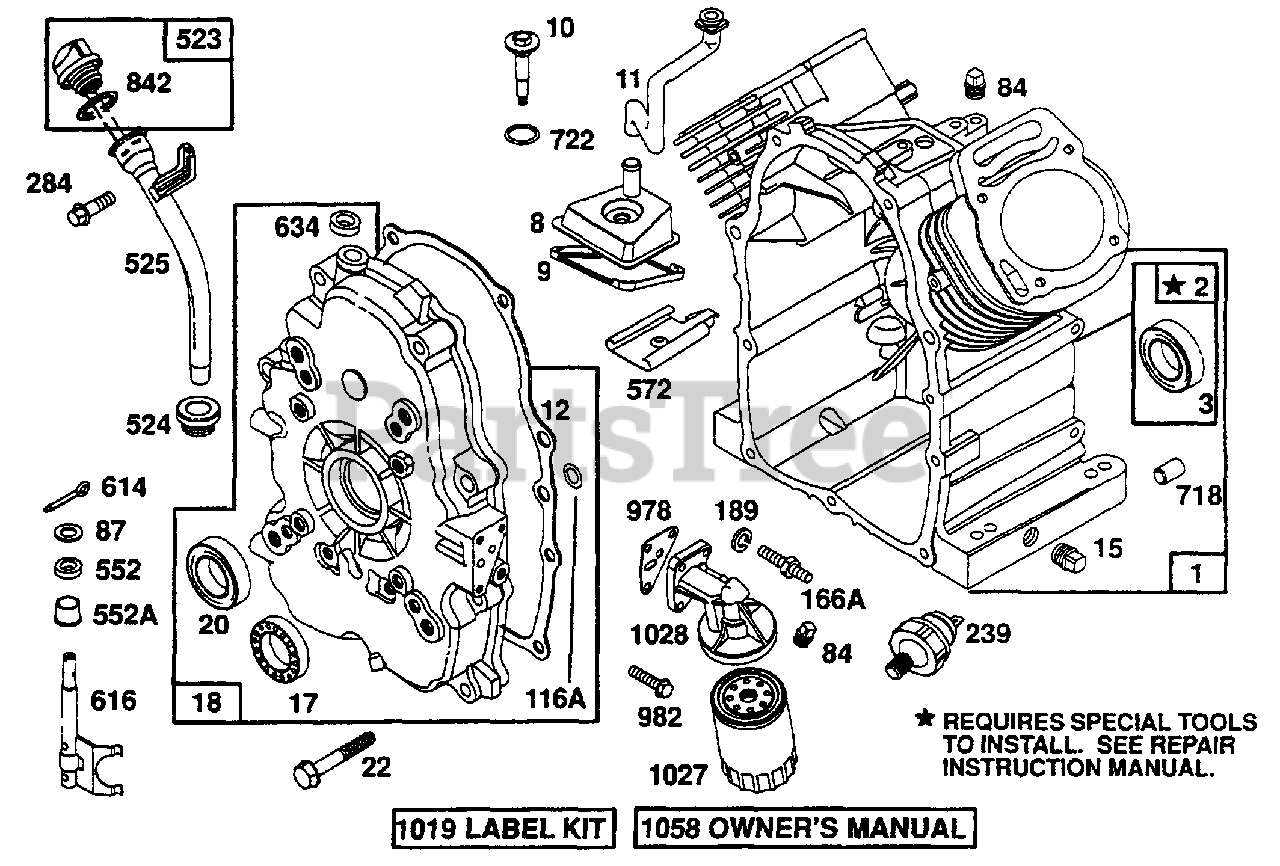

Cylinder & Crankcase Assembly Parts Diagram

  • Title

1

Briggs & Stratton 807786

Cylinder Assembly
(Superseded to 690903)

$657.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 805107

Bushing
(Superseded to 807687)

$

$

Not available

3

Briggs & Stratton 805101

Seal-Oil
(Superseded to 805101S)

Note: Included in Gasket Set - Part No. 808248

$5.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 807795

Breather Assembly
(Superseded to 808988)

$38.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 805379

Gasket-Breather
(Superseded to 844986)

Note: Included in Gasket Set - Part No. 808248

$8.49

$

In Stock, Qty 7

0

10

Briggs & Stratton 805751

Screw
(Superseded to 690751)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 806006

Tube-Breather
(Superseded to 691535)

$45.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 805112

Gasket-Crankcase
(Superseded to 845254)

Note: Included in Gasket Set - Part No. 808248

$45.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 805048

Plug-Oil Drain
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

17

Briggs & Stratton 806018

Bearing-Ball
(Superseded to 843827)

$36.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 808214

Cover-Crankcase
(Superseded to 844588)

$247.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049

Seal-Oil
(Superseded to 805049S)

Note: Included in Gasket Set - Part No. 808248

$12.99

$

In Stock, Qty 11

0

22

Briggs & Stratton 805652

Screw-Crankcase Cover
(Superseded to 807362)

$3.49

$

In Stock, Qty 7

0

84

Briggs & Stratton 805059

Plug-Pipe
(Superseded to 794903)

$5.49

$

In Stock, only 1 left!

0

87

Briggs & Stratton 805054

Seal-Governor Shaft
(Superseded to 842826)

$7.99

$

In Stock, only 1 left!

0

116A

Briggs & Stratton 805198

O-Ring

Note: Included in Gasket Set - Part No. 808248

$4.99

$

Usually ships in 2-12 days

0

166A

Briggs & Stratton 805073

Stud-Oil Filter Adapter
(Superseded to 690682)

$4.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 805449

Lockwasher
(Superseded to 690706)

$3.99

$

In Stock, only 2 left!

0

239

Briggs & Stratton 491657

Switch-Oil Pressure
(Superseded to 491657S)

$31.99

$

In Stock, only 1 left!

0

284

Briggs & Stratton 805177

Screw-Hex. Hd.
(Superseded to 692062)

$3.49

$

In Stock, only 3 left!

0

523

Briggs & Stratton 807977

Cap-Oil Fill
(Superseded to 846409)

$33.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 805259

Seal-Fill Tube
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 807584

Tube-Oil Fill
(Superseded to 690897)

$26.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 805412

Bushing-Crank
(Superseded to 690701)

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 805413

Bushing-Crank
(Superseded to 806686)

$8.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 805197

Baffle-Breather
(Superseded to 690686)

$14.99

$

In Stock, only 1 left!

0

614

Briggs & Stratton 805417

Pin-Cotter
(Superseded to 691550)

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 807596

Crank-Governor

$

$

Not available

634

Briggs & Stratton 805416

Washer-Shaft
(Superseded to 690704)

Note: Included in Gasket Set - Part No. 808248

$5.99

$

In Stock, only 4 left!

0

718

Briggs & Stratton 805103

Dowel-Crankcase
(Superseded to 806469)

$5.99

$

In Stock, only 2 left!

0

722

Briggs & Stratton 805483

Seal - Breather Screw
(Superseded to 844986)

Note: Included in Gasket Set - Part No. 808248

$8.49

$

In Stock, Qty 7

0

842

Briggs & Stratton 805386

Seal-Cap
(Superseded to 690611)

$7.49

$

In Stock, only 1 left!

0

978

Briggs & Stratton 805250

Gasket
(Superseded to 692063)

Note: Included in Gasket Set - Part No. 808248

$4.49

$

In Stock, only 3 left!

0

982

Briggs & Stratton 805030

Screw-Sem
(Superseded to 690679)

$3.49

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 808158

Label Kit

$45.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 491056

Filter-Oil

$9.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 805292

Adapter - Filter
(Superseded to 808235)

$78.99

$

Usually ships in 2-12 days

0

1028

Briggs & Stratton 807755

Adapter - Filter
(Superseded to 808033)

Note: (For Horizontal Mounted Oil Filter)

$112.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272984

Owner's Manual

$5.99

$

Usually ships in 2-12 days

0
