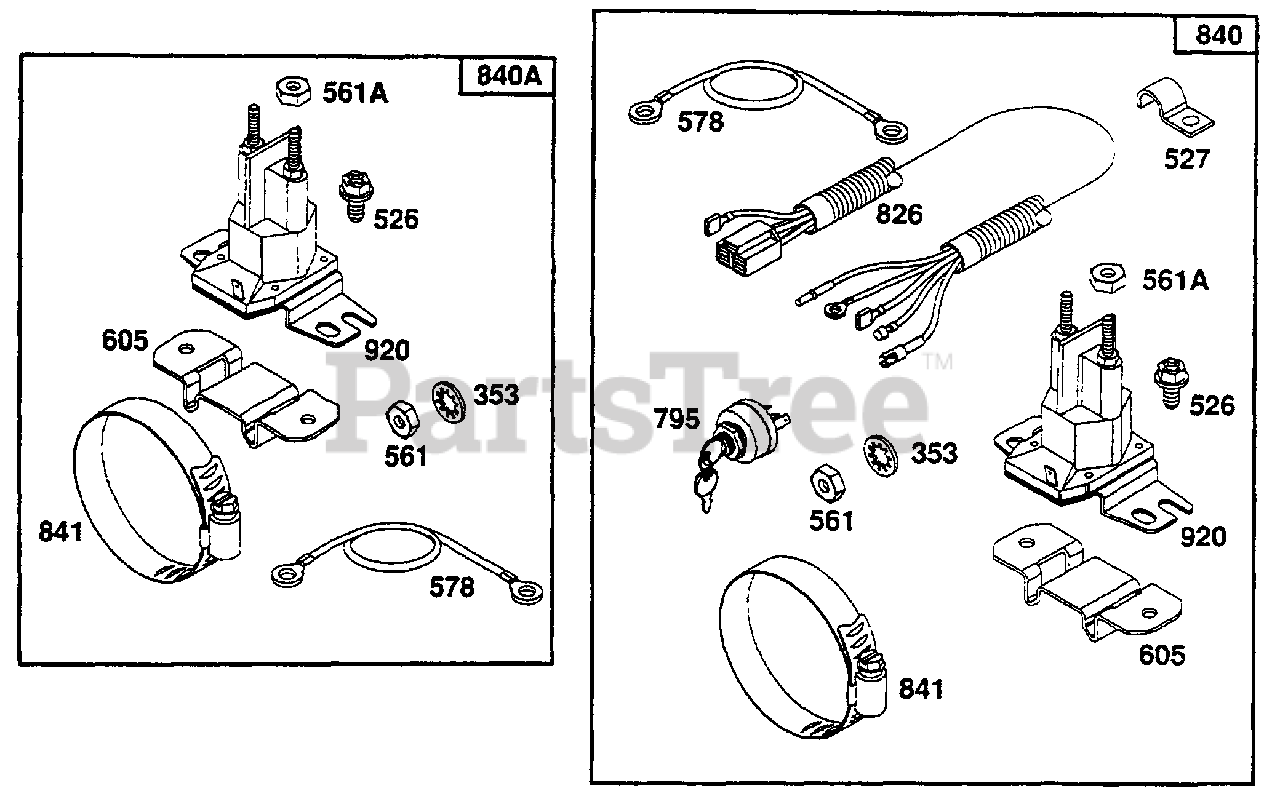

580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Solenoid & Switch Parts Diagram

10,000 Watt Portable Generator

Solenoid & Switch Parts Diagram

  • Title

353

Briggs & Stratton 92791

Washer-Lock
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 805448

Screw-Mtg.
(Superseded to 692067)

$3.99

$

In Stock, Qty 11

0

527

Briggs & Stratton 223167

Clamp-Wire
(Superseded to 690423)

$4.99

$

Usually ships in 2-12 days

0

561

Briggs & Stratton 90576

Nut-Hex
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

561A

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 493623

Wire Assembly
(Superseded to 690795)

$18.99

$

In Stock, only 1 left!

0

605

Briggs & Stratton 222934

Bracket-Support
(Superseded to 691177)

$24.99

$

Usually ships in 2-12 days

0

795

Briggs & Stratton 493625

Switch-Stop
(Superseded to 692318)

Note: Include(s): 392832 Key Set

$29.99

$

Usually ships in 2-12 days

0

795

Briggs & Stratton 392832

Key Set
(Superseded to 691959)

$7.99

$

In Stock, Qty 9

0

826

Briggs & Stratton 493624

Harness-Wiring
(Superseded to 691996)

$44.99

$

Usually ships in 2-12 days

0

840

Briggs & Stratton 807947

Kit-Panel

$

$

Currently unavailable

840A

Briggs & Stratton 808126

Kit-Panel

$

$

Currently unavailable

841

Briggs & Stratton 393514

Clamp
(Superseded to 690635)

$24.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 807829

Solenoid - Starter
(Superseded to 691656)

$31.99

$

In Stock, Qty 12

0
