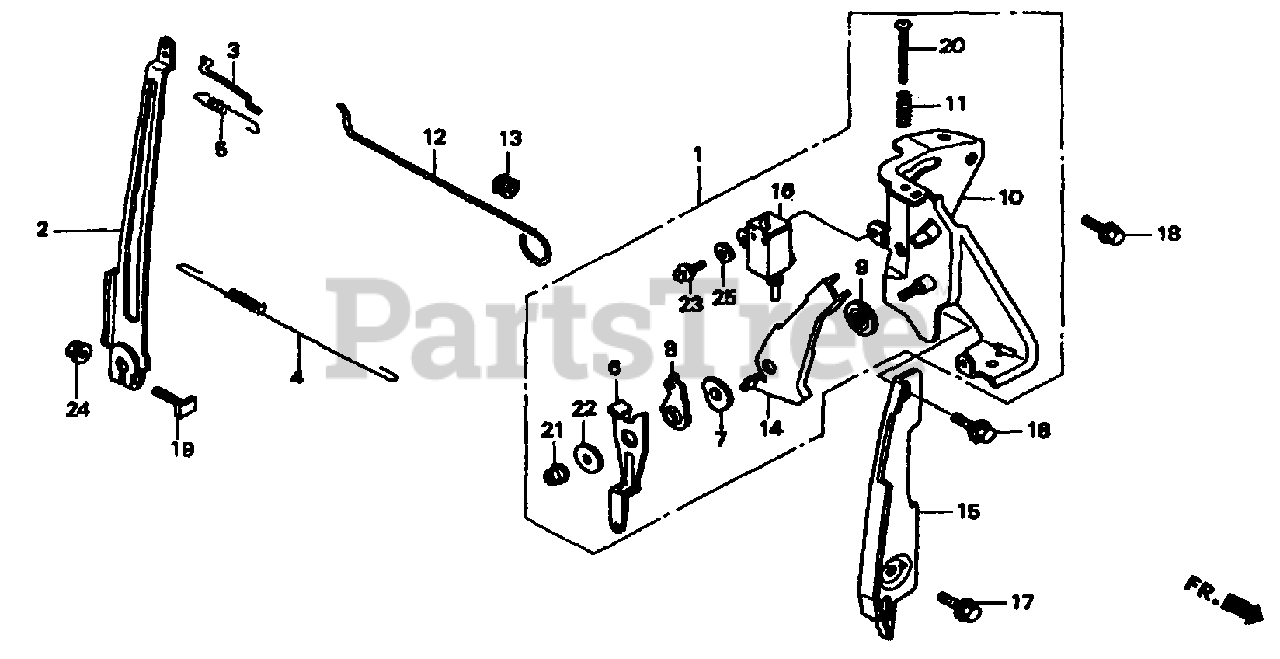

580.327750 (1170-0) - Craftsman 2,500 Watt Portable Generator Control 3 Parts Diagram

2,500 Watt Portable Generator

Control 3 Parts Diagram

  • Title

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Briggs & Stratton 16562ZL8000

SPRING, THROTTLE RETURN

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

8

Briggs & Stratton 16575ZL8800

WASHER, CONTROL LEVER

$

$

Currently unavailable

9

Briggs & Stratton 16578ZE1000

SPACER, CONTROL LEVER

$

$

Currently unavailable

10

Briggs & Stratton 16580ZL8000

BASE COMP., CONTROL

$

$

Currently unavailable

11

Briggs & Stratton 16584883300

SPRING, CONTROL ADJUSTING

$

$

Currently unavailable

12

Briggs & Stratton 16611ZL8000

ROD, CHOKE CONTROL

$

$

Currently unavailable

13

Briggs & Stratton 16613893000

GROMMET, CHOKE ROD

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

16

Briggs & Stratton 35120ZL8003

SWITCH ASSY., ENGINE STOP (N.0)

$

$

Currently unavailable

17

Briggs & Stratton 90013883000

BOLT, FLANGE (6 X 12)

$

$

Currently unavailable

18

Briggs & Stratton 90014952000

BOLT, FLANGE (6 X 14)

$

$

Currently unavailable

19

Briggs & Stratton 90015ZE5010

BOLT, GOVERNOR ARM

$

$

Currently unavailable

$

$

Currently unavailable

21

Briggs & Stratton 90114SA0000

NUT, SELF-LOCK (6MM)

$

$

Currently unavailable

22

Briggs & Stratton 90563355000

WASHER, WHEEL (6MM)

$

$

Currently unavailable

23

Briggs & Stratton 938920401200

SCREW-WASHER (4 X 12)

$

$

Currently unavailable

24

Briggs & Stratton 9405006000

NUT, FLANGE (6MM)

$

$

Currently unavailable

25

Briggs & Stratton 9410304000

WASHER, PLAIN (4MM)

$

$

Currently unavailable
