580.328340 (8847-0) - Craftsman 3,600 Watt Portable Generator Kawasaki 7 Horsepower Engine Parts Diagram

3,600 Watt Portable Generator

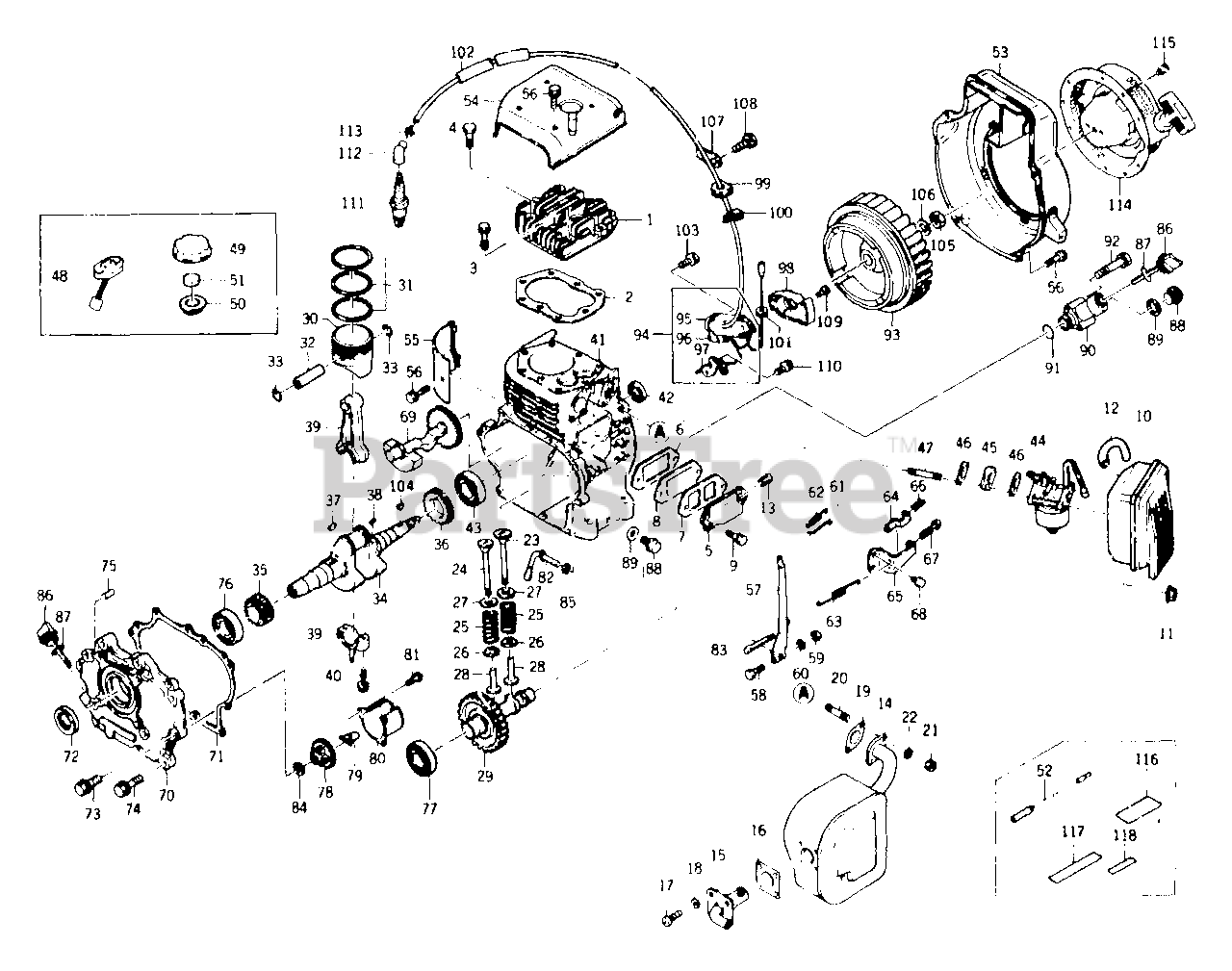

Kawasaki 7 Horsepower Engine Parts Diagram

  • Title

1

Briggs & Stratton 10065189

HEAD, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 10165189

GASKET, Cylinder Head

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 10265189

BOLT, Cylinder Head

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 10365189

BOLT (10 x 45)

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 10465189

COVER, Inspection

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 10565189

GASKET
(Superseded to 10565189GS)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 10665189

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 10765189

BREATHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 10865189

BOLT (6 x 12)
(Superseded to 10865189GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 10965189

CLEANER ASSEMBLY, Air

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 11065189

NUT

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 11165189

TUBE

Note: Contact Generac for quantity required

$

$

Not available

13

Briggs & Stratton 11265189

PIPE

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 66399

MUFFLER ASSEMBLY, Exhaust

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 11365189

ARRESTER, Spark

Note: Contact Generac for quantity required

$

$

Not available

16

Briggs & Stratton 11465189

GASKET

Note: Contact Generac for quantity required

$

$

Not available

17

Briggs & Stratton 11565189

SCREW

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 11865189

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 11765189

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 11865189

STUD

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 11965189

NUT (8mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 12065189

WASHER, Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 12165189

VALVE, Intake

Note: Contact Generac for quantity required

$

$

Not available

24

Briggs & Stratton 12265189

VALVE, Exhaust

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 12365189

SPRING, Valve
(Superseded to 12365189GS)

Note: Contact Generac for quantity required

$7.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 12465189

SEAT, Spring

Note: Contact Generac for quantity required

$

$

Not available

27

Briggs & Stratton 12565189

SEAT, Spring

Note: Contact Generac for quantity required

$

$

Not available

28

Briggs & Stratton 12665189

TAPPET

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 12765189

GEAR, Cam

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 12865189

PISTON (Standard)

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 12965189

PISTON (0.25mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 13065189

PISTON (0.50mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 13165189

SET, Piston Ring (Standard)

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 13265189

SET, Piston Ring (0.25mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 13365189

SET, Piston Ring (0.50mm OS)

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 13465189

PIN, Piston

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 13565189

RING, Snap

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 13665189

SHAFT ASSEMBLY, Crank
(Superseded to 13665189GS)

Note: Contact Generac for quantity required

$558.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 13765189

GEAR, Crank

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 13865189

GEAR, Balancer

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 13965189

KEY

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 14065189

KEY

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 14165189

ROD ASSEMBLY, Connecting

Note: Contact Generac for quantity required

$

$

Not available

40

Briggs & Stratton 14265189

BOLT, Connecting Rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 14365189

CRANKCASE (Complete)

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 14465189

SEAL, Oil

Note: Contact Generac for quantity required

$

$

Not available

43

Briggs & Stratton 14565189

BEARING, Ball (6206)

Note: Contact Generac for quantity required

$

$

Currently unavailable

44

Briggs & Stratton 14665189

CARBURETOR ASS'Y

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 14765189

INSULATOR

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 14865189

GASKET

Note: Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 14965189

STUD
(Superseded to 14965189GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 66391B

GAUGE, Fuel Level

Note: Contact Generac for quantity required

$

$

Not available

49

Briggs & Stratton 66802A

CAP, Fuel Tank

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 66802C

GASKET, Fuel Tank Cap
(Superseded to 66802CGS)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 66802B

BREATHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 15065189

WIRE,

Note: Contact Generac for quantity required

$

$

Currently unavailable

53

Briggs & Stratton 15165189

HOUSING, Fan

Note: Contact Generac for quantity required

$

$

Not available

54

Briggs & Stratton 15265189

SHROUD

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 15365189

COVER, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 10865189

BOLT (6 x 12)
(Superseded to 10865189GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 15565189

ARM, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 15665189

BOLT (6 x 30)

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 15765189

NUT (6 mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

60

Briggs & Stratton 15865189

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

61

Briggs & Stratton 15965189

LINK, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

62

Briggs & Stratton 16065189

SPRING, Link

Note: Contact Generac for quantity required

$

$

Currently unavailable

63

Briggs & Stratton 16165189

SPRING, Governor

Note: Contact Generac for quantity required

$

$

Not available

64

Briggs & Stratton 16265189

HOOK

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 16365189

BRACKET

Note: Contact Generac for quantity required

$

$

Not available

66

Briggs & Stratton 16465189

SPRING

Note: Contact Generac for quantity required

$

$

Not available

67

Briggs & Stratton 16565189

SCREW (4 x 25)

Note: Contact Generac for quantity required

$

$

Currently unavailable

68

Briggs & Stratton 10865189

BOLT (6 x 12)
(Superseded to 10865189GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 16765189

BALANCER, Dynamic

Note: Contact Generac for quantity required

$

$

Not available

70

Briggs & Stratton 16865189

COVER, Crank Case (Complete)

Note: Contact Generac for quantity required

$

$

Not available

71

Briggs & Stratton 16965189

GASKET

Note: Contact Generac for quantity required

$

$

Not available

72

Briggs & Stratton 17065189

SEAL, Oil

Note: Contact Generac for quantity required

$

$

Not available

73

Briggs & Stratton 17165189

BOLT (8 x 28)

Note: Contact Generac for quantity required

$

$

Currently unavailable

74

Briggs & Stratton 17265189

BOLT (8 x 35)

Note: Contact Generac for quantity required

$

$

Currently unavailable

75

Briggs & Stratton 17365189

PIN, Dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

76

Briggs & Stratton 17465189

BEARING, Ball (6206)

Note: Contact Generac for quantity required

$

$

Currently unavailable

77

Briggs & Stratton 17565189

BEARING, Ball (6204)

Note: Contact Generac for quantity required

$

$

Currently unavailable

78

Briggs & Stratton 17665189

GOVERNOR ASSEMBLY

Note: Contact Generac for quantity required

$

$

Currently unavailable

79

Briggs & Stratton 17765189

SLEEVE, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

80

Briggs & Stratton 17865189

COVER

Note: Contact Generac for quantity required

$

$

Currently unavailable

81

Briggs & Stratton 17965189

SCREW
(Superseded to 17965189GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 18065189

TIP, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

83

Briggs & Stratton 18165189

PIN Snap

Note: Contact Generac for quantity required

$

$

Not available

84

Briggs & Stratton 18265189

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

85

Briggs & Stratton 18365189

WASHER

Note: Contact Generac for quantity required

$

$

Currently unavailable

86

Briggs & Stratton 18465189

GAUGE, Oil Level

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 18565189

O-RING

Note: Contact Generac for quantity required

$

$

Not available

88

Briggs & Stratton 18665189

PLUG, Drain

Note: Contact Generac for quantity required

$

$

Currently unavailable

89

Briggs & Stratton 18765189

GASKET

Note: Contact Generac for quantity required

$

$

Not available

90

Briggs & Stratton 18965189

ELBOW

Note: Contact Generac for quantity required

$

$

Not available

91

Briggs & Stratton 18965189

O-RING

Note: Contact Generac for quantity required

$

$

Not available

92

Briggs & Stratton 19065189

BOLT (6 x 40)

Note: Contact Generac for quantity required

$

$

Currently unavailable

93

Briggs & Stratton 19165189

FLYWHEEL (Complete)

Note: Contact Generac for quantity required

$

$

Currently unavailable

94

Briggs & Stratton 19265189

COIL ASSEMBLY, Ignition

Note: Contact Generac for quantity required

$

$

Not available

95

Briggs & Stratton 19365189

COIL, Ignition

Note: Contact Generac for quantity required

$

$

Currently unavailable

96

Briggs & Stratton 19465189

CONDENSOR

Note: Contact Generac for quantity required

$

$

Not available

97

Briggs & Stratton 19565189

BREAKER

Note: Contact Generac for quantity required

$

$

Currently unavailable

98

Briggs & Stratton 19665189

COVER, Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

99

Briggs & Stratton 19765189

GROMMET

Note: Contact Generac for quantity required

$

$

Currently unavailable

100

Briggs & Stratton 19865189

GROMMET

Note: Contact Generac for quantity required

$

$

Currently unavailable

101

Briggs & Stratton 19965189

GROMMET

Note: Contact Generac for quantity required

$

$

Currently unavailable

102

Briggs & Stratton 20065189

TUBE

Note: Contact Generac for quantity required

$

$

Currently unavailable

103

Briggs & Stratton 20165189

BOLT (6 x 25)

Note: Contact Generac for quantity required

$

$

Currently unavailable

104

Briggs & Stratton 20265189

KEY

Note: Contact Generac for quantity required

$

$

Currently unavailable

105

Briggs & Stratton 20365189

NUT (14 mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

106

Briggs & Stratton 20465189

WASHER

Note: Contact Generac for quantity required

$

$

Not available

107

Briggs & Stratton 20565189

CLAMP

Note: Contact Generac for quantity required

$

$

Currently unavailable

108

Briggs & Stratton 20665189

BOLT (6 x 12)

Note: Contact Generac for quantity required

$

$

Currently unavailable

109

Briggs & Stratton 20765189

SCREW (4 x 20)

Note: Contact Generac for quantity required

$

$

Currently unavailable

110

Briggs & Stratton 20865189

SCREW (4 x 10)

Note: Contact Generac for quantity required

$

$

Currently unavailable

111

Briggs & Stratton 20965189

SPARK PLUG

Note: Contact Generac for quantity required

$

$

Currently unavailable

112

Briggs & Stratton 21065189

CAP, Plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

113

Briggs & Stratton 21165189

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

114

Briggs & Stratton 21265189

STARTER ASSEMBLY, Recoil

Note: Contact Generac for quantity required

$

$

Not available

115

Briggs & Stratton 21365189

BOLT (6 x 12)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116

Briggs & Stratton 21465189

DECAL

Note: Contact Generac for quantity required

$

$

Currently unavailable

117

Briggs & Stratton 21565189

DECAL

Note: Contact Generac for quantity required

$

$

Currently unavailable

118

Briggs & Stratton 21665189

DECAL

Note: Contact Generac for quantity required

$

$

Not available
