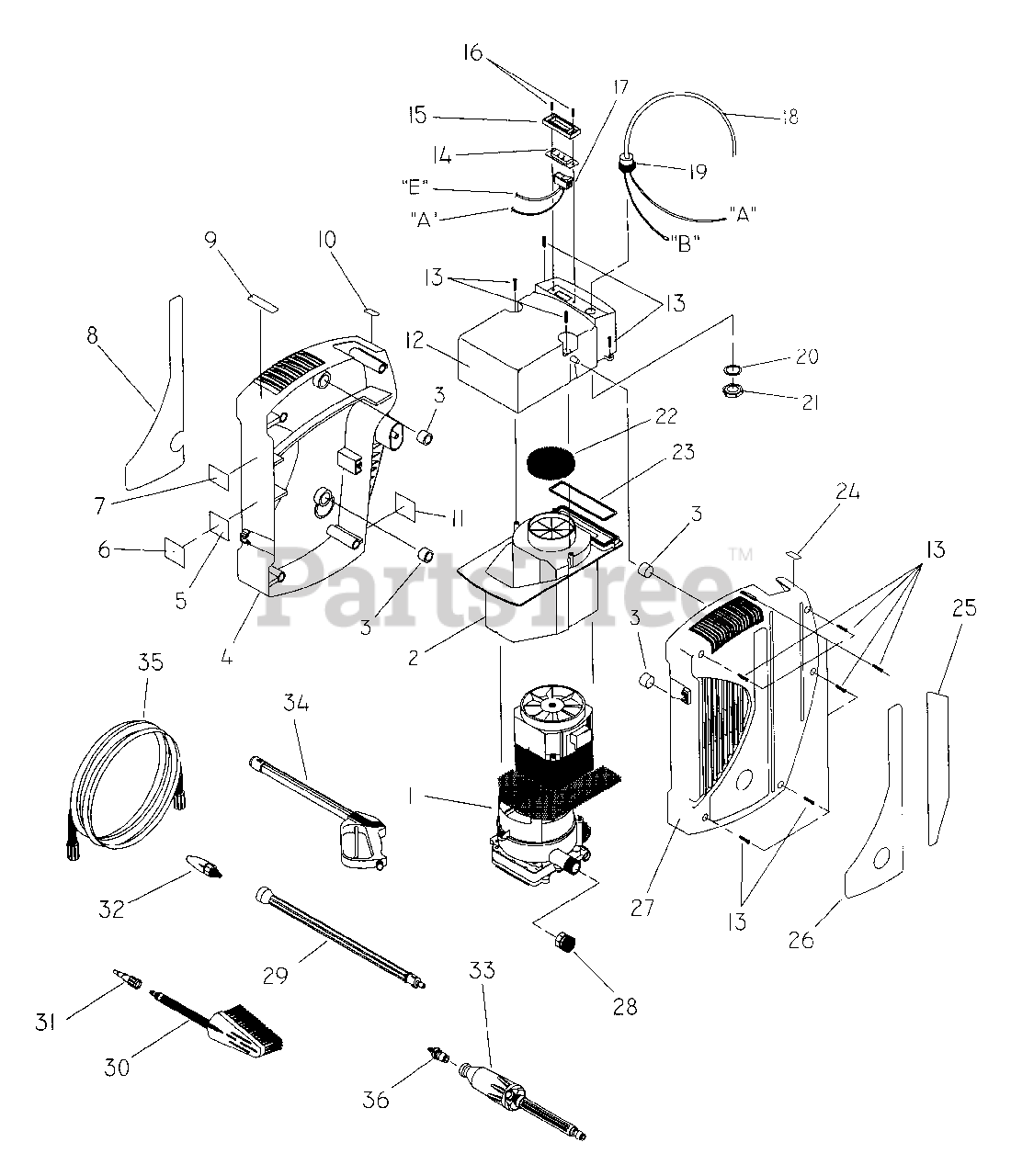

580.679142 (1136-2) - Craftsman 1,300 PSI Pressure Washer, Canada Pump & Motor Assy., Housings, Peripherals Parts Diagram

1,300 PSI Pressure Washer, Canada

Pump & Motor Assy., Housings, Peripherals Parts Diagram

  • Title

1

ASSY., Pump & Motor

Note: (N/A; See "Motor Assembly" illustration and parts list)

$

$

Not available

2

Briggs & Stratton B1566

HOUSING, Motor Cover

$

$

Not available

3

Briggs & Stratton 98801

VIBRATION, Mount
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 97695

HOUSING, Outlet

$

$

Not available

5

DECAL, Data

Note: NON SERVICEABLE PART

$

$

Not available

6

LAMINATE, Over

Note: NON SERVICEABLE PART

$

$

Not available

7

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3723

DECAL, Unit

$

$

Not available

9

Briggs & Stratton B3766

DECAL, 1-800 #

$

$

Currently unavailable

10

Briggs & Stratton B3417

DECAL, Branch Circuit

$

$

Currently unavailable

11

Briggs & Stratton B2214

DECAL, Potable Water
(Superseded to B2214GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84358

SCREW, #6 - 19 x .75" Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch, Boot
(Superseded to 5020985)

$

$

Not available

16

Briggs & Stratton 84543B

PPPHS, 3.5 mm x 12 mm
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 20984

SWITCH, Rocker

$

$

Not available

18

Briggs & Stratton 98805

CORD, Power 35 Ft.

$

$

Not available

19

Briggs & Stratton 99349

CORD, Strain Relief
(Superseded to 99349GS)

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton A1485

SEAL, Ring Strain Relief

$

$

Not available

21

Briggs & Stratton A1484

LOCK NUT, Strain Relief
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 21125

"O" RING, Dia. 25.07 ID x 2.62 CS [.103"]
(Superseded to 21125GS)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B1415

DECAL, Branch Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B1285

DECAL, CSA Instruction
(Superseded to B1285GS)

$4.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1277

DECAL, Warning Electric PW CSA
(Superseded to B1277GS)

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97694

HOUSING, Inlet
(Superseded to 97694GS)

$40.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 21337

EXTENSION, Lance
(Superseded to 21337GS)

$32.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 88185

BRUSH, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1051

ADAPTER, Accessories
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B1300D

NOZZLE, Turbo
(Superseded to B1300DGS)

$24.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2390

FORMER, In-Line
(Superseded to B2390GS)

$46.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 21336

GUN, Spray

$

$

Currently unavailable

35

Briggs & Stratton B3337

HOSE, High Pressure

$

$

Currently unavailable

36

Briggs & Stratton B2433

NOZZLE, In-Line Foamer
(Superseded to B2433GS)

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: (Optional Accessories, Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: (Optional Accessories, Not Illustrated)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176430

Broom Brush

Note: (Optional Accessories, Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7175116

O-Ring Repair Kit
(Superseded to 196002GS)

Note: (Optional Accessories, Not Illustrated)

$18.99

$

In Stock, only 4 left!

0

Briggs & Stratton 7176403

Degreaser

Note: (Optional Accessories, Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176402

Vehicle/Boat Wash

Note: (Optional Accessories, Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176400

House Multi Purpose Wash

Note: (Optional Accessories, Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176401

Deck Wash

Note: (Optional Accessories, Not Illustrated)

$

$

Currently unavailable
