580.751410 (0583-0) - Craftsman 1,200 PSI Pressure Washer Pressure Washer Parts Diagram

1,200 PSI Pressure Washer

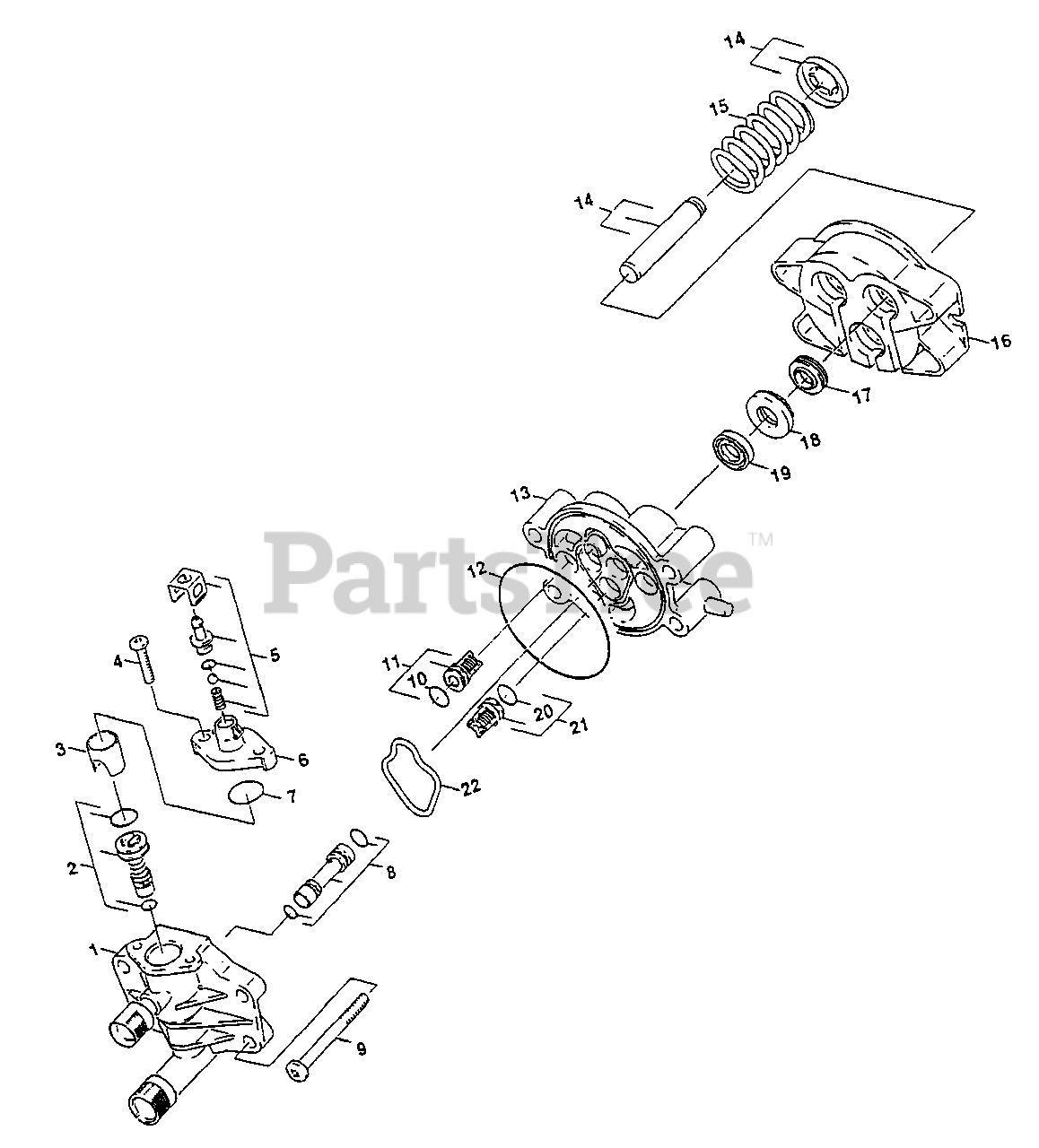

Pressure Washer Parts Diagram

  • Title

1

Briggs & Stratton 96160

HOUSING

$

$

Not available

2

SPILL VALVE

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

3

SLEEVE

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

4

Briggs & Stratton 96161

SELF-TAPPING SCREW

$

$

Currently unavailable

5

Briggs & Stratton 96162

SPARE PARTS KIT
(Superseded to 96162GS)

$44.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 96163

PUMP COVER

$

$

Currently unavailable

7

19.3 x 2.4mm O-RING

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

8

Briggs & Stratton 94304

NOZZLE INSERT
(Superseded to 94304GS)

$36.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 96164

OVAL HEAD SCREW

$

$

Not available

10

Briggs & Stratton 94302

10 x 2.5mm 0-RING

$

$

Currently unavailable

11

VALVE

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

12

76 x 2mm 0-RING

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

13

Briggs & Stratton 96165

LINDER HEAD
(Superseded to 96165GS)

$76.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 94303

PISTON

$

$

Currently unavailable

15

Briggs & Stratton 94305

HELICAL SPRING
(Superseded to 692125)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 96166

HOUSING

$

$

Currently unavailable

17

Briggs & Stratton 94306

GROOVED RING
(Superseded to 94306GS)

$11.99

$

Usually ships in 2-12 days

0

18

WASHER

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

19

GROOVED RING

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

20

O-RING

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

21

PRESSURE VALVE

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available

22

GASKET

Note: Part is included with pump repair kit (Part No. 94301)

$

$

Not available
