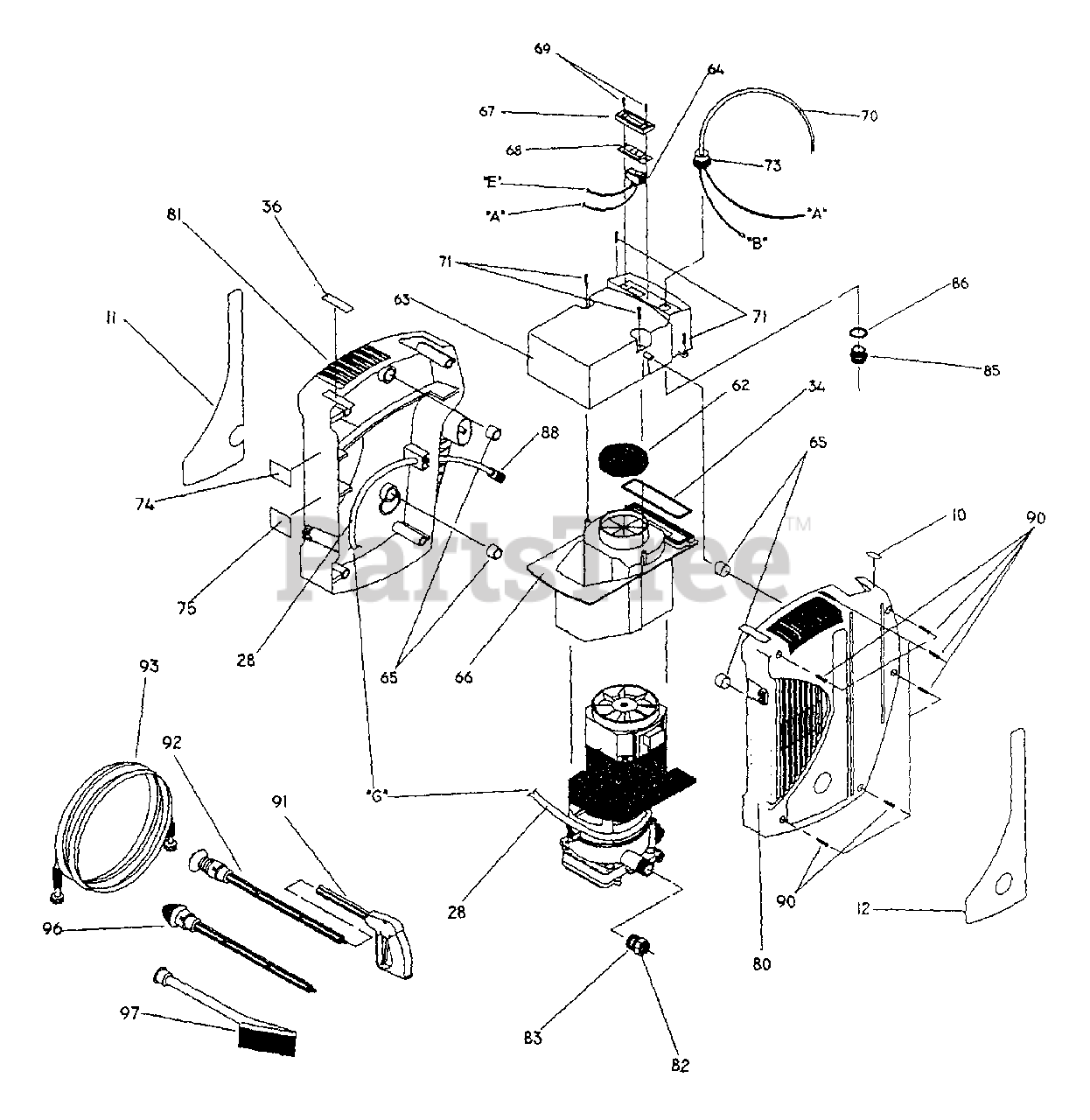

580.760210 (0762-0) - Craftsman 1,300 PSI Pressure Washer Motor Assembly - Complete Parts Diagram

1,300 PSI Pressure Washer

Motor Assembly - Complete Parts Diagram

  • Title

10

Briggs & Stratton 96462

Decal, Circuit

$

$

Currently unavailable

11

Briggs & Stratton A1128

Decal, Unit
(Superseded to A1128GS)

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 21318

Decal, Instructions

$

$

Currently unavailable

28

Briggs & Stratton A1040

Hose, Chem

$

$

Currently unavailable

34

Briggs & Stratton 97835

"O" Ring, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 3 left!

0

36

Briggs & Stratton 96307

Decal, 800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 98806

Foam, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 97893

Housing, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 20984

Switch, Rocker 16A

$

$

Not available

65

Briggs & Stratton 98801

Mount, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 97892

Cover, Motor

$

$

Currently unavailable

67

Briggs & Stratton 20985

Enclosure, Rocker Switch, Boot
(Superseded to 5020985)

$

$

Not available

68

Briggs & Stratton 20986

Boot, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 84543B

Plastite 3.5mm x 12mm
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 98805

Cord, Power

$

$

Not available

71

Briggs & Stratton 84358

Plastite &-19 x .75mm
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 99349

Relief, Strain Cord
(Superseded to 99349GS)

$10.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton B1053

ETL Decal
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton B1052

Data Decal

$

$

Currently unavailable

80

Briggs & Stratton 97694

Housing, inlet
(Superseded to 97694GS)

$40.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 97695

Housing, Outlet

$

$

Not available

82

Briggs & Stratton 21781

Quick Disconnect, Male

$

$

Not available

83

Briggs & Stratton 21782

Quick Disconnect, Female

$

$

Not available

85

Briggs & Stratton A1484

Lock Nut, Strain Relief
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton A1485

Seal Ring, Strain Relief

$

$

Not available

88

Briggs & Stratton A1041

Filter, Chem Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

90

Briggs & Stratton 99350

Screw #6 Plastite
(Superseded to 99350GS)

$3.49

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 97809

Spray Gun
(Superseded to 97809GS)

$102.99

$

Usually ships in 2-12 days

0

92

Briggs & Stratton 95602A

Wand Extension
(Superseded to 95602AGS)

$43.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 21779

High Pressure Hose

$

$

Currently unavailable

94

Briggs & Stratton 97100

Cap, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton A1408

Cap, Inlet
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

96

Briggs & Stratton A2417

Nozzle, Turbo

$

$

Currently unavailable

97

Briggs & Stratton 88185

Brush, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 21317

Owner's Manual
(Superseded to 21317GS)

Note: (not shown)

$14.99

$

Usually ships in 2-12 days

0
