580.761800 (1050-0) - Craftsman 1,800 PSI Pressure Washer Starter Parts Diagram

1,800 PSI Pressure Washer

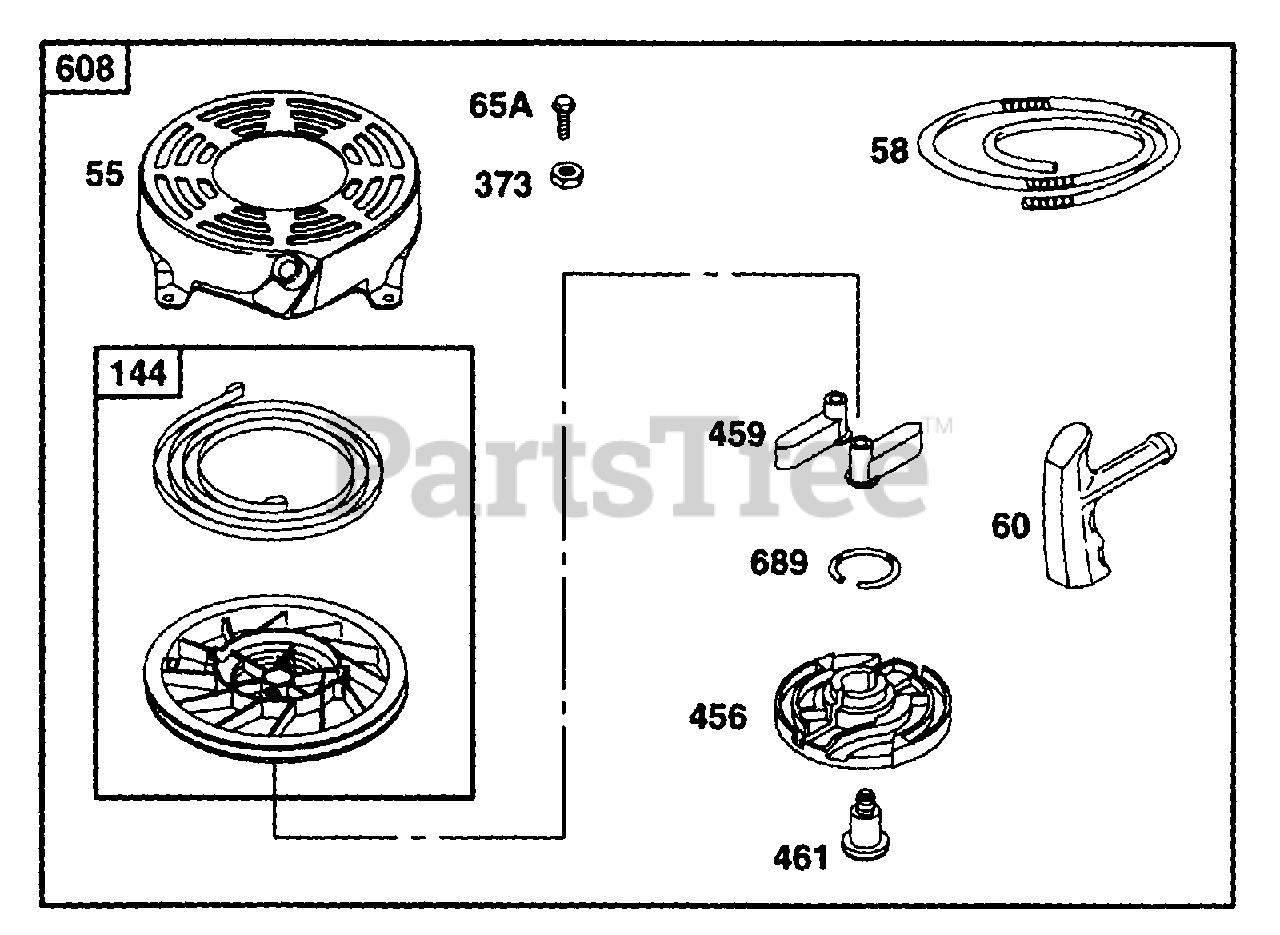

Starter Parts Diagram

  • Title
55

Briggs & Stratton 497440

Housing - Rewind Starter
(Superseded to 691421)

$64.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 280399

Rope - Starter (Cut To Required Length)
(Superseded to 280399S)

$5.99

$

In Stock, Qty 19

0

60

Briggs & Stratton 281434

Grip - Starter Rope
(Superseded to 281434S)

$3.99

$

In Stock, Qty 10

0

65A

Briggs & Stratton 94686

Screw - Hex.
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

144

Briggs & Stratton 498144

Pulley - Rope Start

$19.99

$

In Stock, only 2 left!

0

373

Briggs & Stratton 92987

Nut - Hex.
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

456

Briggs & Stratton 281503

Retainer - Spring
(Superseded to 692299)

$4.99

$

In Stock, Qty 20+

0

459

Briggs & Stratton 281505

Pawl - Ratchet
(Superseded to 281505S)

$3.49

$

In Stock, Qty 20+

0

461

Briggs & Stratton 94943

Screw - Shoulder
(Superseded to 691696)

$11.99

$

In Stock, only 4 left!

0

608

Briggs & Stratton 497680

Starter - Rewind

$49.99

$

In Stock, only 3 left!

0

689

Briggs & Stratton 263073

Spring - Friction
(Superseded to 691855)

$4.49

$

In Stock, Qty 7

0
