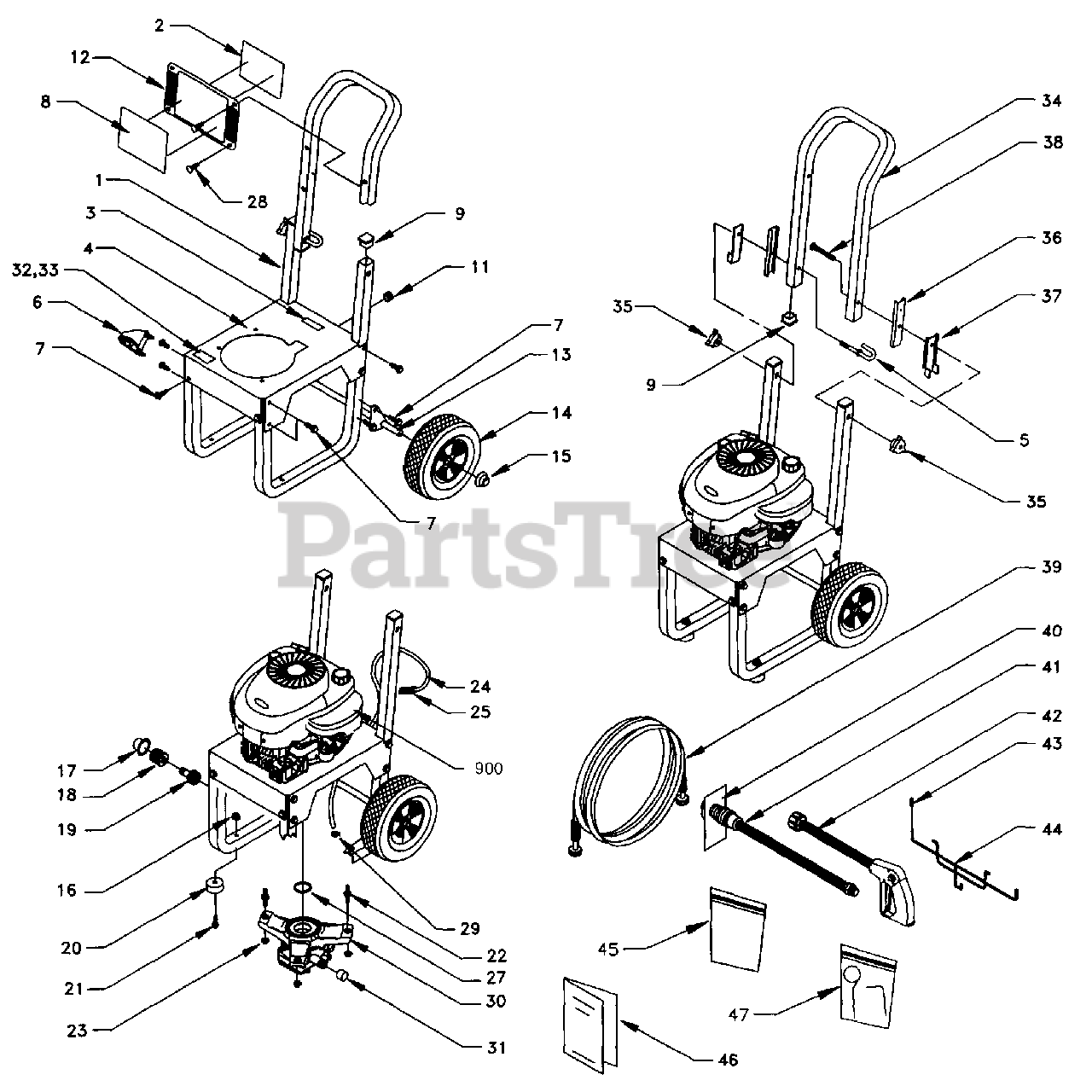

580.761810 (1055-0) - Craftsman 1,800 PSI Pressure Washer Handle & Body Parts Diagram

1,800 PSI Pressure Washer

Handle & Body Parts Diagram

  • Title

1

Briggs & Stratton D21416

LEG, VS PW

$

$

Currently unavailable

2

Briggs & Stratton B3220

DECAL, Instructions

$

$

Not available

3

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton DB1793

BASE, VSPW

$

$

Not available

5

Briggs & Stratton 97998

BOLT, Eye
(Superseded to 97998GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 97769

CUP, Gun
(Superseded to 97769GS)

$10.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 20441

SCREW, 1/4" - 14 Self Driller
(Superseded to 5020441)

$14.99

$

In Stock, Qty 8

0

8

Briggs & Stratton B3219

DECAL, Logo 1800 PSI

$

$

Currently unavailable

9

Briggs & Stratton 81895

CAP, Tubing 3/4" square
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 30809

GROMMET, Chem Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1786

BILLBOARD
(Superseded to B1786GS)

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 97741

ASSY, PW Axle
(Superseded to 97741GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 21206

TIRE, 2" X 8" Black Mag
(Superseded to 21206GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

16

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1408

CAP, Quick Disconnect
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 21782

QUICK DISCONNECT, Female

$

$

Not available

19

Briggs & Stratton 21781

QUICK DISCONNECT, Male

$

$

Not available

20

Briggs & Stratton 87841

MOUNT, Rubber Foot
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

21

Briggs & Stratton 39414

HHCS, M8 X 1.25 X 35 Long
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B1735

STUD, Double Ended
(Superseded to B1735GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B1880

NUT, with Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton B1797

FASTENER, Clip
(Superseded to B1797GS)

$3.99

$

In Stock, Qty 6

0

29

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

30

-----

ASSY, Pump EG w/ Thermal

Note: (For replacement, order 209940GS)

$

$

Not available

30

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

31

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91373

DECAL, Data

$

$

Currently unavailable

33

Briggs & Stratton 79552

OVERLAMINATE, Decal

$

$

Not available

34

Briggs & Stratton DB2157

HANDLE, VS PW

$

$

Not available

35

Briggs & Stratton 97178

KNOB, PW Handle
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 99368

PLATE, S.S. Wear
(Superseded to 99368GS)

$2.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 97082

CLIP, Holding Handle
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97912

BOLT, 1/4"-20 X 2.25" Carriage
(Superseded to 97912GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B1969

HOSE, 1/4" X 25'

$

$

Currently unavailable

40

Briggs & Stratton 97566

HANG TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 98317A

WAND, Adjustable Nozzle
(Superseded to 188792AGS)

$67.99

$

In Stock, only 3 left!

0

42

Briggs & Stratton 98541

GUN, High Pressure

$

$

Currently unavailable

43

Briggs & Stratton B1459

CAP, Vinyl Black

$

$

Not available

44

Briggs & Stratton 21208

WIREFORM
(Superseded to 5021208)

$3.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B2730

MAINTENANCE KIT
(Superseded to B2730GS)

$18.99

$

In Stock, only 4 left!

0

46

Briggs & Stratton B3217

MANUAL
(Superseded to B3217GS)

$14.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 97009

KIT, Cleaning Nozzle
(Superseded to 97009GS)

$7.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE, Tecumseh 5.0 HP Centura, 143.985012

$

$

Currently unavailable

--

Briggs & Stratton 7176485

Turbo Nozzle

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7176408

House Wash

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: Optional Accessories

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176430

Floor/Siding Brush

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7176431

Utility Brush

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7175115

25' 1/4" Replacement Hose

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7176450

25' 3/8" Extension Hose

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: Optional Accessories

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176401

Deck Wash

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7176402

Vehicle Wash

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7176403

Degreaser

Note: Optional Accessories

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories

$18.99

$

In Stock, only 4 left!

0

--

Briggs & Stratton 7176451

50' 3/8" Extension Hose

Note: Optional Accessories

$

$

Currently unavailable
