580.762012 (1054-3) - Craftsman 2,000 PSI Pressure Washer Crankcase Cover Parts Diagram

2,000 PSI Pressure Washer

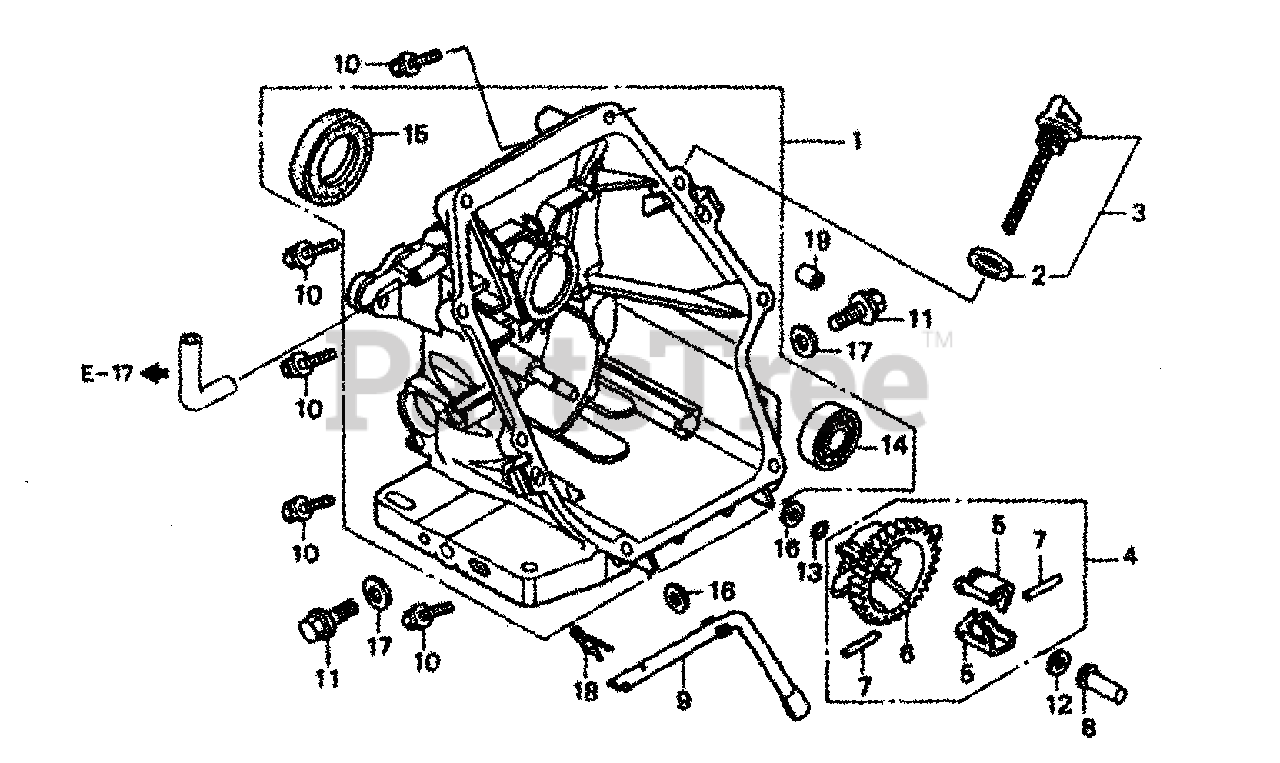

Crankcase Cover Parts Diagram

  • Title
1

Briggs & Stratton 11300ZL8600

Cover Assembly, Crankcase (Q-Type)

$

$

Currently unavailable

2

Briggs & Stratton 15625ZE1003

Gasket, Oil Filler Cap

$

$

Currently unavailable

3

Briggs & Stratton 15650ZL8003

Gauge Assembly, Oil Level

$

$

Currently unavailable

4

Briggs & Stratton 16510ZL8000

Governor Assembly

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Briggs & Stratton 16512ZL8000

Holder, Governor Weight

$

$

Currently unavailable

7

Briggs & Stratton 16513ZE1000

Pin, Governor Weight

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Briggs & Stratton 165421ZL8000

Shaft, Governor Arm

$

$

Currently unavailable

10

Briggs & Stratton 90121952000

Bolt, Flange (6 x 25)

$

$

Currently unavailable

11

$

$

Currently unavailable

11

$

$

Currently unavailable

11

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Briggs & Stratton 90451ZE1000

Washer, Thrust (6MM)

$

$

Currently unavailable

13

Briggs & Stratton 90602ZE1000

Clip, Governor Holder

$

$

Currently unavailable

14

Briggs & Stratton 91001ZL8003

Bearing, Radial Ball

$

$

Currently unavailable

15

Briggs & Stratton 91202ZL8003

Oil Seal (28 x 41.25 x 6)

$

$

Currently unavailable

16

Briggs & Stratton 9410106800

Washer, Plain (6MM)

$

$

Currently unavailable

17

Briggs & Stratton 9410912000

Washer, Drain Plug (12MM)

$

$

Currently unavailable

17

Briggs & Stratton 9410912000

Washer, Drain Plug (12MM)

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Briggs & Stratton 9430108200

Pin, Dowel (8 x 20)

$

$

Currently unavailable
