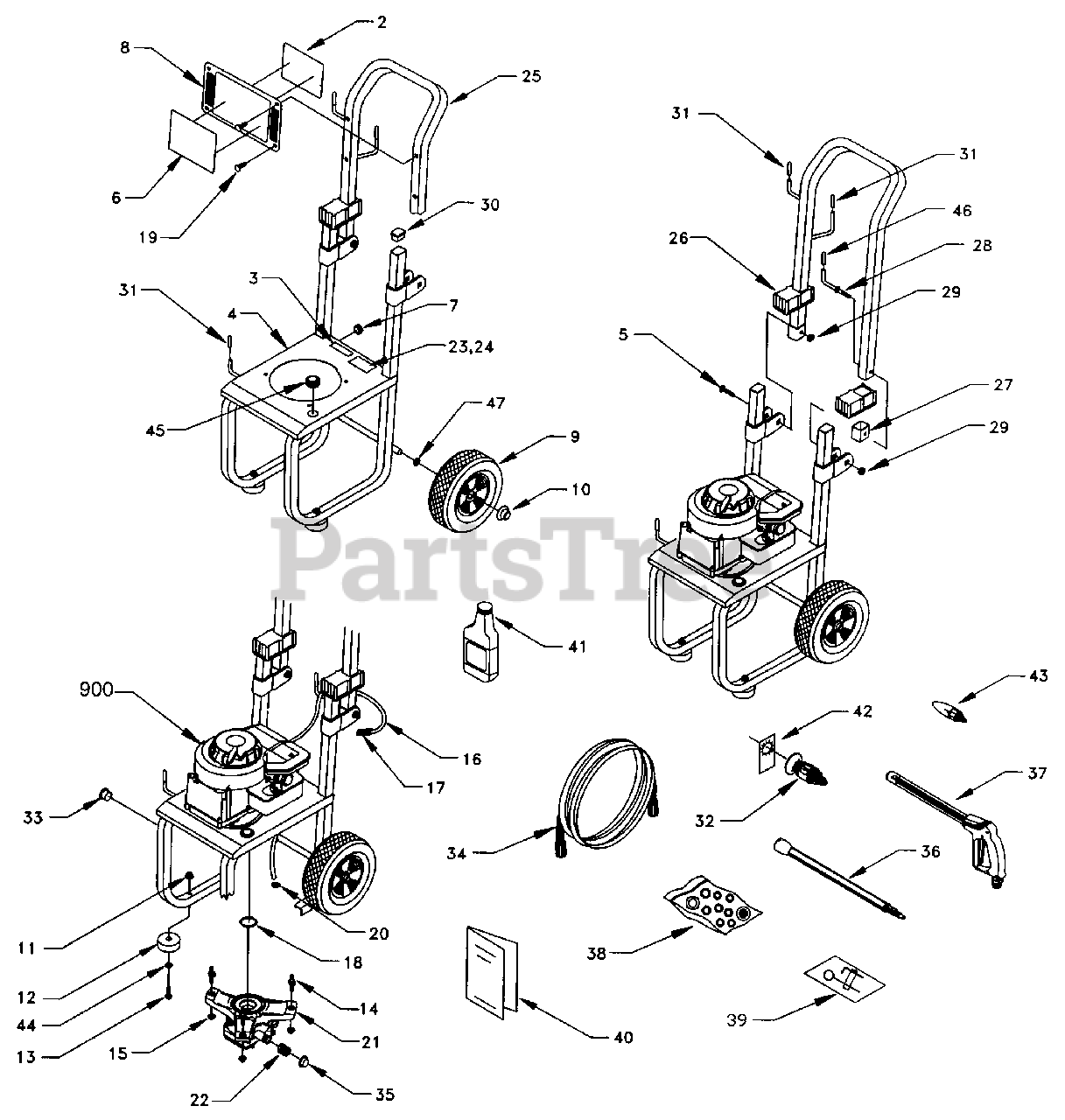

580.768000 (1058-0) - Craftsman 1,500 PSI Pressure Washer Main Unit Parts Diagram

1,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton B3220

DECAL, Instructions

$

$

Not available

3

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton DB3307A

BASE, Gray Powder Coated

$

$

Not available

5

Briggs & Stratton B3085

BOLT, Carriage 1/4-20 x 1.50
(Superseded to B3085GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3685

DECAL, 1800 PSI
(Superseded to B3685GS)

$12.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 30809

GROMMET, Chemical Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1786A

BILLBOARD
(Superseded to B1786AGS)

$20.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 21206

TIRE, 2" x 8" Black Mag
(Superseded to 21206GS)

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

11

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 27007

MOUNT, Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

13

Briggs & Stratton 57821

HHCS, M8 - 1.25 x 40

$

$

Not available

14

Briggs & Stratton B1735

STUD, Double Ended
(Superseded to B1735GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B1880

NUT, with Washer
(Superseded to B1880GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 98300

SEAL, Engine Donut
(Superseded to 98300GS)

$11.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton B1797

FASTENER, Clip
(Superseded to B1797GS)

$3.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 48031G

CLAMP, Hose 13/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

21

-----

ASSY., Pump EG w/Thermal

Note: (For replacement, order 209940GS)

$

$

Not available

21

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

22

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91373

DECAL, Data

$

$

Currently unavailable

24

Briggs & Stratton 79552

OVERLAMINATE, Decal

$

$

Not available

25

Briggs & Stratton DB3330

HANDLE, Gray Powder Coated
(Superseded to DB3330GS)

$179.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B2791

COVER, Hinge
(Superseded to B2791GS)

$7.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2790

CAP, End
(Superseded to B2790GS)

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B2759A

HOOK, Chemical Bottle
(Superseded to B2759AGS)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2071

NUT, 1/4-20 Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 81895

CAP, Plug
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2516

CAP, Vinyl
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B3381G

NOZZLE, High / Low
(Superseded to 193609DGS)

$40.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B3337

HOSE, 1/4" x 25'

$

$

Currently unavailable

35

Briggs & Stratton A1408

CAP, Garden Hose Inlet
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 21337

LANCE, Extension
(Superseded to 21337GS)

$32.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 21336

GUN, High Pressure

$

$

Currently unavailable

38

Briggs & Stratton B2739

KIT, Maintenance
(Superseded to B2739GS)

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B3708

KIT, Nozzle, Cleaning

$

$

Currently unavailable

40

Briggs & Stratton B3683

MANUAL
(Superseded to B3683GS)

$14.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 96382

OIL, Engine

$

$

Currently unavailable

42

Briggs & Stratton 97566

TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton B1300G

NOZZLE, Turbo
(Superseded to B1300GGS)

$26.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton B1127

GROMMET, Turbo
(Superseded to B1127GS)

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B1460

CAP, Vinyl
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 49808

WASHER, M12 Flat
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

900

Briggs & Stratton ~NSP

ENGINE, B8 S 3.75 Sprint, 98902-2228-E2

$

$

Currently unavailable
