580.768000 (1058-0) - Craftsman 1,500 PSI Pressure Washer Sump Assembly Parts Diagram

1,500 PSI Pressure Washer

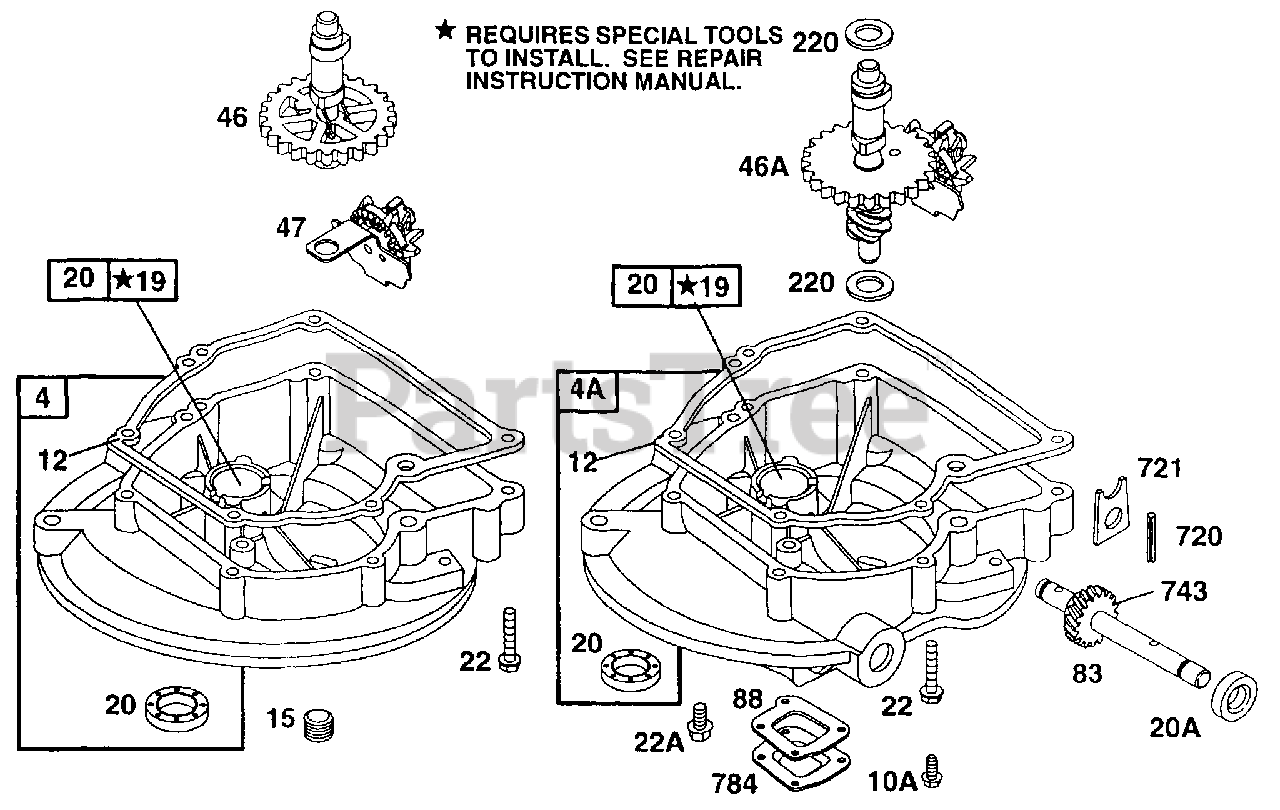

Sump Assembly Parts Diagram

  • Title

4

Briggs & Stratton 395384

Sump - Engine
(Superseded to 590569)

$104.99

$

In Stock, Qty 7

0

4A

Briggs & Stratton 395390

Sump - Engine

$98.99

$

Usually ships in 2-12 days

0

4A

Briggs & Stratton 391484

Seal - Oil
(Superseded to 691952)

$9.99

$

In Stock, only 1 left!

0

10A

Briggs & Stratton 94658

Screw - Hex.
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

10A

Briggs & Stratton 94621

Screw - Hex.
(Superseded to 691666)

Note: (Used Before Code Date 96112000).

$3.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 270833

Gasket - Crankcase (.015" Thick, Standard)
(Superseded to 692218)

$

$

Not available

12

Briggs & Stratton 270895

Gasket - Crankcase (.005" Thick)

$9.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 270896

Gasket - Crankcase (.009" Thick)

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94720

Plug - Oil Drain
(Superseded to 691680)

$5.99

$

In Stock, only 3 left!

0

19

Briggs & Stratton 293709

Bushing (Plain)

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

Seal - Oil
(Superseded to 391483S)

$5.99

$

In Stock, Qty 9

0

20A

Briggs & Stratton 391484

Seal - Oil
(Superseded to 691952)

$9.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 94682

Screw - Hex.
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

22A

Briggs & Stratton 93415

Screw - Hex.
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 493747

Gear - Cam
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

46A

Briggs & Stratton 396197

Gear - Cam
(Superseded to 690645)

Note: (Clockwise)

$109.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 491688

Slinger - Oil
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 230831

Shaft - Aux. Drive
(Superseded to 691240)

$9.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 270328

Gasket - Cover
(Superseded to 691868)

$4.49

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 68938

Washer - Thrust
(Superseded to 691074)

$3.99

$

Usually ships in 2-12 days

0

720

Briggs & Stratton 93474

Pin - Shaft
(Superseded to 691623)

$4.99

$

Usually ships in 2-12 days

0

721

Briggs & Stratton 221779

Stop - Shaft
(Superseded to 690397)

$4.99

$

Usually ships in 2-12 days

0

743

Briggs & Stratton 231278

Gear - Drive
(Superseded to 690516)

$40.99

$

Usually ships in 2-12 days

0

784

Briggs & Stratton 221780

Cover - Gear
(Superseded to 690398)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298989

Gasket Set
(Superseded to 590777)

$

$

Not available
