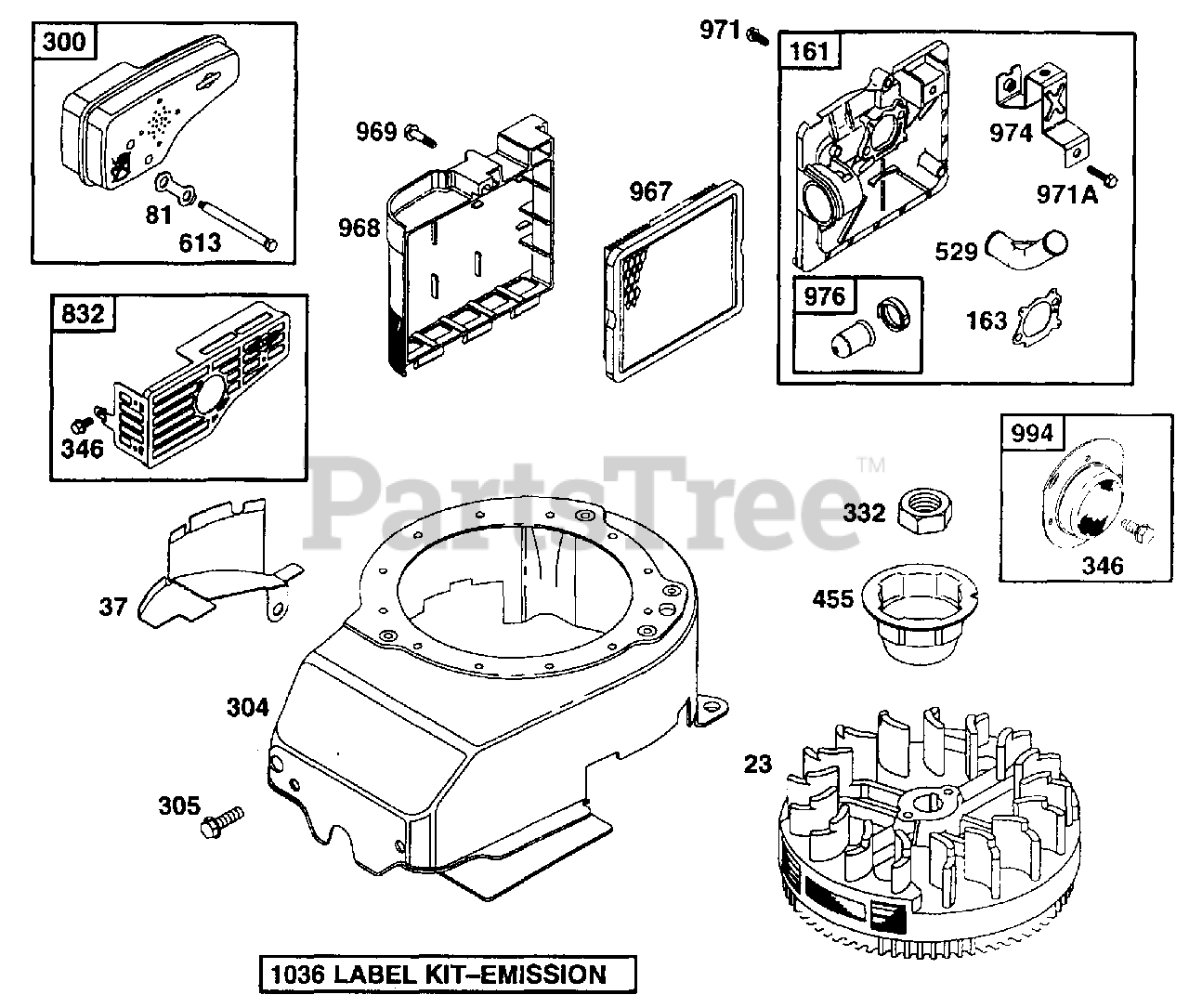

580.768010 (1052-0) - Craftsman 1,800 PSI Pressure Washer Flywheel, Muffler, Air Cleaner & Blower Housing Parts Diagram

1,800 PSI Pressure Washer

Flywheel, Muffler, Air Cleaner & Blower Housing Parts Diagram

  • Title

23

Briggs & Stratton 492893

Flywheel
(Superseded to 591282)

$120.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 224511

Guard-Flywheel
(Superseded to 793756)

$10.99

$

In Stock, only 4 left!

0

81

Briggs & Stratton 223664

Lock-Muffler Screw
(Superseded to 691740)

$5.49

$

Usually ships in 2-12 days

0

161

Briggs & Stratton 496116

Base-Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, Qty 10

0

163

Briggs & Stratton 272653

Gasket-Air Cleaner
(Superseded to 795629)

Note: (Included in Gasket Set - P/N 497316, Carburetor Kit - P/N 498260, Carburetor Gasket Set - P/N 498261

$3.49

$

In Stock, Qty 20+

0

300

Briggs & Stratton 496106

Muffler-Exhaust
(Superseded to 692038)

$29.99

$

In Stock, Qty 7

0

304

Briggs & Stratton 493294

Housing-Blower

$102.99

$

In Stock, Qty 5

0

305

Briggs & Stratton 94744

Screw-Hex.
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 92284

Nut-Flywheel
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

346

Briggs & Stratton 94602

Screw-Hex.
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

455

Briggs & Stratton 225121

Cup-Flywheel
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 4 left!

0

613

Briggs & Stratton 94231

Screw Shoulder
(Superseded to 691340)

$4.99

$

In Stock, only 2 left!

0

832

Briggs & Stratton 494224

Guard-Muffler

$40.99

$

In Stock, only 1 left!

0

967

Briggs & Stratton 491588

Filter-Air
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

Cover-Air Cleaner
(Superseded to 692298)

$27.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 94872

Screw-Slotted Hex.
(Superseded to 690670)

$5.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 94873

Screw-Hex.
(Superseded to 692523)

$7.49

$

In Stock, Qty 10

0

971A

Briggs & Stratton 94749

Screw-Hex.
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

974

Briggs & Stratton 224815

Bracket-Support
(Superseded to 795259)

$32.99

$

In Stock, Qty 10

0

976

Briggs & Stratton 496115

Primer-Carburetor
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 499341

Lable Kit-Emission

$3.49

$

In Stock, only 1 left!

0

994

Briggs & Stratton 398067

Arrester-Spark

$64.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, Qty 12

0

Briggs & Stratton 498260

Carburetor Kit

$16.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0
