58160 - Toro 18" Tiller (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

18" Tiller

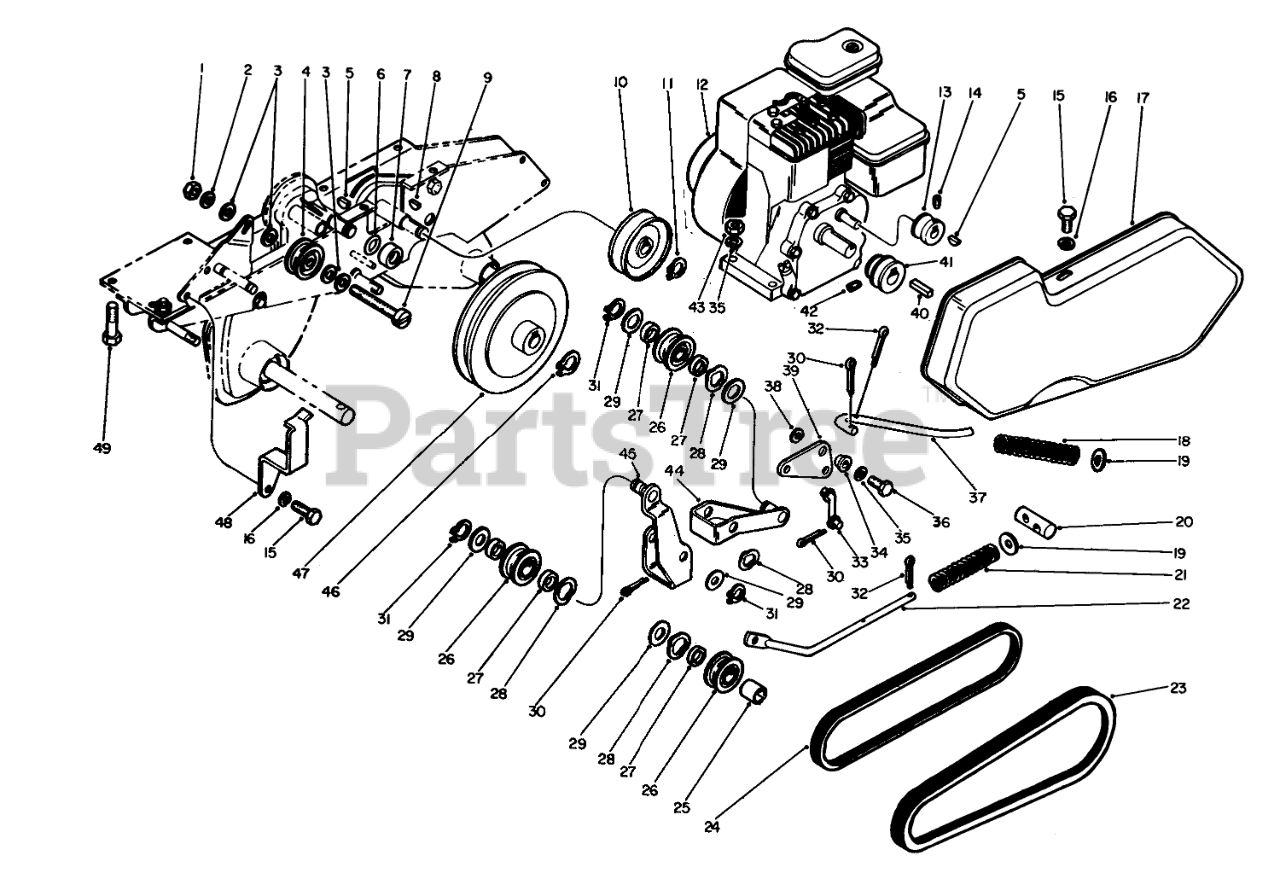

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 47-8020

Idler Pulley
(Superseded to 607978)

$27.99

$

In Stock, only 1 left!

0

5

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

6

Toro 47-8560

O-Ring

$

$

Not available

7

Toro 47-8570

Seal Cup

$

$

Not available

8

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

9

Toro 47-8910

Machine Screw

$

$

Not available

10

Toro 47-9590

Pulley-Tines
(Superseded to 740357)

$

$

Not available

11

Toro 47-9580

Retaining Ring
(Superseded to 701786)

$1.99

$

Usually ships in 3-6 days

0

12

Toro 47-7700

Engine

$

$

Currently unavailable

13

Toro 47-8990

Camshaft Pulley
(Superseded to 701781)

$

$

Not available

14

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

15

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 47-9060

Belt Guard w/Decal

$

$

Not available

18

Toro 47-9050

Spring-Tine Drive
(Superseded to 702541)

$

$

Not available

19

Toro 47-7890

Washer

$

$

Not available

20

Toro 47-9030

Swivel
(Superseded to 702543)

$

$

Not available

21

Toro 47-9330

Spring-Traction Drive
(Superseded to 702536)

$

$

Not available

22

Toro 47-9120

Control Rod
(Superseded to 702554)

$

$

Not available

23

Toro 47-9420

Tine Drive Belt
(Superseded to 702603)

$40.99

$

In Stock, only 1 left!

0

24

Toro 47-9430

Traction Drive Belt
(Superseded to 705361)

$40.99

$

In Stock, only 1 left!

0

25

Toro 48-1100

Spacer-Idler
(Superseded to 702529)

$

$

Not available

26

Toro 47-9520

Idler Pulley
(Superseded to 740006)

$

$

Not available

27

Toro 48-0990

Spacer
(Superseded to 702583)

$

$

Not available

28

Toro 47-8150

Wave Washer
(Superseded to 702545)

$

$

Not available

29

Toro 47-8110

Washer
(Superseded to 700317)

$5.49

$

In Stock, only 1 left!

0

30

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

31

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 16

0

32

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

33

Toro 47-9340

Link
(Superseded to 702535)

$

$

Not available

34

Toro 47-8180

Pivot Bushing
(Superseded to 702546)

$

$

Not available

35

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 47-9350

Control Rod
(Superseded to 702534)

$

$

Not available

38

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 47-9320

Bellcrank
(Superseded to 702537)

$

$

Not available

40

Toro 21-5070

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

41

Toro 47-9070

Engine Pulley
(Superseded to 702596)

$

$

Not available

42

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

43

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

44

Toro 47-9150

Tine Drive Idler
(Superseded to 742793)

$

$

Not available

45

Toro 47-9130

Traction Drive Idler
(Superseded to 742791)

$301.99

$

Usually ships in 3-6 days

0

46

Toro 47-9280

Retaining Ring
(Superseded to 701425)

$

$

Not available

47

Toro 47-9240

Pulley-Traction

$

$

Not available

48

Toro 47-9080

Belt Guide
(Superseded to 701471)

$

$

Not available

49

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
