58170 - Toro 22" Tiller (SN: 003000001 - 003999999) (1983) ENGINE BRIGGS & STRATTON MODEL 190402-2675-01 Parts Diagram

22" Tiller

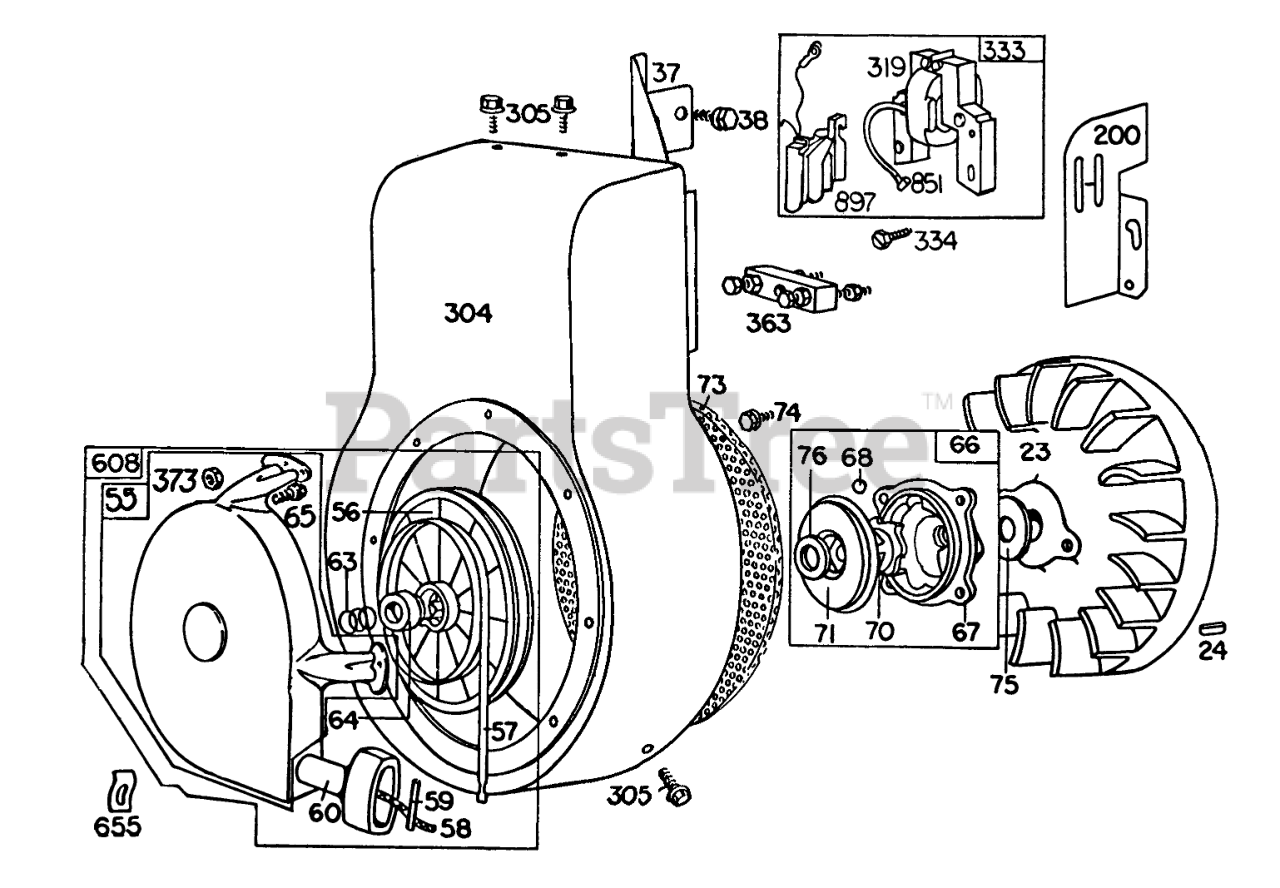

ENGINE BRIGGS & STRATTON MODEL 190402-2675-01 Parts Diagram

  • Title

23

Briggs & Stratton 298260

Flywheel

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222475

Guard-Flywheel
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 93777

Screw
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 393576

Housing-Rewind

$85.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, only 2 left!

0

57

Briggs & Stratton 294303

Spring-Rewind
(Superseded to 490179)

$14.99

$

In Stock, Qty 10

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 230228

Pin-Starter Grip
(Superseded to 230228S)

$3.99

$

In Stock, Qty 5

0

60

Briggs & Stratton 66728

Grip-Starter
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, only 4 left!

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 93067

Screw
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 394558

Housing-Starter Clutch
(Superseded to 399671)

$34.99

$

In Stock, Qty 14

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221796

Screen
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 299853

Housing-Blower
(Superseded to 491596)

$

$

Not available

305

Briggs & Stratton 93158

Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

319

Briggs & Stratton 395326

Armature Assembly
(Superseded to 398811)

$63.99

$

In Stock, Qty 6

0

333

Briggs & Stratton 395492

Armature Group
(Superseded to 398811)

$63.99

$

In Stock, Qty 6

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

In Stock, only 1 left!

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Trigger Coil

$

$

Not available
