58210 - Toro 26" Tiller (SN: 002000001 - 002999999) (1972) CHASSIS ASSEMBLY Parts Diagram

26" Tiller

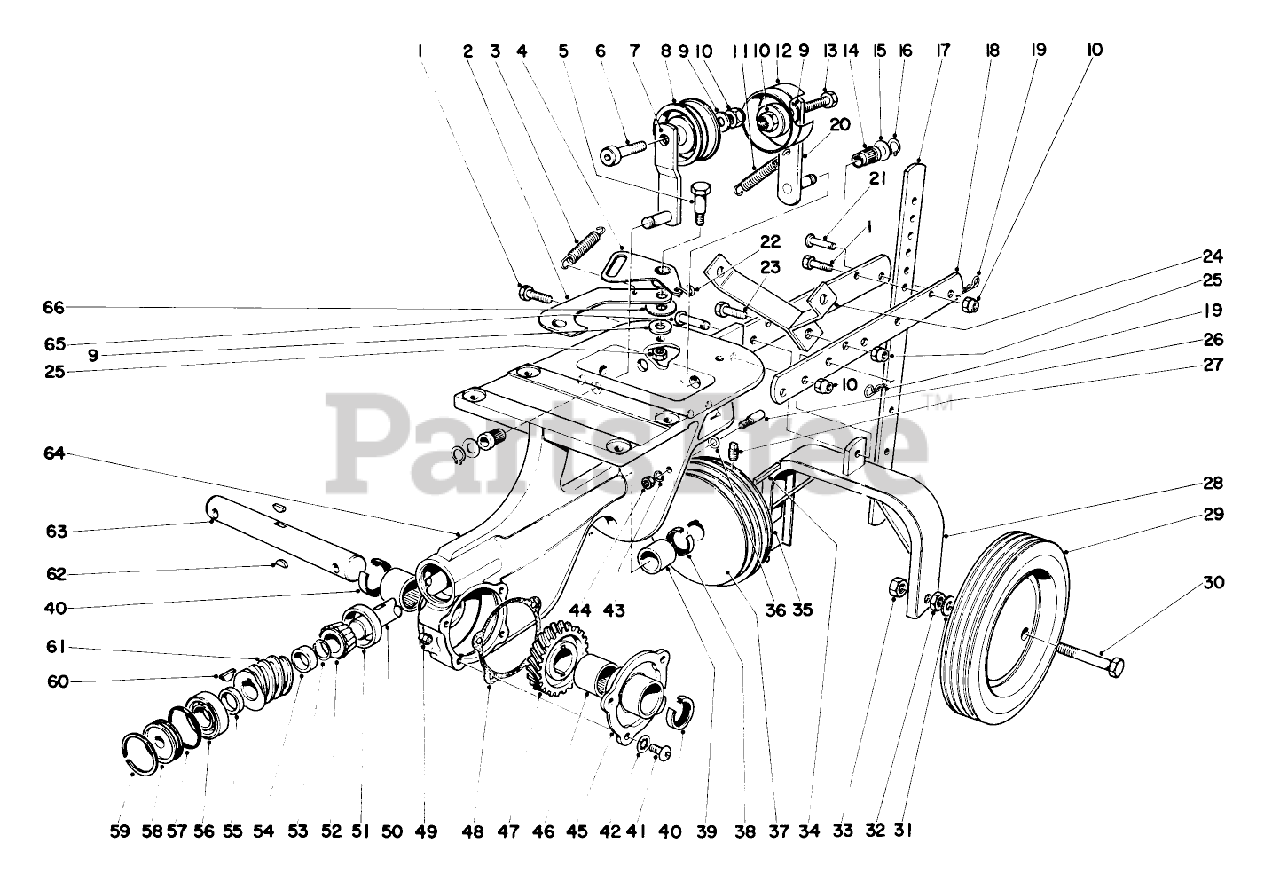

CHASSIS ASSEMBLY Parts Diagram

  • Title

1

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 7-0028

Rev. Link

$

$

Not available

3

Toro 7-1322

Spring

$

$

Not available

4

Toro 7-0027

Bellcrank

$

$

Not available

5

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 3 left!

0

6

Toro 3274-45

Capscrew

$

$

Currently unavailable

7

Toro 7-0055

IdlerArm

$

$

Not available

8

Toro 7-0056

PULLEY IDLER

$

$

Not available

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

11

Toro 7-0025

Spring

$

$

Not available

12

Toro 7-0051

IDLER PULLEY

$

$

Not available

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 7-0023

IDLER BRG

$

$

Not available

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 12

0

17

Toro 7-0076

DEPTH GAGE

$

$

Not available

18

Toro 7-0037

Drawbar

$

$

Currently unavailable

19

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

20

Toro 7-0050

Idler
(Superseded to 26-7100)

$

$

Not available

21

Toro 7-0040

Pin
(Superseded to 7-2116)

$8.99

$

In Stock, only 4 left!

0

22

Toro 7-3618

S Hook

$

$

Not available

23

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 7-9340

Handle Support

$

$

Not available

25

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

26

Toro 7-0031

Belt Guide

$

$

Currently unavailable

27

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

28

Toro 7-0038

Wheel Bracket

$

$

Currently unavailable

29

Toro 7-0075

Wheel

$

$

Not available

30

Toro 7-3552

Axle
(Superseded to 325-13)

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 9

0

33

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

34

Toro 7-0036

KEY-SQUARE

$

$

Not available

35

Toro 7-0035

Pulley

$

$

Not available

36

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 7-0034

Pulley

$

$

Not available

38

Toro 253-84

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

39

Toro 256-167

BUSHING

$

$

Not available

40

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

41

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

42

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

43

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

44

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

45

Toro 7-0048

Cover

$

$

Not available

46

Toro 252-52

Bearing

$

$

Currently unavailable

47

Toro 7-0047

WORM WHEEL

$

$

Not available

48

Toro 7-0020

GASKET

$

$

Not available

49

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

50

Toro 7-0012

WORM SHAFT

$

$

Not available

51

Toro 254-89

1.750 ROLLER BRG CUP

$

$

Not available

52

Toro 254-88

3/4 ROLLER BRG CONE

$107.99

$

Usually ships in 3-6 days

0

53

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

54

Toro 7-0014

WORM SHF REAR SPACER

$

$

Not available

55

Toro 7-0015

SPACER

$

$

Not available

56

Toro 251-207

.750 BALL BEARING

$

$

Not available

57

Toro 237-71

O-RING

$8.99

$

Usually ships in 3-6 days

0

58

Toro 7-0017

Plug

$

$

Not available

59

Toro 7-0018

INTRNL RETAINING RING

$6.49

$

Usually ships in 3-6 days

0

60

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

61

Toro 7-0016

WORM GEAR

$

$

Not available

62

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

63

Toro 7-0046

WORM WHEEL SHAFT

$

$

Not available

64

Toro 7-0043

Chassis

$

$

Currently unavailable

65

Toro 7-0040

Pin
(Superseded to 7-2116)

$8.99

$

In Stock, only 4 left!

0

66

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0
