58630 - Toro 8" Earth Auger (SN: 321000001 - 321999999) (2021) Powerhead Assembly Parts Diagram

8" Earth Auger

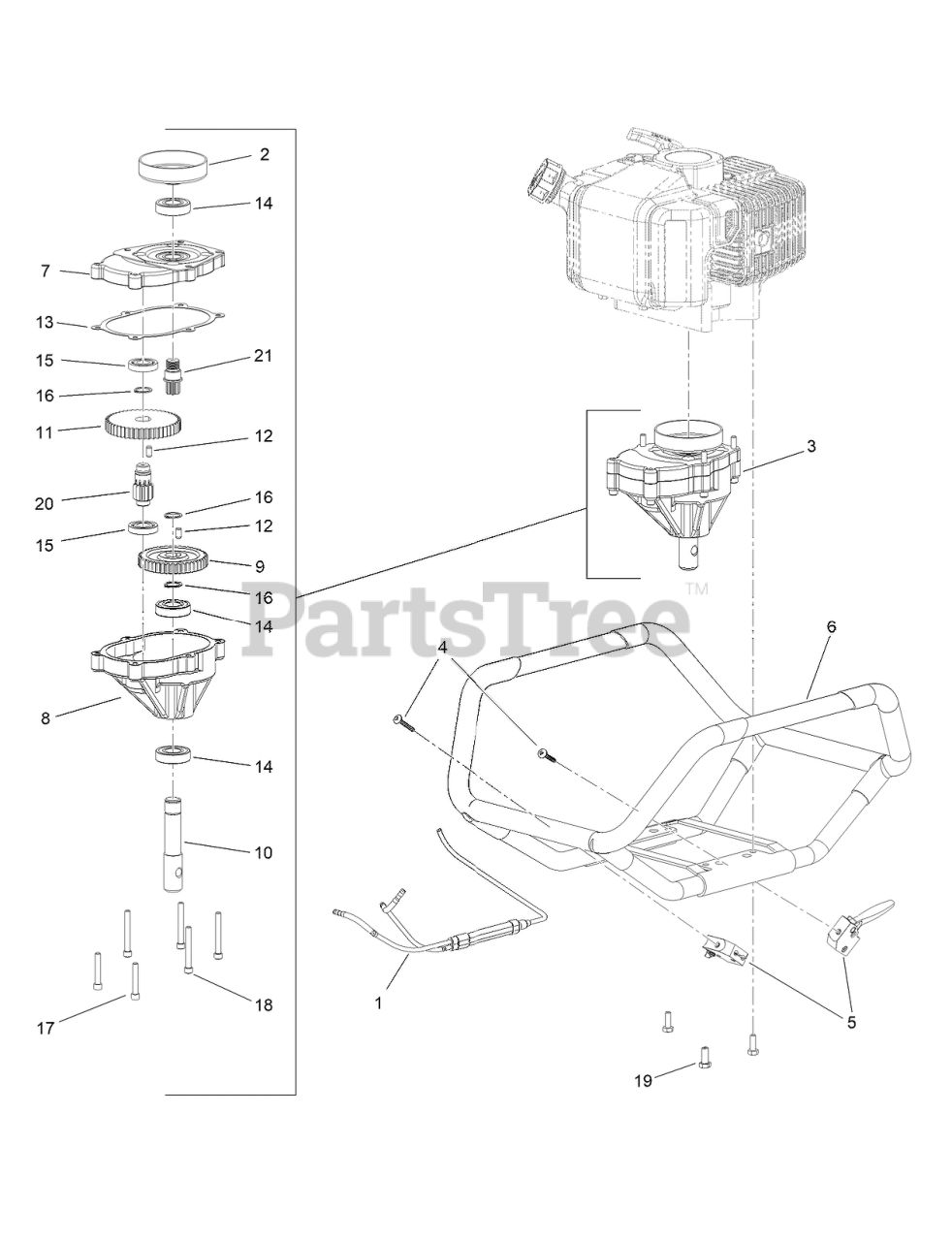

Powerhead Assembly Parts Diagram

  • Title
1

Toro 144-5145

CABLE ASM

$

$

Currently unavailable

2

Toro 144-5204

DRUM-CLUTCH

$

$

Currently unavailable

3

Toro 144-5206

TRANSMISSION ASM

$

$

Currently unavailable

4

Toro 144-4776

SCREW-PTH

$

$

Currently unavailable

5

Toro 144-5215

TRIGGER ASM

$

$

Currently unavailable

6

Toro 144-5216

HANDLEBAR

$

$

Currently unavailable

7

Toro 144-5217

CASE-TRANSMISSION UPPER

$

$

Currently unavailable

8

Toro 144-5218

CASE-TRANSMISSION LOWER

$

$

Currently unavailable

9

Toro 144-5219

GEAR-44T

$

$

Currently unavailable

10

Toro 144-5220

SHAFT-OUTPUT

$

$

Currently unavailable

11

Toro 144-5221

GEAR-48T

$

$

Currently unavailable

12

Toro 144-5222

PIN-DOWEL

$

$

Currently unavailable

13

Toro 144-5223

GASKET-TRANSMISSION

$

$

Currently unavailable

14

Toro 144-5224

BEARING-BALL

$

$

Currently unavailable

15

Toro 144-5225

BEARING-BALL

$

$

Currently unavailable

16

Toro 144-5021

RING-RETAINING

$

$

Currently unavailable

17

Toro 144-5226

SCREW-SHCS

$

$

Currently unavailable

18

Toro 144-5227

SCREW-SHCS

$

$

Currently unavailable

19

Toro 144-5228

SCREW-HH

$

$

Currently unavailable

20

Toro 144-5229

PINION-10T

$

$

Currently unavailable

21

Toro 144-5230

PINION-7T

$

$

Currently unavailable
