5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

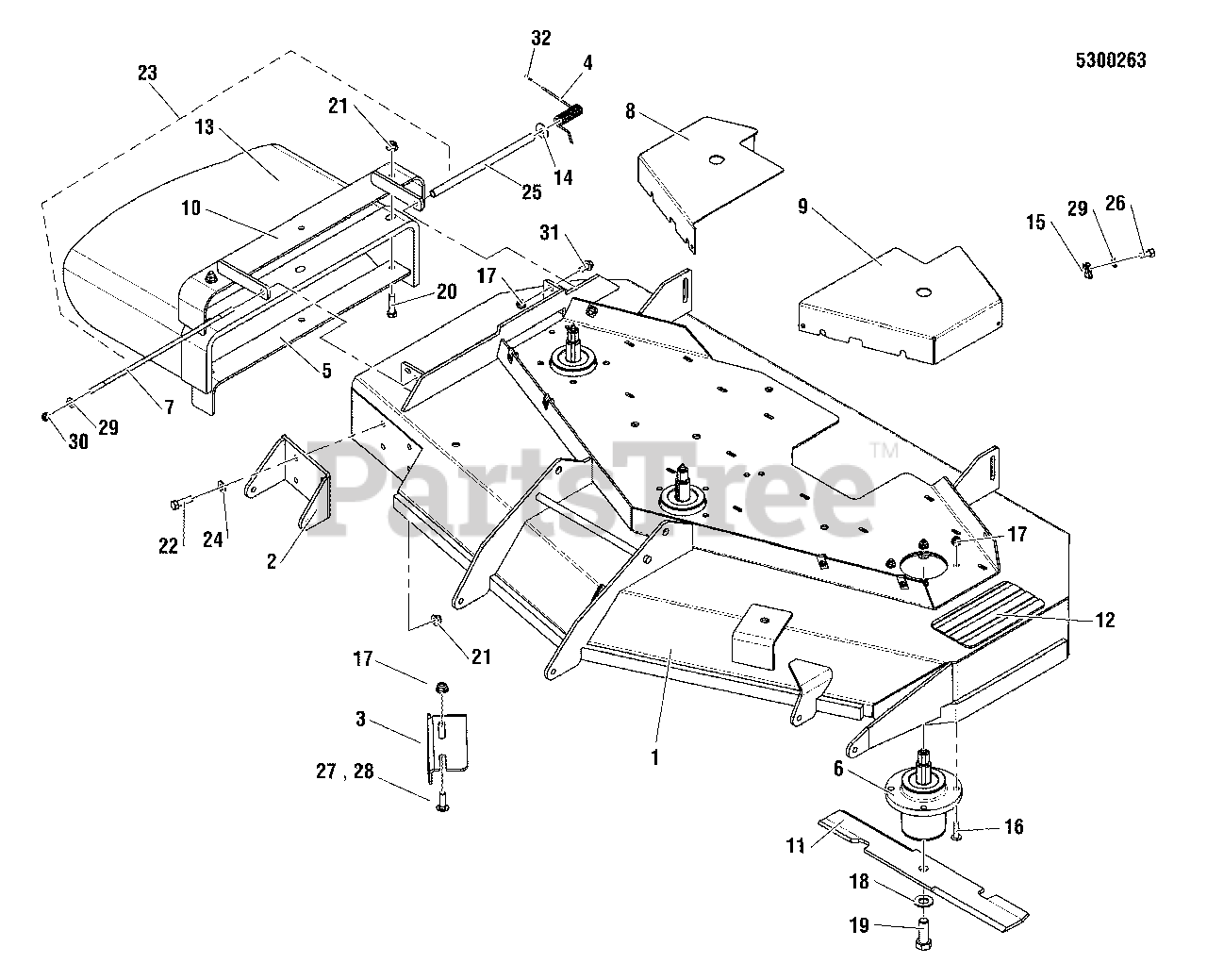

52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1a

Simplicity 5600311

DECK SHELL W/ DECALS
(Superseded to 5600311YP)

Note: (S/N: 2014624505 & Below)

$2898.99

$

Usually ships in 2-12 days

0

1b

Simplicity 5600467

DECK SHELL W/ DECALS
(Superseded to 5600467YP)

Note: (S/N: 2014624506 & Above)

$2308.99

$

Usually ships in 2-12 days

0

2

Simplicity 5408810C

PLATE, BRACKET, ANTI SCALP - ORANGE
(Superseded to 5408810CYP)

$41.99

$

Usually ships in 2-12 days

0

3

Simplicity 540557YP

PLATE

$

$

Not available

4

Simplicity 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

5

Simplicity 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

In Stock, only 1 left!

0

6

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$222.99

$

Usually ships in 2-12 days

0

7

Simplicity 5061300

ROD MOUNT, CHUTE
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

8

Simplicity 5405037C

GUARD, 52" DECK - RH - ORG
(Superseded to 5405037CYP)

$59.99

$

In Stock, only 1 left!

0

9

Simplicity 5061811C

GUARD, 52" DECK - LH - ORG
(Superseded to 5061811CSM)

$50.99

$

Usually ships in 2-12 days

0

10

Simplicity 5061293C

WELD, FRAME, CHUTE, 61 - ORG
(Superseded to 5061293CSM)

$45.99

$

In Stock, only 1 left!

0

11

Simplicity 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)
(Superseded to 5101756SYP)

$

$

Not available

12

Simplicity 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

11

Simplicity 5101756YP

BLADE, 18 X .25 X 2.5, 1 X 3.5

$24.99

$

Usually ships in 2-12 days

0

13

Simplicity 5402403

CHUTE, DISCHARGE, BEND RUBBER
(Superseded to 5402403SM)

$186.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

15

Simplicity 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

16

Simplicity 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

17

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5 YZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

23

ORDER INDIVIDUAL PIECES TO SERVICE DISCHARGE CHUTE COMPONENTS

Note: (INCLUDES REF NOS 5, 10, 13, 20 & 21)

$

$

Not available

24

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 5061598

SPACER, TORSION SPRING,9.63 LG

$

$

Not available

26

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

27

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

29

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

30

Simplicity 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

31

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 15

0

32

Simplicity 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0
