5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck - Rollers Group Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

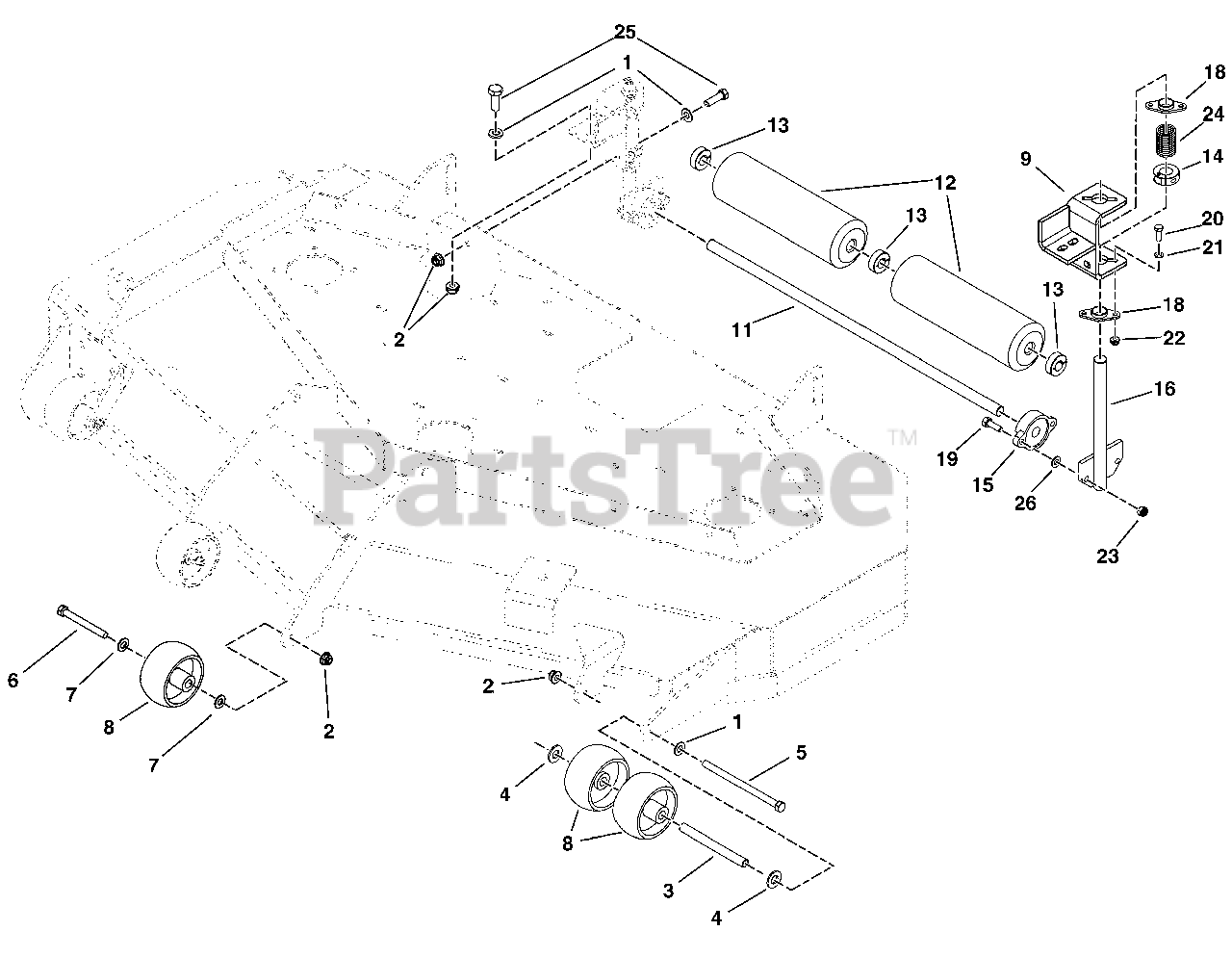

52" Mower Deck - Rollers Group Parts Diagram

  • Title

1

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 8

0

4

Simplicity 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

5

Simplicity 5025013X48

BOLT, 3/8-16 X 6"
(Superseded to 5025013X48SM)

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 2108765

BOLT, REAR WHEEL
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

7

Simplicity 80003590

WASHER-0500(0.51IDX0.87ODX.06THK) BLK
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1714760

GAUGE WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

9

Simplicity 5401298C

STRIPER MOUNT, LH
(Superseded to 5401298CSM)

$50.99

$

Usually ships in 2-12 days

0

10

Simplicity 5401299C

STRIPER MOUNT, RH
(Superseded to 5401299CSM)

Note: (Not Shown)

$50.99

$

In Stock, only 1 left!

0

11

Simplicity 5046903

SHAFT, Roller
(Superseded to 5046903SM)

$29.99

$

Usually ships in 2-12 days

0

12

Simplicity 5020785

ROLLER
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 11

0

13

Simplicity 5020441

COLLAR, 5/8" Split
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 11

0

14

Simplicity 5020594

COLLAR, 3/4" Double Split
(Superseded to 5020594SM)

$19.99

$

In Stock, only 3 left!

0

15

Simplicity 5022846

BEARING, Flange
(Superseded to 5022846SM)

$51.99

$

In Stock, Qty 20+

0

16

Simplicity 5046900C

GUIDE SHAFT, LH
(Superseded to 5046900CSM)

$41.99

$

Usually ships in 2-12 days

0

17

Simplicity 5046901C

GUIDE SHAFT, RH
(Superseded to 5046901CSM)

Note: (Not Shown)

$41.99

$

Usually ships in 2-12 days

0

18

Simplicity 5023155

BUSHING, Flange
(Superseded to 5023155SM)

$11.99

$

In Stock, Qty 20+

0

19

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GD
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4"
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

21

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

22

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 5025057

NUT, 5/16-18 HEX NYLO
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5022845

SPRING, Compression
(Superseded to 5022845SM)

$6.49

$

In Stock, Qty 9

0

25

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4"
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

26

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
