5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton Lift Group - 52" Models S/N: 2014624506 & Above Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

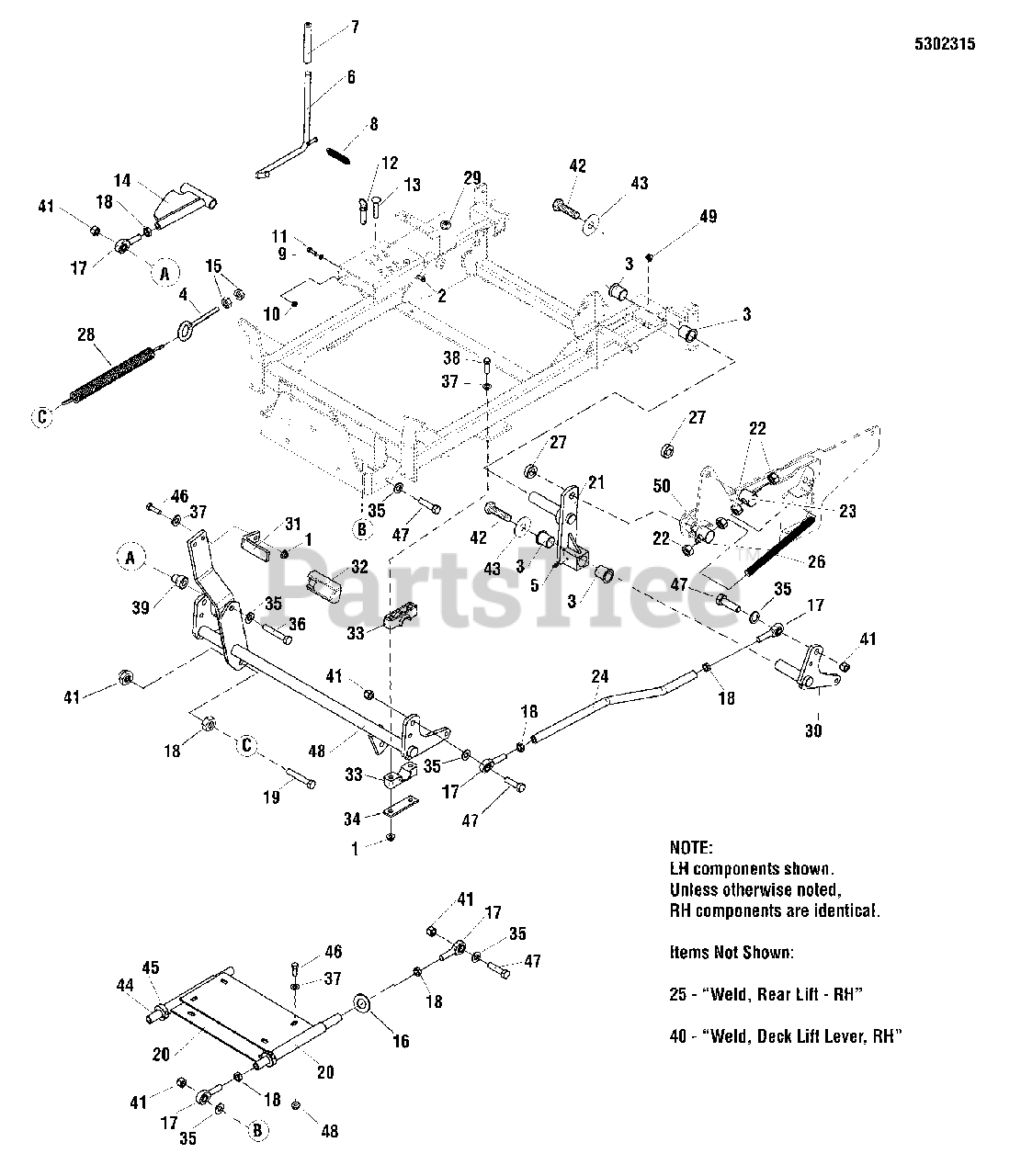

Lift Group - 52" Models S/N: 2014624506 & Above Parts Diagram

  • Title

1

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 5025212X4

CLEVIS PIN, 1/4 X 1/2, YZ
(Superseded to 5025212X4SM)

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

4

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$5.99

$

Usually ships in 2-12 days

0

5

Simplicity 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5400719A

WELD, ROD DECK LIFT - BLK
(Superseded to 5400719AYP)

$18.99

$

Usually ships in 2-12 days

0

7

Simplicity 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

In Stock, only 1 left!

0

8

Simplicity 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

9

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

10

Simplicity 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

12

Simplicity 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE
(Superseded to 5025146X16SM)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 5400769C

WELD, DECK ADJUST LINK
(Superseded to 5400769CSM)

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5025017X18

BOLT, 1/2-13 X 2-1/4 GD5 YZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 5400647A

WELD, DECK STABILIZER - BLK
(Superseded to 5400647AYP)

$60.99

$

Usually ships in 2-12 days

0

21

Simplicity 5401664A

WELD, REAR LIFT, LH - BLK
(Superseded to 5105172)

$84.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

In Stock, only 1 left!

0

23

Simplicity 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

24

Simplicity 5100149

ROD, DECK LIFT BENT
(Superseded to 5100149SM)

$47.99

$

Usually ships in 2-12 days

0

25

Simplicity 5401665A

WELD, REAR LIFT, RH - BLK
(Superseded to 5105173)

$77.99

$

Usually ships in 2-12 days

0

26

Simplicity 5100247

ROD, 5/8-11 X 9.00
(Superseded to 5100247SM)

$14.99

$

Usually ships in 2-12 days

0

27

Simplicity 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 11

0

28

Simplicity 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

29

Simplicity 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

31

Simplicity 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

32

Simplicity 5104262YP

RUBBER, FOOT PEDAL

$10.99

$

Usually ships in 2-12 days

0

33

Simplicity 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

34

Simplicity 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

In Stock, only 1 left!

0

35

Simplicity 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 3 left!

0

36

Simplicity 5025017X28

BOLT, 1/2-13 X 3-1/2 GD5
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

37

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

38

Simplicity 5025013X22

BOLT, 3/8-16 X 2-3/4 GD5 YZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 6

0

39

Simplicity 5047103

ADAPTER, CASTER AXLE
(Superseded to 5047103SM)

$10.99

$

In Stock, only 1 left!

0

40

Simplicity 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

$67.99

$

Usually ships in 2-12 days

0

41

Simplicity 5025098

NUT, 1/2-20 HEX NYLON LOCK
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

42

Simplicity 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 5049868

SHAFT, DECK STABILIZER
(Superseded to 5049868SM)

$37.99

$

Usually ships in 2-12 days

0

45

Simplicity 5010114

COLLAR, 3/4 SPLIT
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

46

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

47

Simplicity 5025018X14

BOLT-1/2-20 X 1-3/4 GD5 YZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

48

Simplicity 5403949C

WELD, DECK LIFT SHAFT
(Superseded to 5403949CSM)

$176.99

$

Usually ships in 2-12 days

0

49

Simplicity 5025447

GREASE FITTING, 1/4-28, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

50

Simplicity 5045856

PIVOT, SPRING ROD
(Superseded to 5045856SM)

$31.99

$

Usually ships in 2-12 days

0
