5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton Rear Suspension Group - 61" Models & 52" Models S/N: 2014624506 & Above Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

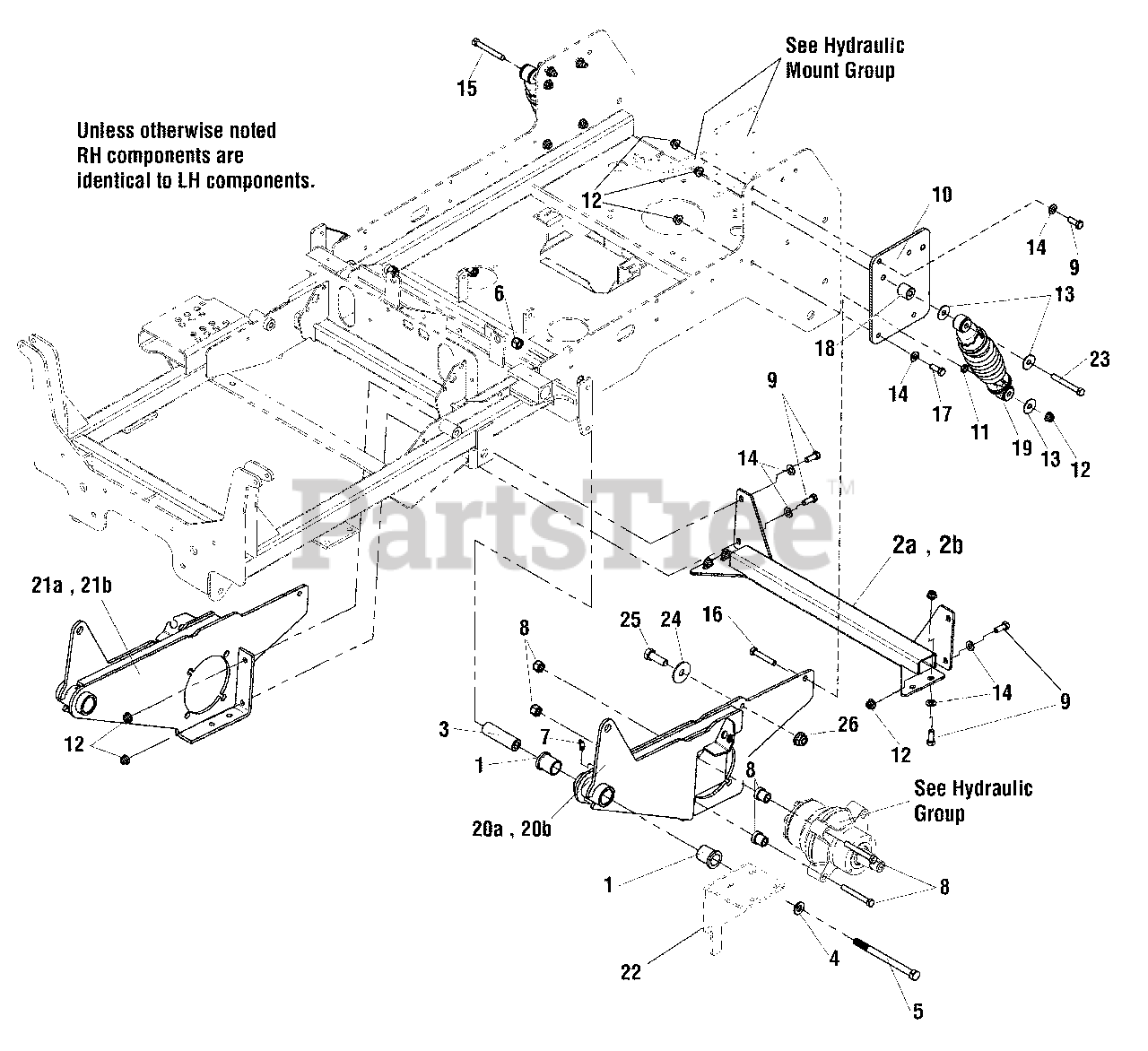

Rear Suspension Group - 61" Models & 52" Models S/N: 2014624506 & Above Parts Diagram

  • Title

1

Simplicity 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

2a

Simplicity 5404056A

WELD, TIE BAR - BLK
(Superseded to 5600187)

Note: (52" Models)

$183.99

$

Usually ships in 2-12 days

0

2b

Simplicity 5600188

KIT, TIE BAR, 61 (5404051A)
(Superseded to 5600188YP)

Note: (61" Models)

$256.99

$

Usually ships in 2-12 days

0

3

Simplicity 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 3 left!

0

5

Simplicity 5025017X52

BOLT, 1/2-13 X 6-1/2 GD8 YZ
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

6

Simplicity 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

8

Refer to Hydraulic Components Service Group

$

$

Not available

9

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 5061751C

PLATE, FRAME SUPPORT - ORG
(Superseded to 5061751CSM)

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

Usually ships in 2-12 days

0

12

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025165

WASHER, 3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

15

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 YZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

16

Simplicity 5025058X18

BOLT, 3/8-16 X 2-1/4 GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

17

Simplicity 5025013X8

BOLT, 3/8-16 X 1 GD5 YZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

18

Simplicity 5103427

SPACER, .39 X 1.00 X 1.25, CZ
(Superseded to 5103427YP)

$8.49

$

Usually ships in 2-12 days

0

19

Simplicity 5023436

SHOCK ABSORBER, # 7417-106
(Superseded to 5023436SM)

$210.99

$

In Stock, only 1 left!

0

20a

Simplicity 5401356C

WELD, MOTOR MOUNT - LH - ORG
(Superseded to 5401356CSM)

Note: (52" Models)

$330.99

$

Usually ships in 2-12 days

0

20b

Simplicity 5401166C

WELD, MOTOR MOUNT - LH - ORG
(Superseded to 5401166CSM)

Note: (61" Models)

$324.99

$

Usually ships in 2-12 days

0

21a

Simplicity 5401357C

WELD, MOTOR MOUNT - RH - ORG
(Superseded to 5401357CSM)

Note: (52" Models)

$330.99

$

Usually ships in 2-12 days

0

21b

Simplicity 5401165C

WELD, MOTOR MOUNT - RH - ORG
(Superseded to 5401165CSM)

Note: (61" Models)

$341.99

$

Usually ships in 2-12 days

0

22

FUEL TANK MOUNT (SEE FUEL TANK & MOUNT GROUP)

$

$

Not available

23

Simplicity 5025013X28

BOLT, 3/8-16 X 3-1/2 GD5 YZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

24

Simplicity 5102701

SPACER, .34 X 1.54 X .25 UHMW
(Superseded to 5102701YP)

Note: (52" Models)

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

Note: (52" Models)

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025392

NUT, 5/16-18 Hex Nylock Flange
(Superseded to 5025392FS)

Note: (52" Models)

$3.49

$

Usually ships in 2-12 days

0
