5900522 - Simplicity Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton Seat, Mount & Floor Group - 61" Models & 52" Models S/N: 2014624506 & Above Parts Diagram

Citation 52" Zero-Turn Mower, 26hp Briggs & Stratton

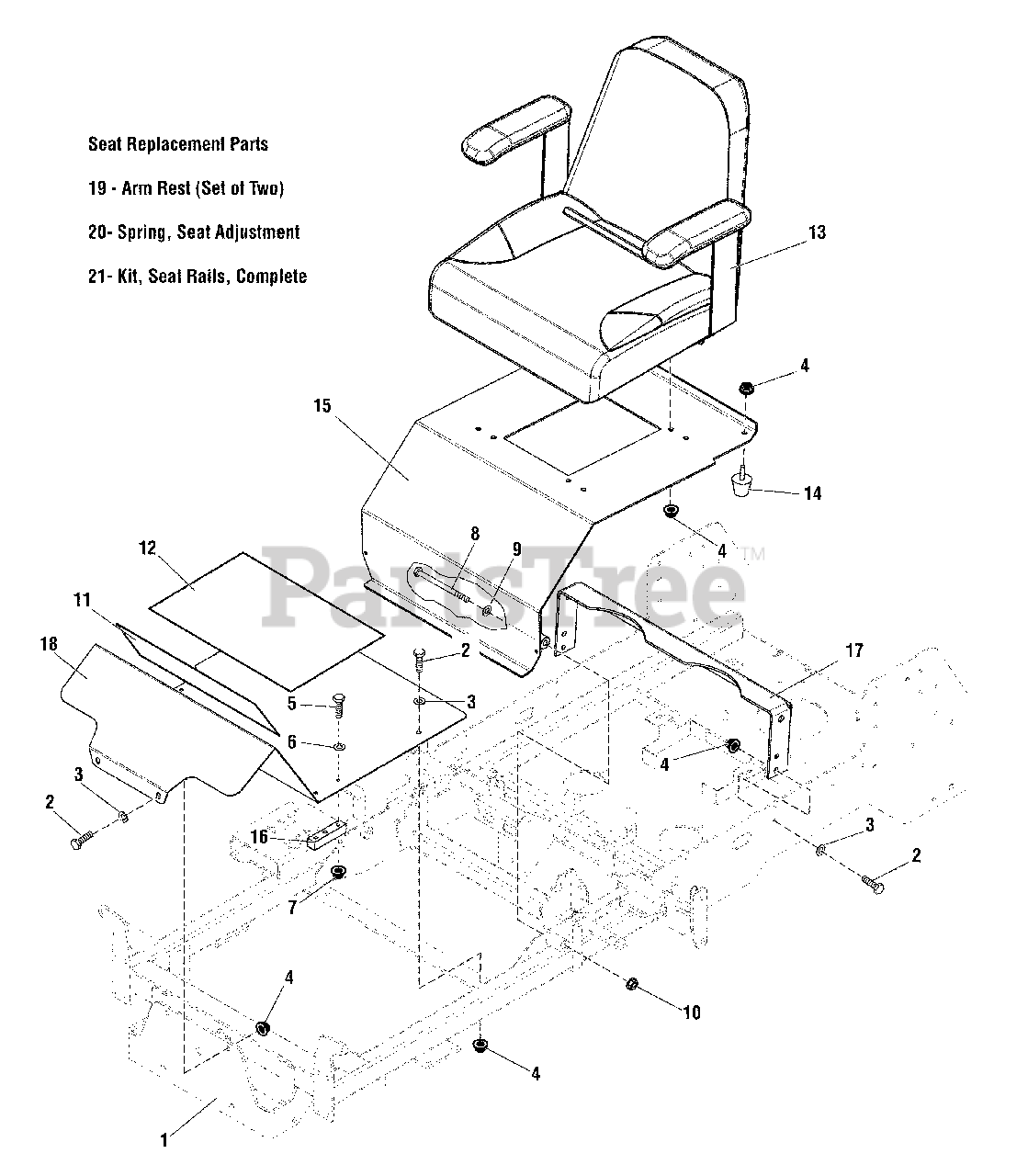

Seat, Mount & Floor Group - 61" Models & 52" Models S/N: 2014624506 & Above Parts Diagram

  • Title

1

MAIN FRAME

$

$

Not available

2

Simplicity 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

6

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 11

0

7

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 5025013X44

BOLT, 3/8-16 X 5-1/2 GD5 YZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5101011

SAFETY WALK, 8.00 X 15.00
(Superseded to 5101011SM)

$19.99

$

In Stock, only 1 left!

0

12

Simplicity 5101013

SAFETY WALK, 11.50 X 15.00
(Superseded to 5101013SM)

$30.99

$

Usually ships in 2-12 days

0

13

Simplicity 5061599

SEAT, XB-180, NO LOGO, BLACK
(Superseded to 5061599SM)

$744.99

$

Usually ships in 2-12 days

0

14

Simplicity 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

15

Simplicity 5401589C

WELD, SEAT PLATE - IS2000 - ORG
(Superseded to 5401589CSM)

$343.99

$

Usually ships in 2-12 days

0

16

Simplicity 5100643

BLOCK, DECK LIFT SUPPORT
(Superseded to 5100643SM)

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 5403954C

WELD, SEAT SUPPORT - ORG
(Superseded to 5403954CSM)

$66.99

$

Usually ships in 2-12 days

0

18

Simplicity 5403953C

PLATE, FLOOR - ORG
(Superseded to 5403953CSM)

$199.99

$

Usually ships in 2-12 days

0

19

Simplicity 1686907

ARM REST (SET OF 2)
(Superseded to 1686907SM)

$139.99

$

Usually ships in 2-12 days

0

20

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

21

Simplicity 5061599X1

KIT, SEAT RAILS, COMPLETE
(Superseded to 5061599X1SM)

$192.99

$

Usually ships in 2-12 days

0
