5900527 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

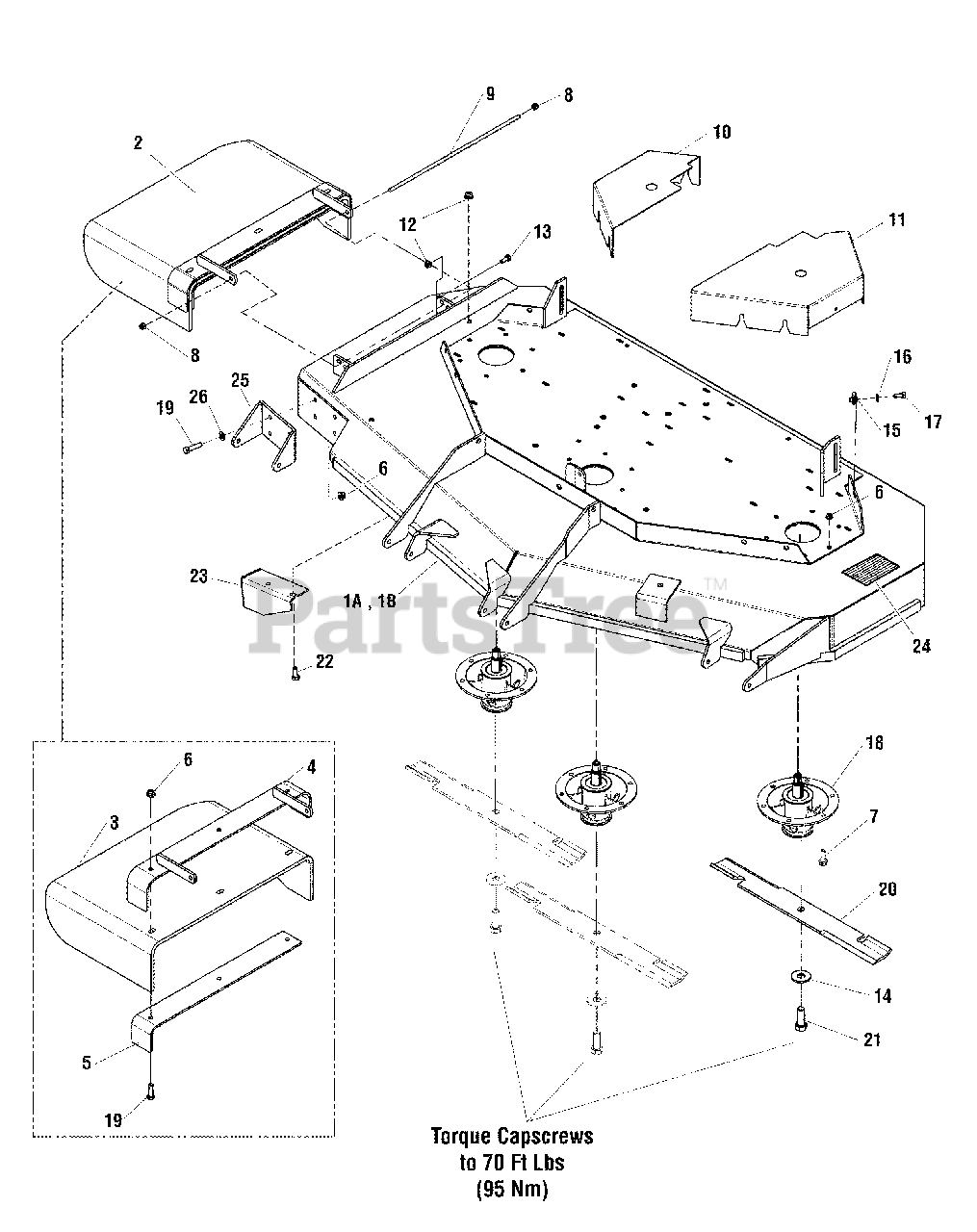

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1A

Simplicity 5600292

DECK SHELL W/DECALS, 61" SIDE DISCHARGE
(Superseded to 5600292YP)

Note: (S/N: 2014344991 & BELOW)

$3076.99

$

Usually ships in 2-12 days

0

1B

Simplicity 5600426

DECK SHELL W/DECALS, 61" SIDE DISCHARGE
(Superseded to 5600426YP)

Note: (S/N: 2014344992 & ABOVE)

$2653.99

$

Usually ships in 2-12 days

0

2

PURCHASE INDIVIDUAL REPLACEMENT PARTS

Note: (Includes Ref No. 3 - 7)

$

$

Not available

3

Simplicity 5404834YP

CHUTE, DISCHARGE, BEND RUBBER (SV)

$158.99

$

Usually ships in 2-12 days

0

4

Simplicity 5404716AYP

WELD, FRAME CHUTE, 61 - BLK

$100.99

$

Usually ships in 2-12 days

0

5

Simplicity 5408018AYP

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 25 - S/N: 2016399222 & Below)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025390X8

BOLT, 5/16-18 X 1" FLANGE
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

9

Simplicity 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

10

Simplicity 5400791C

GUARD, 61", RH - ORANGE
(Superseded to 5400791CSM)

$54.99

$

Usually ships in 2-12 days

0

11

Simplicity 5400792C

GUARD, 61" - LH - ORANGE
(Superseded to 5405484CYP)

$79.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

14

Simplicity 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5022308

BODY CLIP, 5/16-18 X 1/2" DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

16

Simplicity 5025292

WASHER, 5/16" GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

17

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

18

Simplicity 5100993

ASSM, SPINDLE, CAST IRON
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025013X12

BOLT, 3/8-16 X 1 1/2"
(Superseded to 5025013X12SM)

Note: (Qty: 7 - S/N: 2016399222 & Below)

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5101755S

BLADE, 21 X .25 X 2.5, 1 X 3.5 (SET OF 3)

Note: (Set of three blades).

$

$

Not available

21

Simplicity 5025320X14

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

24

Simplicity 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

Usually ships in 2-12 days

0

25

Simplicity 5408810C

PLATE, BRACKET, ANTI SCALP - ORANGE
(Superseded to 5408810CYP)

Note: (S/N: 2016399222 & Below)

$41.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2016399222 & Below)

$3.49

$

Usually ships in 2-12 days

0
