5900527 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton Motion Control Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

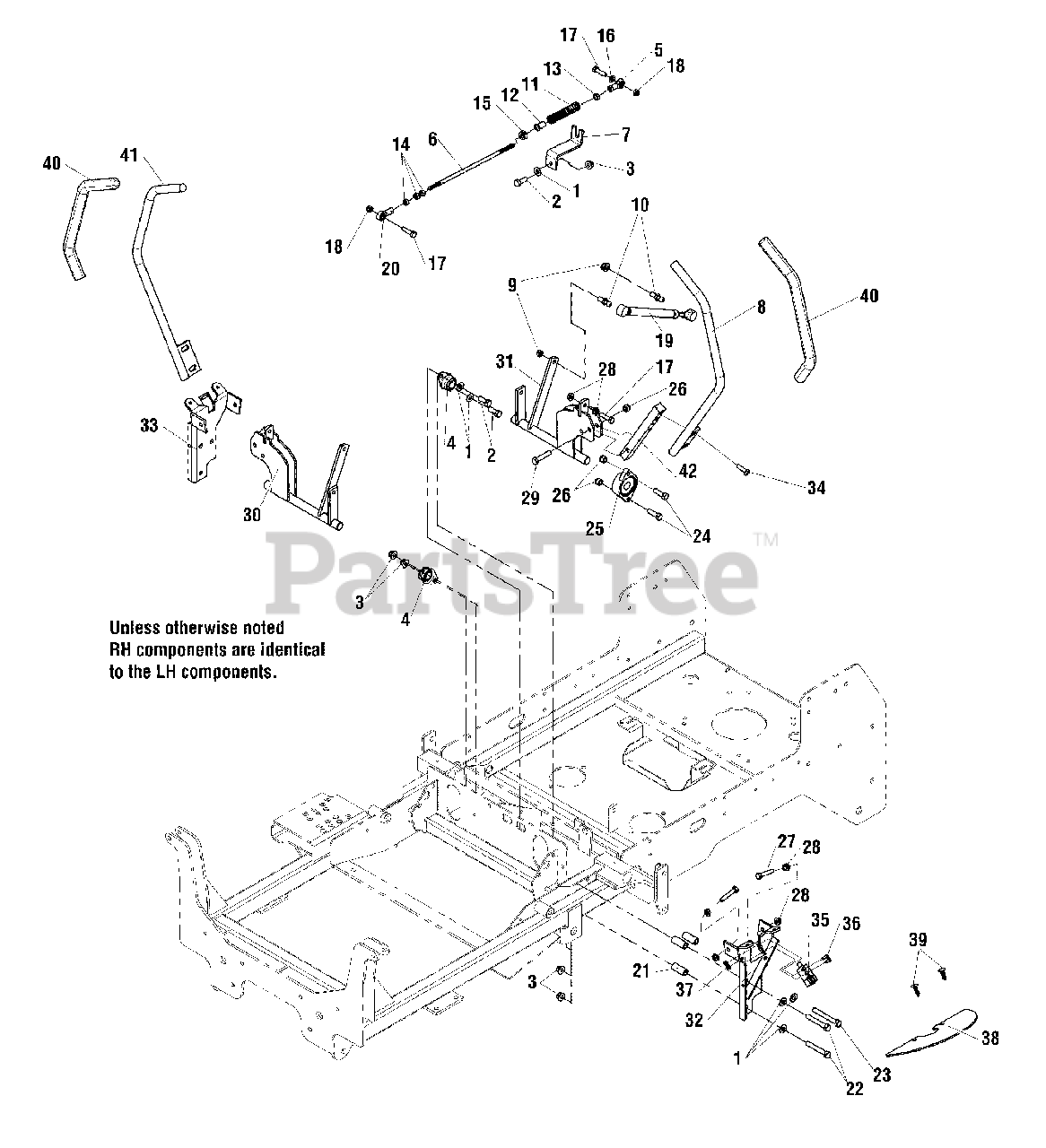

Motion Control Group Parts Diagram

  • Title

1

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5021098

BEARING, BRONZE FLANGE 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 8

0

5

Simplicity 5104494YP

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE

$18.99

$

In Stock, only 1 left!

0

6

Simplicity 5046420

ROD, HYDRO LINKAGE
(Superseded to 5046420SM)

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 5400653A

MOUNT, REVERSE RETURN - BLK
(Superseded to 5400653AYP)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 5400636A

WELD, HANDLE MOTION CONTROL-LH - BLK
(Superseded to 5400636AYP)

$50.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025392

NUT, 5/16-18 HEX NYLON FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5101307

10MM BALL STUD, 5/16-18 X 3/4
(Superseded to 5101307SM)

$5.49

$

Usually ships in 2-12 days

0

11

Simplicity 5022645

SPRING, COMPRESSION
(Superseded to 5022645SM)

$9.49

$

Usually ships in 2-12 days

0

12

Simplicity 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 5023212

NUT, 5/16 HEX LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025033

NUT, HEX 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 5020047

SET COLLAR, 5/16"
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Simplicity 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

18

Simplicity 5025057

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5100940

DAMPENER, CONTROL
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

20

Simplicity 5104493YP

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE

$18.99

$

In Stock, only 1 left!

0

21

Simplicity 5048264

SPACER, .63 X .39 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5
(Superseded to 84007037)

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X24

BOLT, 3/8-16 X 3" GD5
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

26

Simplicity 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

27

Simplicity 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931277

NUT, 5/16-18 HEX SM. SERR. FLG.
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

29

Simplicity 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

30

Simplicity 5403620A

WELD, CONTROL SHAFT, RH - BLK
(Superseded to 84008453)

$182.99

$

Usually ships in 2-12 days

0

31

Simplicity 5403619A

WELD, CONTROL SHAFT, LH - BLK
(Superseded to 5403619AYP)

$113.99

$

Usually ships in 2-12 days

0

32

Simplicity 5409641A

WELD, NEUTRAL LOCK, LH - BLK

$60.99

$

Usually ships in 2-12 days

0

33

Simplicity 5409642A

WELD, NEUTRAL LOCK, RH - BLK

$

$

Not available

34

Simplicity 1930591

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 80003531)

$5.49

$

In Stock, Qty 15

0

35

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 12

0

36

Simplicity 5025179X4

10-24 X .5 SCREW
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025029

NUT, HEX, #10-24
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 5401248

GUARD, RUBBER MOTION CONTROLS
(Superseded to 5401248SM)

$8.49

$

Usually ships in 2-12 days

0

39

Simplicity 5025431

PUSH RIVET (TREE TYPE) BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 5022068

GRIP, FOAM, 3/4" ID, 16" LONG
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

41

Simplicity 5400637A

WELD, HANDLE MOTION CONTROL, RH - BLK
(Superseded to 5400637AYP)

$69.99

$

Usually ships in 2-12 days

0

42

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0
