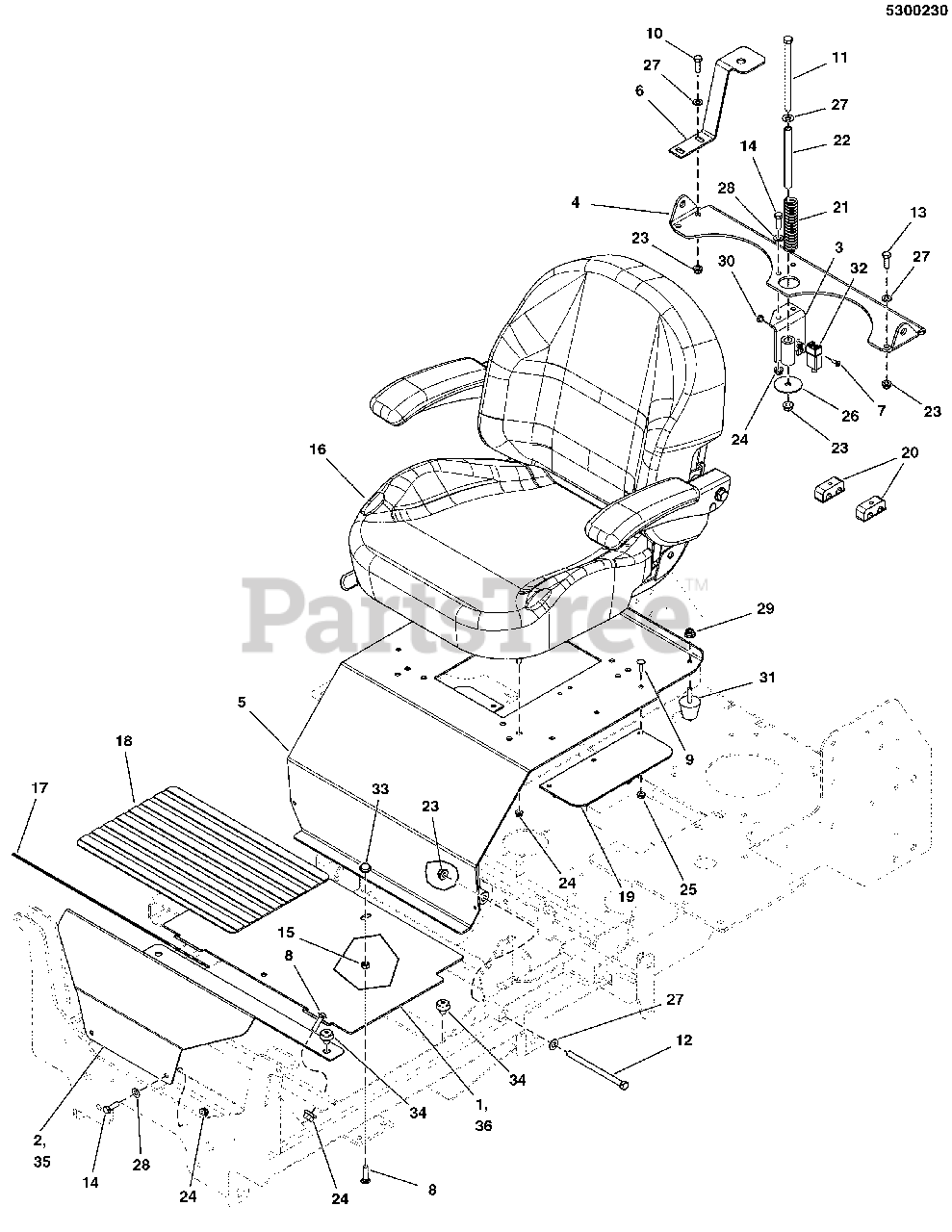

5900527 - Simplicity Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton Seat Mount & Floor Group - S/N: 2016269736 & Above (5300230) Parts Diagram

Cobalt 61" Zero-Turn Mower, 32hp Briggs & Stratton

Seat Mount & Floor Group - S/N: 2016269736 & Above (5300230) Parts Diagram

  • Title

1

Simplicity 5410467CYP

PLATE, FLOOR REMOVABLE, COBALT - ORG
(Superseded to 5410762CYP)

Note: (S/N: 2016269736 - 2016322687)

$136.99

$

Usually ships in 2-12 days

0

2

Simplicity 5410466CYP

PLATE, FRONT FLOOR, COBALT - ORG
(Superseded to 5410763CYP)

Note: (S/N: 2016269736 - 2016322687)

$116.99

$

Usually ships in 2-12 days

0

3

Simplicity 5409468CYP

WELD, BRACKET, SPRING SWITCH - ORG

$33.99

$

Usually ships in 2-12 days

0

4

Simplicity 5409406CYP

PLATE,SEAT SUPPORT - ORG

$61.99

$

Usually ships in 2-12 days

0

5

Simplicity 5401589CSM

WELD, SEAT PLATE - COBALT - ORG

$343.99

$

Usually ships in 2-12 days

0

6

Simplicity 5401162AYP

BRACKET, FUEL VALVE, COBALT - BLK

$15.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4 ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0

9

Simplicity 703575

BOLT, 1/4-20X.750, SQ

Note: (80003518)

$3.99

$

In Stock, only 2 left!

0

10

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 4 left!

0

11

Simplicity 5025013X48SM

BOLT, 3/8-16 X 6 GD5 YZ

$5.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025013X44SM

BOLT, 3/8-16 X 5-1/2 GD5 YZ

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

15

Simplicity 703164

NUT, 5/16-18, GRB, HEX, CNTR LK, ZINC/CL [80003675]

$3.49

$

In Stock, Qty 10

0

16

Simplicity 5103354YP

SEAT, 2012
(Superseded to 5104681YP)

$731.99

$

Usually ships in 2-12 days

0

17

Simplicity 5101374YP

SAFETY WALK, FLOOR REST, 6.00 X 16.00

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 5101333YP

SAFETY WALK, FLOOR PLATE, S50X, 10X16

$37.99

$

In Stock, only 2 left!

0

19

Simplicity 5100389YP

PLATE, SEAT, RUBBER FLAP

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 5100381SM

CLAMP, 1/2" HOSE, DOUBLE, PLASTIC

$

$

Not available

21

Simplicity 5100356SM

SPRING, .688 ID X .130 WIRE DIA 4.25

$16.99

$

Usually ships in 2-12 days

0

22

Simplicity 5046586SM

SPACER, .38 X .50 X 5.06

$12.99

$

In Stock, Qty 8

0

23

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

25

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, only 1 left!

0

26

Simplicity 5025326SM

WASHER, .39 X 2.00 X X .14

$4.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 16

0

28

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

$3.49

$

In Stock, Qty 9

0

30

Simplicity 5025029SM

NUT, #10-24 HEX

$2.99

$

Usually ships in 2-12 days

0

31

Simplicity 5022612SM

BUMPER, RUBBER 5/16-18

$23.99

$

In Stock, only 2 left!

0

32

Simplicity 5022094SM

SWITCH, PLUNGER, N.C./N.C.

$14.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025528YP

ACORN NUT, 5/16-18 S/S

$3.99

$

Usually ships in 2-12 days

0

34

Simplicity 197546GS

MNT, VBRTN, RBBR

$7.99

$

Usually ships in 2-12 days

0

35

Simplicity 5410763CYP

PLATE, FRONT FLOOR, COBALT - ORG

Note: S/N: 2016322688 & Above

$116.99

$

Usually ships in 2-12 days

0

36

Simplicity 5410762CYP

PLATE, FLOOR REMOVABLE, COBALT - ORG

Note: S/N: 2016322688 & Above

$136.99

$

Usually ships in 2-12 days

0
