5900764 - Simplicity Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

Citation 61" Zero-Turn Mower, 28hp Briggs & Stratton

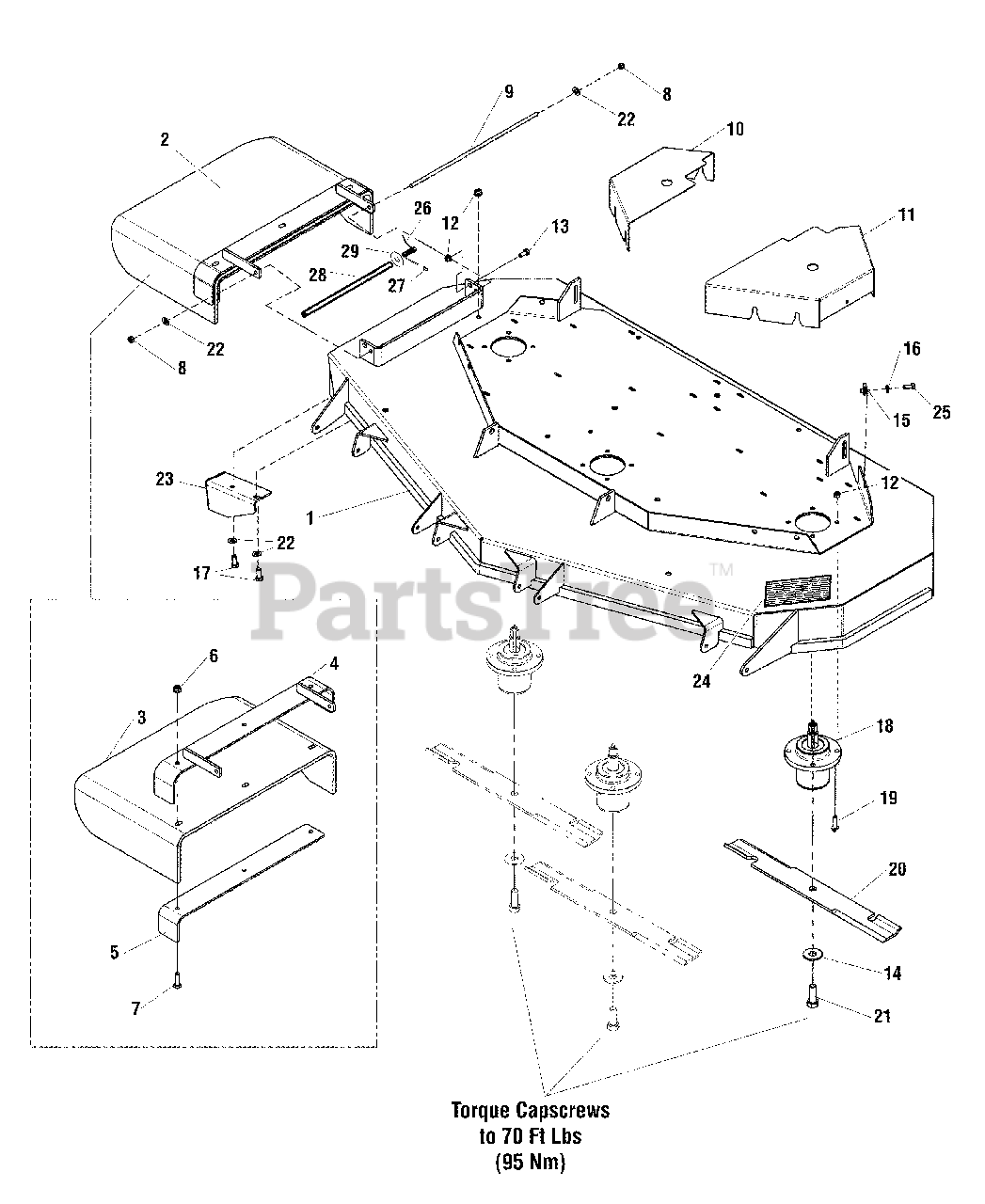

61" Mower Deck - Housing, Covers, Spindles & Blades Group Parts Diagram

  • Title

1

Simplicity 5600183SM

DECK SHELL W/DECALS, 61" SIDE DISCHARGE

Note: (Includes Safety Decals)

$1994.99

$

Usually ships in 2-12 days

0

2

Simplicity 5061288CSM

CHUTE ASSEMBLY, 61"
(Superseded to 5600087SM)

Note: (Includes Ref Nos 3 - 5)

$

$

Not available

3

Simplicity 5402403SM

CHUTE, DISCHARGE, RUBBER, 61/72"

$186.99

$

Usually ships in 2-12 days

0

4

Simplicity 5061293CSM

WELD, FRAME, CHUTE, 61 - ORG

$45.99

$

Usually ships in 2-12 days

0

5

Simplicity 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 10

0

7

Simplicity 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 6

0

9

Simplicity 5061300SM

ROD MOUNT, CHUTE 61"

$13.99

$

Usually ships in 2-12 days

0

10

Simplicity 5400791CSM

GUARD, 61", RH - ORG

$54.99

$

Usually ships in 2-12 days

0

11

Simplicity 5061451CSM

GUARD 61" - LH

$119.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, only 2 left!

0

13

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 11

0

14

Simplicity 5025159SM

WASHER, 5/8 USS
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

15

Simplicity 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, Qty 10

0

16

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, only 4 left!

0

17

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

18

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (Nut and Washer sold seperately)

$222.99

$

Usually ships in 2-12 days

0

19

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, only 1 left!

0

20

Simplicity 5020842SSM

BLADE SET, 61 DECK (SET OF 3 BLADES)
(Superseded to 5020842ASM)

$28.99

$

In Stock, Qty 11

0

21

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

24

Simplicity 5101005SM

SAFETY WALK, 9.75 X 6.00

$15.99

$

In Stock, only 1 left!

0

25

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 4 left!

0

26

Simplicity 5023385SM

SPRING, TORSION

$8.49

$

Usually ships in 2-12 days

0

27

Simplicity 5023489SM

CAP, PROTECTOR, .120 ID

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5050086X10P75SM

TUBE, 1/2 X 3/8 BLACK POLY, 10.75 LG

$

$

Not available

29

Simplicity 5025164SM

WASHER, 5/16 FENDER

$3.99

$

Usually ships in 2-12 days

0
