5901141 (SB50) - Ferris 50" Snow Thrower 50" Snow Thrower Parts Diagram

50" Snow Thrower

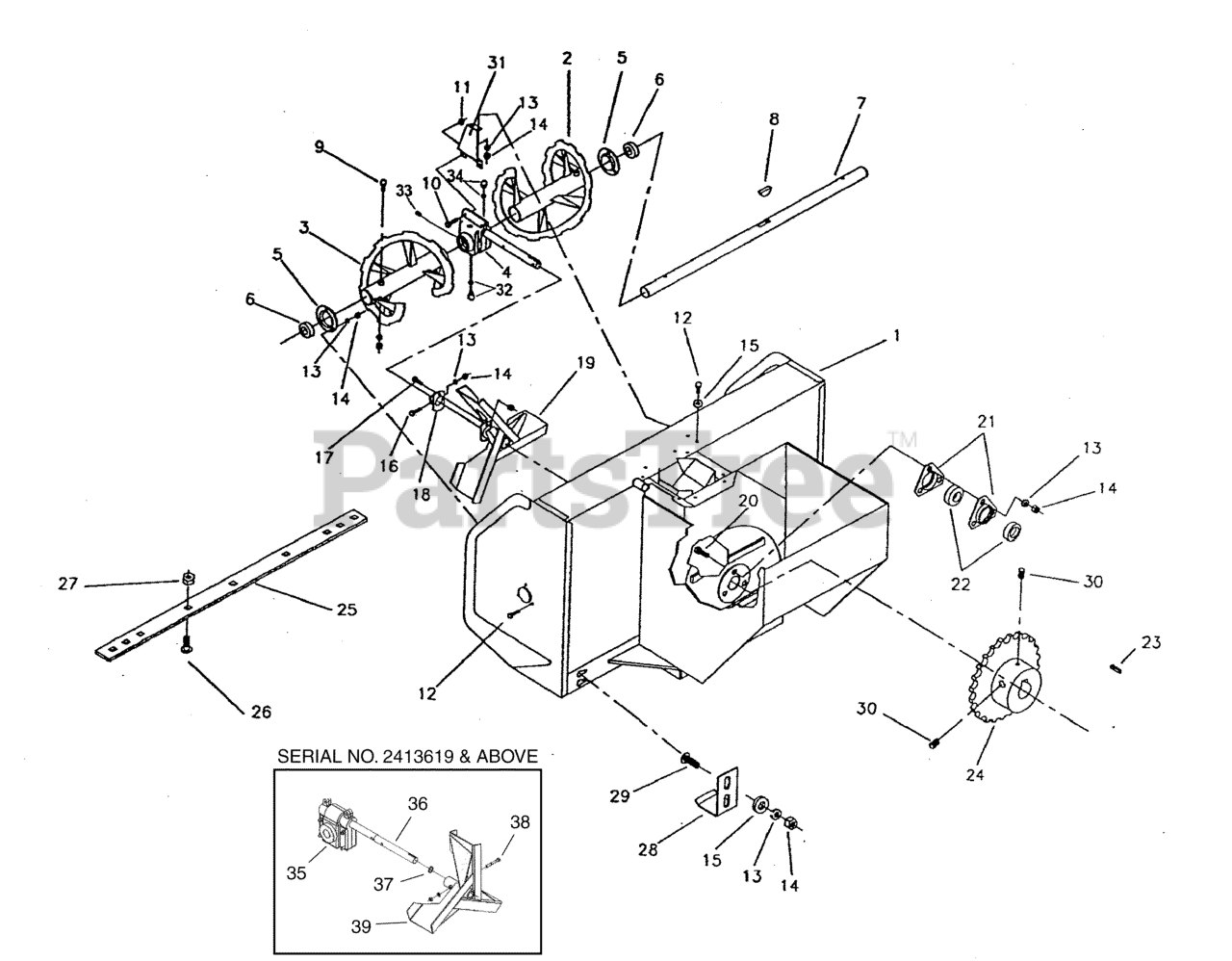

50" Snow Thrower Parts Diagram

  • Title

1

Ferris 662819

Frame

$

$

Currently unavailable

2

Ferris 5661569

Auger R.H.

Note: (S/N: 2413569 & Prior)

$284.99

$

Usually ships in 2-12 days

0

3

Ferris 5666737

AUGER R.H. SNOWBLOWER

Note: (S/N: 2413570 & Later)

$230.99

$

Usually ships in 2-12 days

0

3

Ferris 5661568

Auger L.H.

Note: (S/N: 2413569 & Prior)

$284.99

$

Usually ships in 2-12 days

0

Ferris 5666738

AUGER L.H. SNOWBLOWER

Note: (S/N: 2413570 & Later)

$230.99

$

Usually ships in 2-12 days

0

4

Ferris 5663030

Worm Gear

$1126.99

$

Usually ships in 2-12 days

0

4

Ferris 665775

Seal Kit

$

$

Currently unavailable

5

Ferris 657334

Bearing Flange

$

$

Currently unavailable

6

Ferris 665494

Bearing With Locking Collar

$

$

Currently unavailable

7

Ferris 660390

Output Shaft

$

$

Currently unavailable

8

Ferris 655967

Key Woodruff

$

$

Currently unavailable

9

Ferris 5657295

Shear bolt 5/16" NC x 2 1/4" w/ lock & nut, silver PTD, gr5

$4.49

$

Usually ships in 2-12 days

0

10

Hex Bolt 5/16" NC x 1-1/4"

Note: (Obtain Locally)

$

$

Not available

11

Nylon Lock Nut

Note: (Obtain Locally)

$

$

Not available

12

Hex Bolt 5/16" NC x 3/4"

Note: (Obtain Locally)

$

$

Not available

13

Lockwasher 5/16"

Note: (Obtain Locally)

$

$

Not available

14

Hex Nut 5/16" NC

Note: (Obtain Locally)

$

$

Not available

15

Flat Washer 3/8" Diameter Hole

Note: (Obtain Locally)

$

$

Not available

16

Hex Bolt 5/16" NC x 2", GR 8

Note: (Obtain Locally)

$

$

Not available

17

Ferris 5656053

Shear Bolt 1/4" NC x 1-1/4" With Stover Nut

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5655874

Fan Adaptor Shear Plate

$80.99

$

Usually ships in 2-12 days

0

19

Ferris 5657327

Fan Assembly

$243.99

$

Usually ships in 2-12 days

0

20

Carriage Bolt 5/16" NC x 5/8"

Note: (Obtain Locally)

$

$

Not available

21

Ferris 656589

Bearing Flange

$

$

Currently unavailable

22

Ferris 5654532

Bearing With Locking Collar

$52.99

$

Usually ships in 2-12 days

0

23

Ferris 5655379

Key 1/4" x 1/4" x 1"

$6.49

$

Usually ships in 2-12 days

0

24

Ferris 5657696

Sprocket 40B28

$151.99

$

Usually ships in 2-12 days

0

25

Ferris 5659862

Cutting Edge

$142.99

$

Usually ships in 2-12 days

0

26

Carriage Bolt 5/16" NC x 3/4"

Note: (Obtain Locally)

$

$

Not available

27

Stover Nut 5/16" NC

Note: (Obtain Locally)

$

$

Not available

28

Ferris 5669674

SKID SHOE

Note: (Was 5663460)

$24.99

$

Usually ships in 2-12 days

0

29

Carriage Bolt 5/16" NC x 1"

Note: (Obtain Locally)

$

$

Not available

30

Allen Set Screw 5/16" x 5/16"

Note: (Obtain Locally)

$

$

Not available

31

Ferris 657332

Worm Gear Support

$

$

Currently unavailable

32

Ferris 656090

Plug 1/8" NPT

$

$

Currently unavailable

33

Ferris 656090

Plug 1/8" NPT

$

$

Currently unavailable

34

Ferris 654927

Pressure Plug 1/8" NPT

$

$

Currently unavailable

35

Ferris 4500035

Worm Gear

$1056.99

$

Usually ships in 2-12 days

0

36

Ferris 4500036

Driving Shaft

$

$

Currently unavailable

37

Ferris 655087

Snap Ring - External

$

$

Currently unavailable

38

Ferris 657295

Shear Bolt, Lock Washer & Nut

$

$

Currently unavailable

39

Ferris 667070

Fan Assembly

$

$

Currently unavailable
