5901141 (SB50) - Ferris 50" Snow Thrower Electrical Group Parts Diagram

50" Snow Thrower

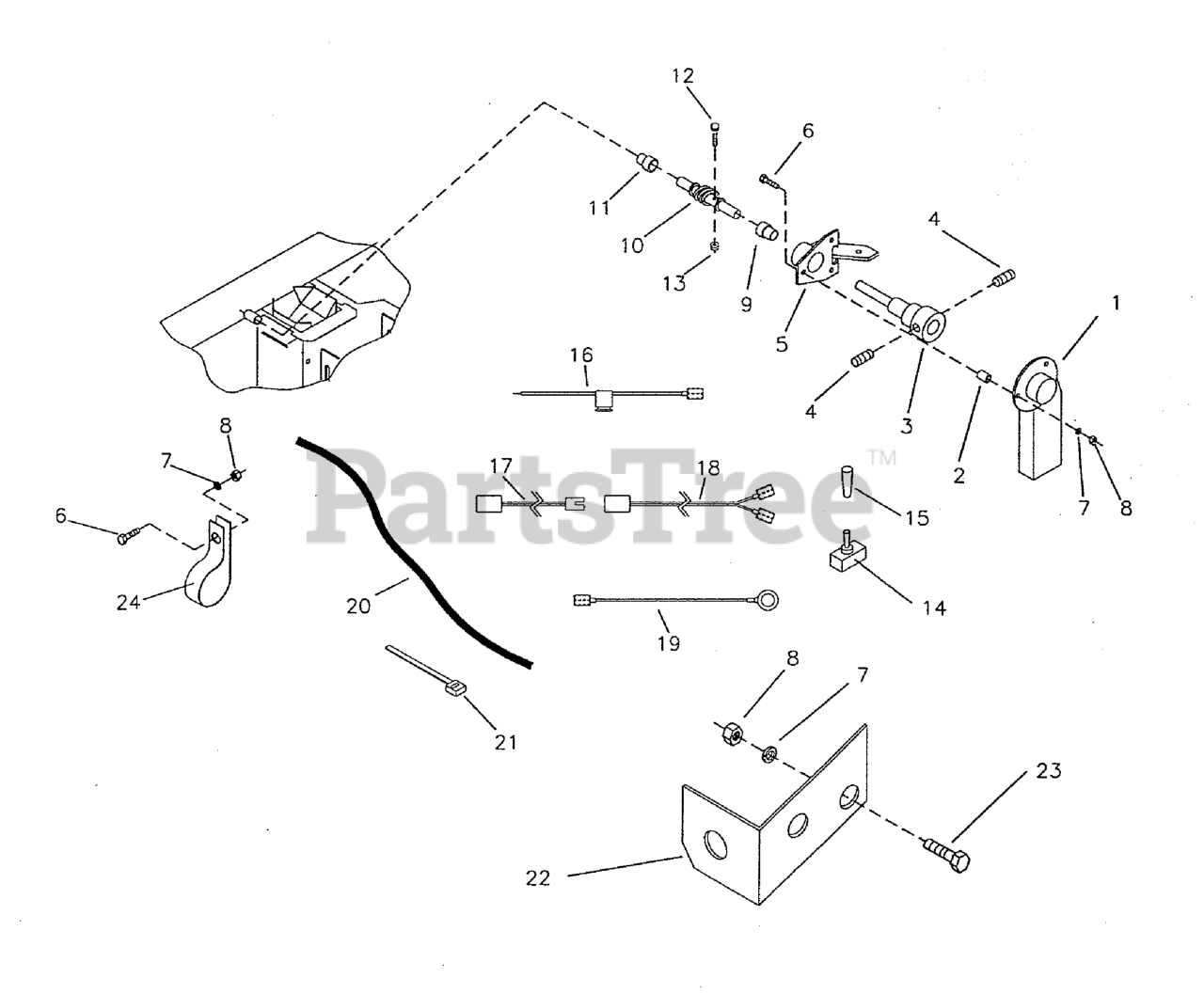

Electrical Group Parts Diagram

  • Title

1

Ferris 5662455

Electric Motor

$275.99

$

Usually ships in 2-12 days

0

2

Ferris 5662458

Spacer

$

$

Currently unavailable

3

Ferris 5662459

electric Rotation Shaft

$82.99

$

Usually ships in 2-12 days

0

4

Allen Set Screw 1/4" NF x 1/4"

Note: (Obtain Locally)

$

$

Not available

5

Ferris 5662466

Electric Rotation Support

$

$

Currently unavailable

6

Hex Bolt 1/4" NC x 1-3/4"

Note: (Obtain Locally)

$

$

Not available

7

Lockwasher 1/4"

Note: (Obtain Locally)

$

$

Not available

8

Hex Nut 1/4" NC

Note: (Obtain Locally)

$

$

Not available

9

Ferris 5657335

Plastic Bushing 1-5/16" Lg

$9.49

$

Usually ships in 2-12 days

0

10

Ferris 5660246

Rotation Worm

$142.99

$

Usually ships in 2-12 days

0

11

Ferris 5657336

Plastic Bushing 1-11/16" Lg.

$9.49

$

Usually ships in 2-12 days

0

12

Allen Socket head Capscrew 10-24 NC x 1"

Note: (Obtain Locally)

$

$

Not available

13

Nylon Locknut 10-24 NC

Note: (Obtain Locally)

$

$

Not available

14

Ferris 5658778

Switch

$26.99

$

Usually ships in 2-12 days

0

15

Ferris 5658666

Rubber Cap for Switch

$27.99

$

Usually ships in 2-12 days

0

16

Ferris 5663659

Wire with Fuse 20 Amp.

$32.99

$

Usually ships in 2-12 days

0

17

Ferris 5665838

Double Wire 103"

$103.99

$

Usually ships in 2-12 days

0

18

Ferris 5665837

Double Wire 7"

$30.99

$

Usually ships in 2-12 days

0

19

Ferris 5663658

Wire # 16 Ga. X 18" Lg.

$16.99

$

Usually ships in 2-12 days

0

20

Ferris 663334

Plastic Wire Cover

$

$

Currently unavailable

21

Tie Rap 8"

Note: (Obtain Locally)

$

$

Not available

22

Ferris 663305

Electric Support

$

$

Currently unavailable

23

Hex. Bolt 1/4" NC x 1/2"

Note: (Obtain Locally)

$

$

Not available

24

Ferris 663299

Wiring Clamp

$

$

Currently unavailable
