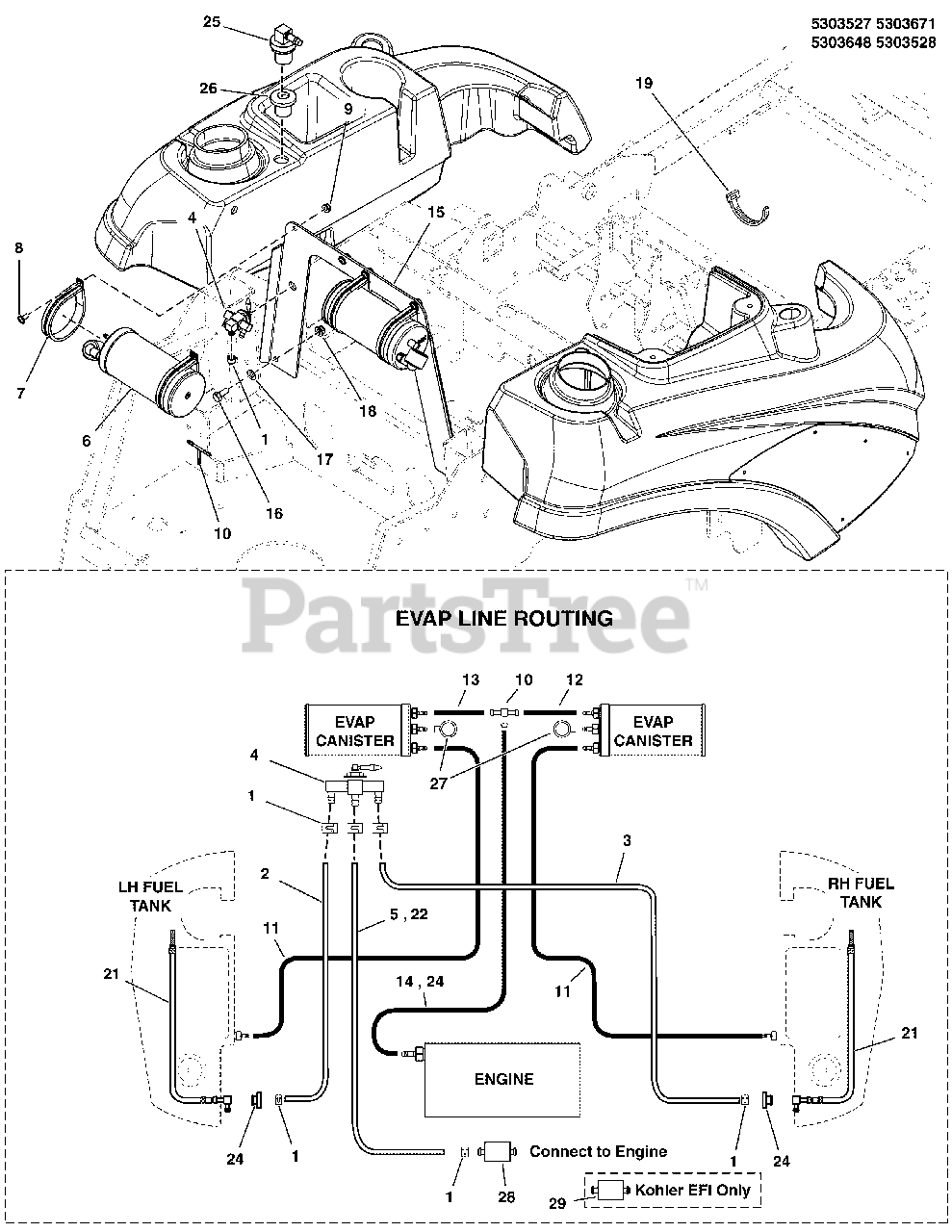

5901305 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton Fuel Supply Hose, Tank Replacement Parts, & EVAP Canister Group (5303527_5303671_5303648_5303528) Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton

Fuel Supply Hose, Tank Replacement Parts, & EVAP Canister Group (5303527_5303671_5303648_5303528) Parts Diagram

  • Title

1

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5050831X9YP

HOSE, 1/4" FUEL, 9.00"

$6.99

$

Usually ships in 2-12 days

0

3

Simplicity 5050831X27SM

HOSE, 1/4" FUEL, 27.00"

$17.99

$

Usually ships in 2-12 days

0

4

Simplicity 5023359SM

VALVE, FUEL SHUT-OFF, 12773

$58.99

$

Usually ships in 2-12 days

0

5

Simplicity 5050831X17P5YP

HOSE, 1/4" FUEL, 17.50"

Note: (Briggs & Stratton 49R977)

$7.99

$

Usually ships in 2-12 days

0

6

Simplicity 313036YP

CNSTR, CARB, 6 GAL

$

$

Not available

7

Simplicity 5103055YP

CLAMP, 3" ID, CUSHIONED, STAINLESS

$7.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025299X6SM

SCREW,1/4-20X3/4, ZINC PHOS & OIL

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE

Note: (5025391)

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 5103062YP

FITTING, 3/16" TEE, BARB TYPE, HDPE

$10.99

$

Usually ships in 2-12 days

0

11

Simplicity 7700552X10P5YP

HOSE, VAPOR, 5MM ID, 10.50 LG
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 4 left!

0

12

Simplicity 7700552X18YP

HOSE, VAPOR, 5MM ID, 18.00 LG
(Superseded to 7700552X22YP)

$8.99

$

Usually ships in 2-12 days

0

13

Simplicity 7700552X4P5YP

HOSE, VAPOR, 5MM ID, 4.50 LG

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 7700552X33YP

HOSE, VAPOR, 5MM ID, 33.00 LG
(Superseded to 315826GS)

Note: (Briggs & Stratton 49R977)

$13.99

$

In Stock, only 1 left!

0

15

Simplicity 5411958AYP

PLATE, MOUNT, CANISTER, IS2100Z - BLK

$58.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

17

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

19

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

21

Simplicity 5101144SM

HOSE ASSEMBLY (SV)

$35.99

$

Usually ships in 2-12 days

0

22

Simplicity 5050831X10SM

HOSE, 1/4" FUEL, 10.00"

Note: (Briggs & Stratton 543777)

$

$

Not available

23

Simplicity 7700552X20P5YP

HOSE, VAPOR, 5MM ID, 20.50 LG

Note: (Briggs & Stratton 543777)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 19

0

25

Simplicity 7104638YP

REMOTE, VENT ASSEMBLY, NO VALVE (SV)

$

$

Not available

26

Simplicity 209043YP

GROMMET (SV)

$

$

Not available

27

Simplicity 1752800YP

DUST FILTER, CANISTER (SV)

$15.99

$

Usually ships in 2-12 days

0

28

Simplicity 5021178X3SM

FUEL FILTER (SV)

$

$

Not available

29

Simplicity 5103790X5YP

FUEL FILTER, 29HP KOH, EFI, 25 050 42 (SV)

$18.99

$

Usually ships in 2-12 days

0
