5901305 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton Parking Brake Group (5303400) Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton

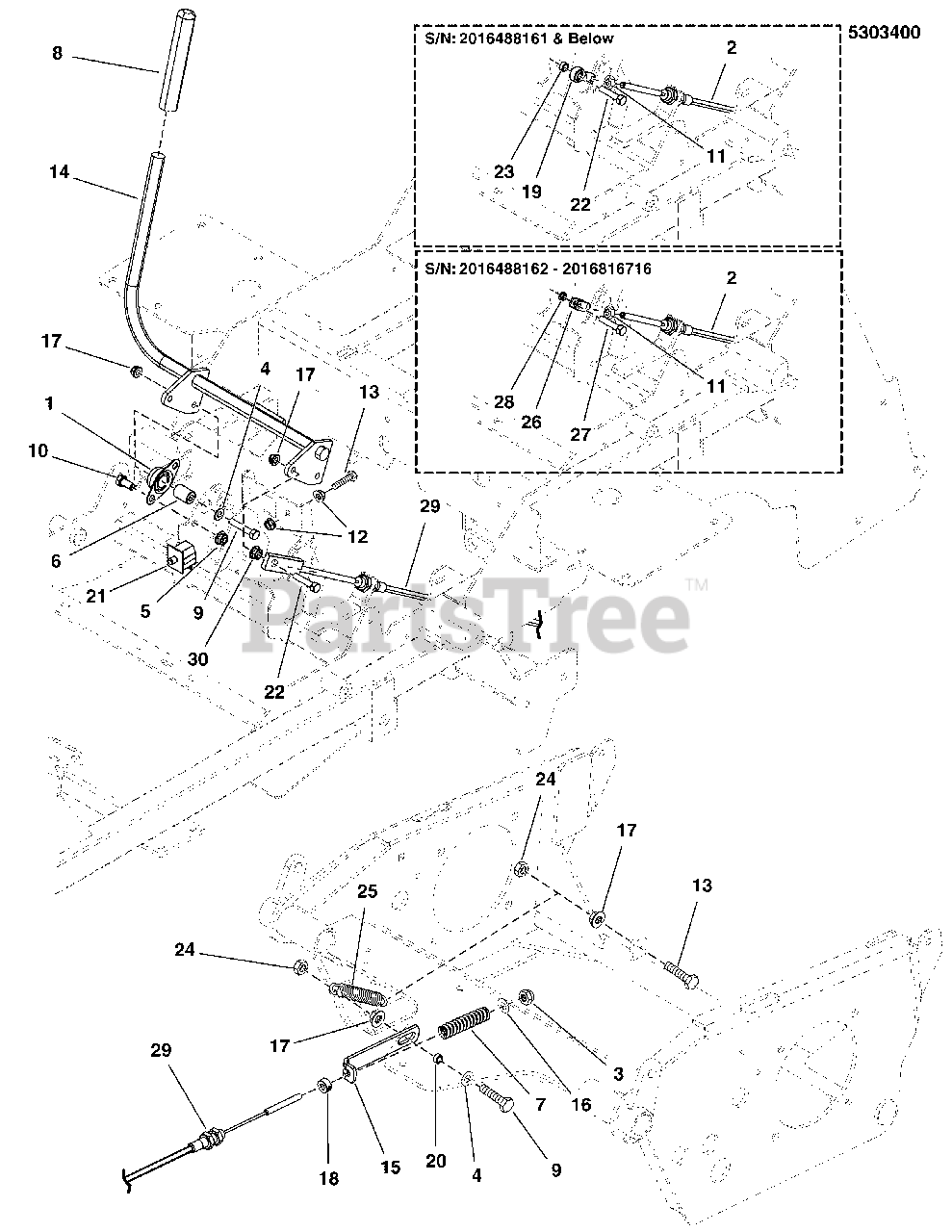

Parking Brake Group (5303400) Parts Diagram

  • Title

1

BEARING, BRONZE FLANGE, 3/4

$

$

Not available

2

Simplicity 5103949YP

REPLACE WITH 5600817YP - BRAKE CABLE REPLACEMENT KIT
(Superseded to 5600817YP)

Note: (S/N: 2016816716 & Below)

$68.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

4

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5042134SM

SPACER, .32 X .75 X 1.06, PM

$6.49

$

Usually ships in 2-12 days

0

7

Simplicity 5100385YP

SPRING, COMP. 1/2 ID X .140 WIRE X 3.25

$9.49

$

Usually ships in 2-12 days

0

8

Simplicity 5101038SM

GRIP, FOAM, 3/4 ID X 6 X .187

$7.49

$

In Stock, only 1 left!

0

9

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X6SM

BOLT, 3/8-16 X 3/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025033SM

NUT, 5/16-24 HEX
(Superseded to 703331)

Note: (S/N: 2016816716 & Below)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

$3.49

$

In Stock, Qty 9

0

13

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4 GD5 YZ

$3.99

$

In Stock, only 3 left!

0

14

Simplicity 5411384AYP

WELD, BRAKE SHAFT - BLK

$97.99

$

Usually ships in 2-12 days

0

15

Simplicity 5411363AYP

LINK, BRAKE LOCK - BLK

$9.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025337SM

WASHER, 5/16 USS
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

18

Simplicity 5020047SM

COLLAR, 5/16 SET

$7.49

$

Usually ships in 2-12 days

0

19

REPLACE WITH 5600817YP - BRAKE CABLE REPLACEMENT KIT

Note: (S/N: 2016488161 & Below)

$

$

Not available

20

Simplicity 5102463YP

SPACER, .33 X .50 X .25, CZ

$5.49

$

Usually ships in 2-12 days

0

21

SWITCH (SEE ELECTRICAL GROUP)

$

$

Not available

22

Simplicity 5025011X12SM

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025055X12SM)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 5103767YP

SPACER, .33 X .625 X .360, CZ

Note: (S/N: 2016488161 & Below)

$7.49

$

Usually ships in 2-12 days

0

24

Simplicity 703164

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL

Note: (80003675)

$3.49

$

In Stock, Qty 10

0

25

Simplicity 5103969YP

SPRING, EXTENSION, .521 X 4.12, BLACK

$14.99

$

Usually ships in 2-12 days

0

26

Simplicity 5104316YP

CLEVIS, 5/16-24, PL, SHORT

Note: (S/N: 2016488162 - 2016816716)

$8.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4 GD5 CZ

Note: (S/N: 2016488162 - 2016816716)

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025127SM

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

Note: (S/N: 2016488162 - 2016816716)

$3.49

$

In Stock, Qty 9

0

29

Simplicity 5104235YP

CABLE, PARKING BRAKE, 32"

Note: (S/N: 2016816717 & Above)

$101.99

$

Usually ships in 2-12 days

0

30

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

Note: (S/N: 2016816717 & Above)

$3.49

$

In Stock, only 2 left!

0
