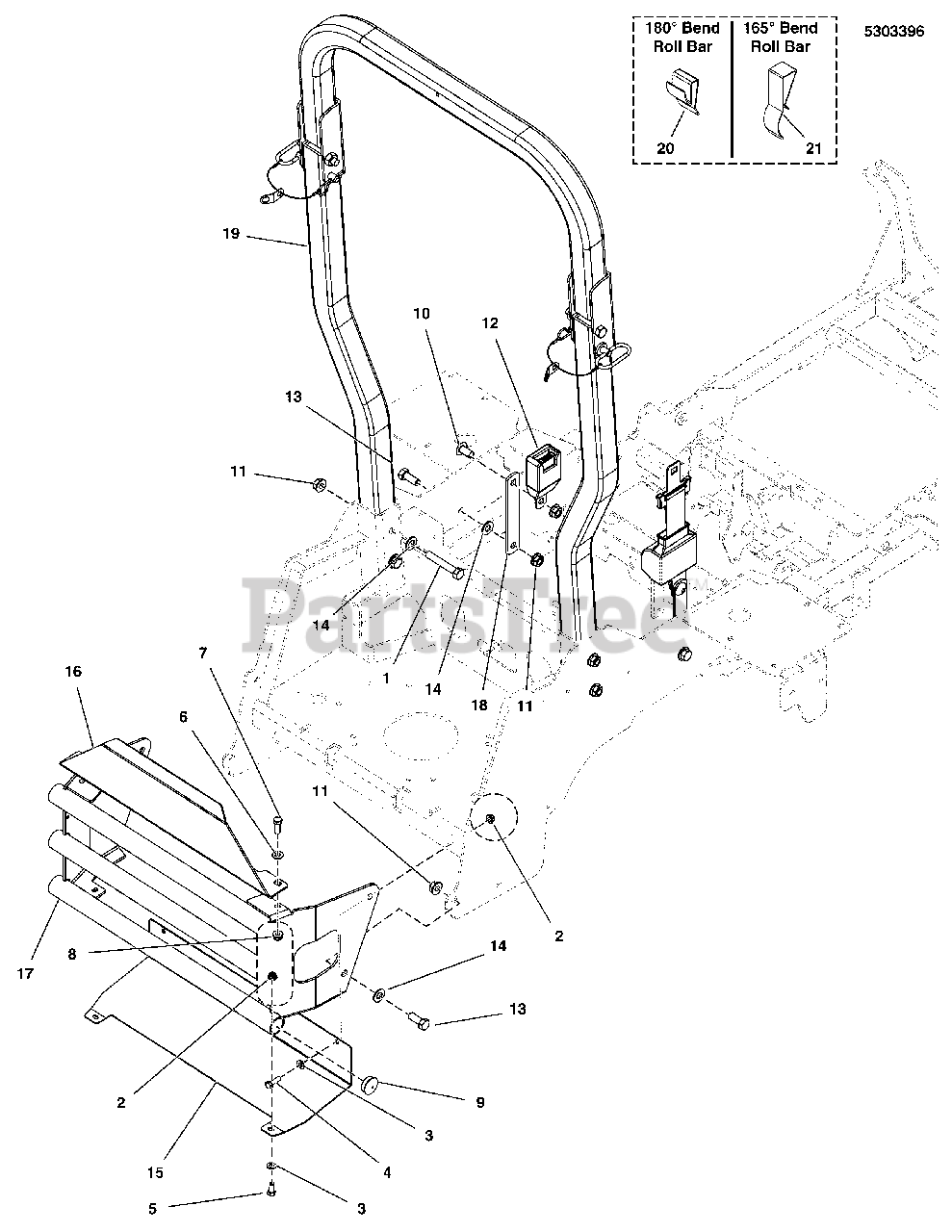

5901338 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton Rear Bumper & ROPS Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Briggs & Stratton

Rear Bumper & ROPS Group Parts Diagram

  • Title

1

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3" GD5

$5.99

$

In Stock, only 2 left!

0

2

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 9

0

3

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, Qty 6

0

5

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, Qty 6

0

6

Simplicity 5025293SM

WASHER, 3/8 GD.9 FLAT

$3.99

$

In Stock, Qty 7

0

7

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, only 4 left!

0

8

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5023484SM

PLUG, PANEL, 1.25 - BLACK

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 5100267SM

SCREW, 1/2-13 X 1.00, SHCS

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

12

Simplicity 5100139SM

SEAT BELT, RETRACTING - ASSM

$103.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025017X10YP

BOLT, 1/2-13 X 1-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025158SM

WASHER, 1/2 SAE

$3.99

$

In Stock, Qty 13

0

15

Simplicity 5410485AYP

PLATE, HEAT SHIELD, IS700 - BLK

$69.99

$

Usually ships in 2-12 days

0

16

Simplicity 5410486BYP

PLATE, CARB PROTECTOR - RED

$

$

Not available

17

Simplicity 5410483BYP

WELD, BUMPER - IS700 - RED

$

$

Not available

18

Simplicity 5410295AYP

BAR, MOUNT, SEAT BELT, IS700Z - BLK

$7.49

$

Usually ships in 2-12 days

0

19

ROPS (Call 1-800-933-6175 ex.707 for ROPS service)

$

$

Not available

20

Simplicity 5103403X1YP

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 5105140X1YP

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0
