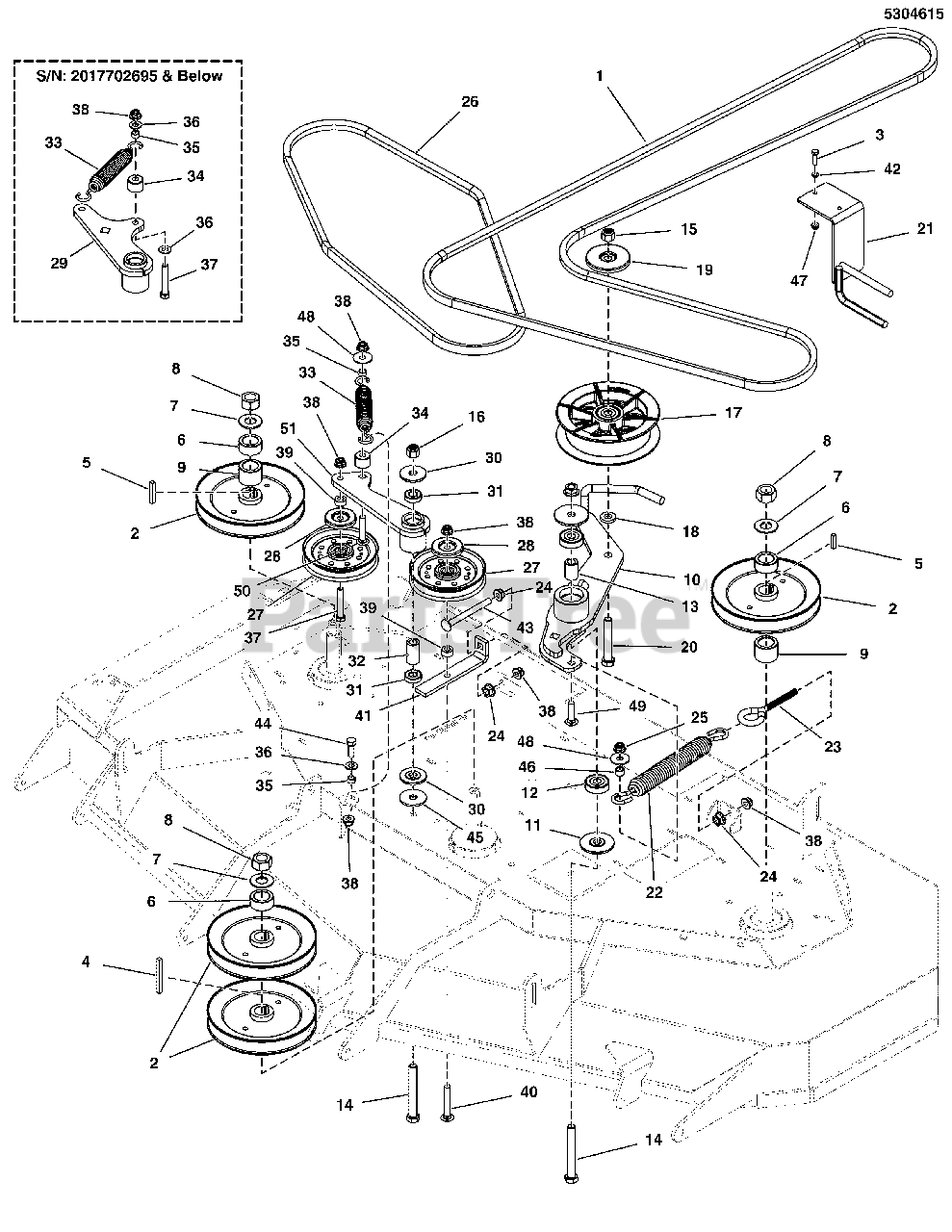

5901594 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck Group - Pulleys, Belts & Idler Arms - 2-Belt System Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

61" Mower Deck Group - Pulleys, Belts & Idler Arms - 2-Belt System Parts Diagram

  • Title

1

Simplicity 5104982YP

BELT, 5V/SPB, 138.50 EL, LG ARAMID, WRPD

$102.99

$

Usually ships in 2-12 days

0

2

Simplicity 5105004YP

PULLEY, SPNDL, 7.032"OB X .985"ID

$48.99

$

In Stock, only 1 left!

0

3

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5050407X18SM

KEY, 1/4" SQ. X 2 1/4

$4.49

$

In Stock, only 1 left!

0

5

Simplicity 5050407X8SM

KEY, 1/4 Square x 1

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5105047YP

SPACER, 1.00 X 1.50 X .70, BZ

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025406SM

WASHER, 3/4" Belleville (Included with Complete Spindle Assembly)
(Superseded to 770223)

$4.49

$

In Stock, only 3 left!

0

8

Simplicity 5025405SM

NUT, 3/4-16 Hex (Included with Complete Spindle Assembly)

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 5105048YP

SPACER, 1.00 X 1.50 X 1.14, BZ

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 5415288AYP

WELD, IDLER ARM, DECK DRIVE - BLK

$124.99

$

Usually ships in 2-12 days

0

11

Simplicity 5104379YP

SPACER, IDLER ARM, 1/2 X 2.25

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 5104383YP

BEARING, 6203-1/2", SEALED

$9.99

$

In Stock, only 4 left!

0

13

Simplicity 5104456YP

SPACER, .51 X .75 X 1.22, PM, CZ

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 5025017X32YP

BOLT, 1/2-13 X 4 GD5 YZ

$6.49

$

In Stock, only 1 left!

0

15

Snapper 5025056YP

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 9

0

16

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

17

Simplicity 5105009YP

PULLEY, IDLER, 5.50, CI, DBL BEARING
(Superseded to 84007049)

$84.99

$

Usually ships in 2-12 days

0

18

Simplicity 5100520SM

SPACER, .52 X 1.00 X .22, PM, CZ

$6.49

$

Usually ships in 2-12 days

0

19

Simplicity 5105041YP

SHIELD, PULLEY, 1/2"ID X 2-7/8"OD, CZ

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5025017X26SM

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, YZ

$5.49

$

In Stock, only 3 left!

0

21

Simplicity 5415993AYP

WELD, CLUTCH, BELT GUIDE - BLK

$56.99

$

Usually ships in 2-12 days

0

22

Simplicity 5105068YP

SPRING, EXT1.22"ODX10.5"FLX.192"WIRE BLK

$75.99

$

Usually ships in 2-12 days

0

23

Simplicity 5023497SM

EYEBOLT, 3/8-16 X 5, 2.88 THRD (5021812)

$9.49

$

In Stock, only 1 left!

0

24

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 5104780YP

BELT, B-SEC, 64.00 EL, ARAMID, WRPD

$48.99

$

Usually ships in 2-12 days

0

27

Snapper 5103456YP

PULLEY-IDLER-V, 4.85OB, .38ID
(Superseded to 84004874)

$33.99

$

Usually ships in 2-12 days

0

28

Simplicity 5105033YP

SHIELD, PULLEY, 3/8"ID X 2"OD, CZ

$3.49

$

In Stock, only 3 left!

0

29

REPLACE W/ 5416161A & 5025146X16

Note: (S/N: 2017702695 & Below)

$

$

Not available

30

Simplicity 5103262YP

SPACER, IDLER ARM, 1/2, PM

$7.99

$

In Stock, Qty 5

0

31

Simplicity 7078243YP

BEARING, 1.125" OD, .5" ID, .3125" Wide, Ball

$10.99

$

In Stock, Qty 6

0

32

Simplicity 5103812YP

SPACER, .52 X .84 X 1.53, PM

$7.99

$

In Stock, only 2 left!

0

33

Simplicity 5022847SM

SPRING, Extension (48" Model - SN: 426 & up)(52: Model - SN: 351 & up)

$34.99

$

Usually ships in 2-12 days

0

34

Simplicity 5043815YP

SPACER, .39 X 1.00 X .75, CZ

$10.99

$

Usually ships in 2-12 days

0

35

Simplicity 5041930SM

SPACER, .38 X .50 X .27, CZ

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

Note: (Qty: 3 - S/N: 2017702695 & Below)

$3.99

$

In Stock, Qty 14

0

37

Simplicity 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

Note: (Qty: 2 - S/N: 2017702695 & Below)

$3.99

$

In Stock, only 2 left!

0

38

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

39

Simplicity 5105429YP

SPACER, .39 X 1.00 X .38

$3.99

$

In Stock, only 1 left!

0

40

Simplicity 5025146X20YP

BOLT, 3/8-16 X 2-1/2, CARRIAGE, GD5, CZ
(Superseded to 84005878)

$2.49

$

Usually ships in 2-12 days

0

41

Simplicity 5415374AYP

PLATE, IDLER PULLER - BLK

$12.99

$

Usually ships in 2-12 days

0

42

Simplicity 703332

WASHER, 1/4, Flat, GR5 Zinc/Clear

Note: (5025154)

$4.49

$

In Stock, Qty 11

0

43

Simplicity 5025146X36YP

BOLT, 3/8-16 X 4-1/2, CARRIAGE, GD5, CZ

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

45

Simplicity 5103282YP

WASHER, .52 X 1.75 X .14, CZ

$3.99

$

In Stock, only 1 left!

0

46

Simplicity 5105297YP

SPACER, .39 X .63 X .375, DOM

$5.99

$

In Stock, only 2 left!

0

47

Simplicity 703463

NUT, 1/4-20, GR5 Flanged Nylock, Zinc/Clear

Note: (5025391)

$4.49

$

In Stock, only 3 left!

0

48

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 3 left!

0

49

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$3.99

$

In Stock, only 1 left!

0

50

Simplicity 5025146X16SM

BOLT, 3/8-16 X 2, CARRIAGE, GD5, CZ

Note: (S/N: 2017702696 & Above)

$4.49

$

Usually ships in 2-12 days

0

51

Simplicity 5416161AYP

WELD, IDLER ARM, 2 BELT DRIVE - BLK

Note: (S/N: 2017702696 & Above)

$62.99

$

In Stock, only 1 left!

0
