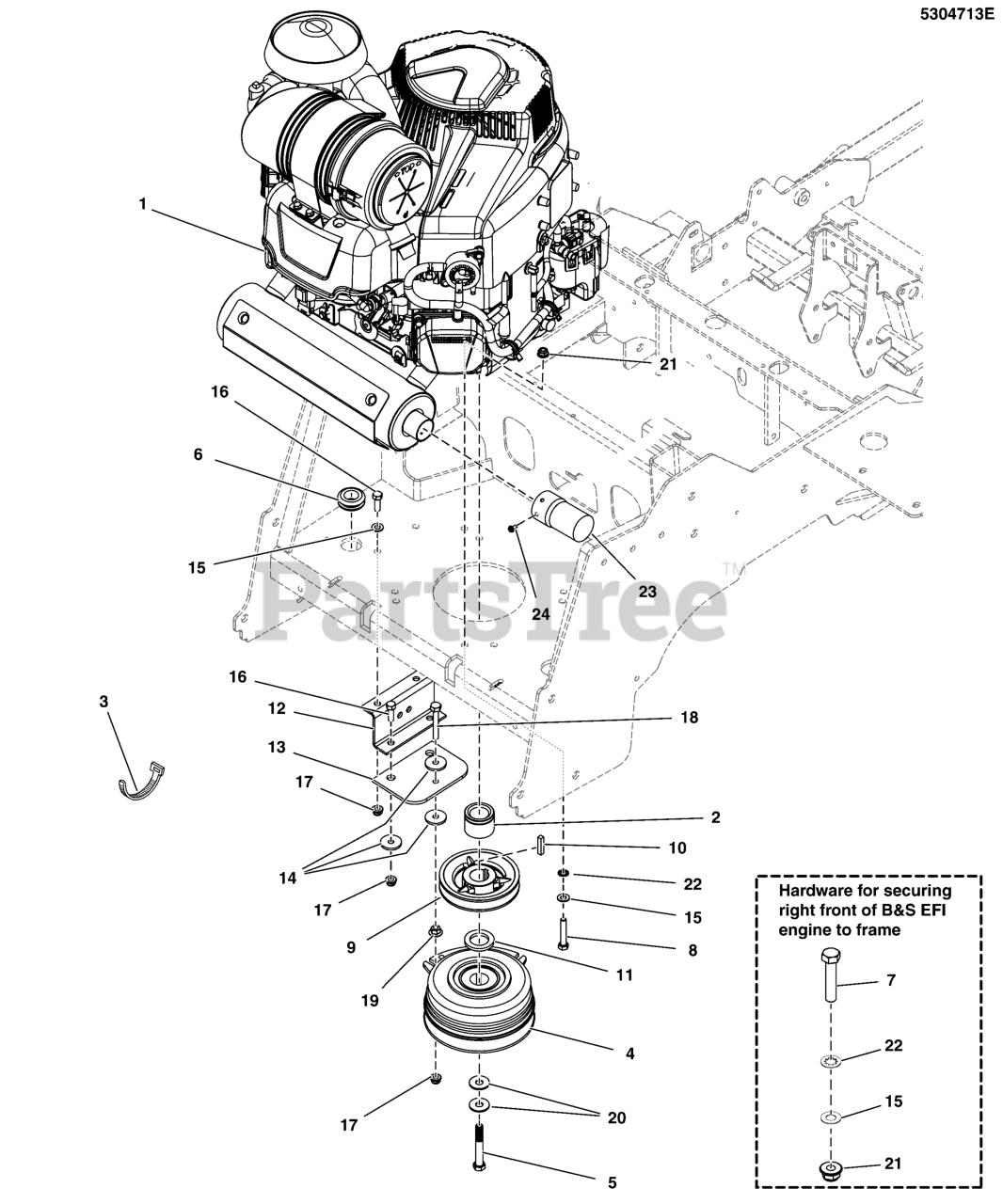

5901748 - Simplicity Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) Parts Diagram

Cobalt 61" Zero-Turn Mower, 28hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) Parts Diagram

  • Title

1

ENGINE, 28HP EFI, B&S, W/MUF, OIL GUARD

Note: (Muffler available through engine manufacturer)

$

$

Not available

2

Simplicity 5100926YP

SPACER, 1.13 X 1.75 X 1.35, CZ

$27.99

$

In Stock, only 1 left!

0

3

Simplicity 5101492YP

TIE,SELF-LOCKING, 24"

Note: (Secures PTO Clutch wire to Clutch Anchor)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5105090YP

CLUTCH, WARNER, 200 FT-LB, 1.13" X 6.323

$456.99

$

Usually ships in 2-12 days

0

5

Simplicity 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

Note: (Torque clutch mounting bolt to 65 ft-lbs (88 Nm)

$5.49

$

Usually ships in 2-12 days

0

6

Simplicity 5103944YP

GROMMET, 7/8"ID, 1/4" THICK STK

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025025X12YP

BOLT-HEX, 5/16-24 X 1-1/2", GD8, PHOS

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025025X14YP

BOLT, 5/16-24 X 1-3/4, GD8, PHOS

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 5021682YP

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48

$48.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5046904YP

SPACER, 1.13 X 1.75 X .25

$17.99

$

In Stock, only 1 left!

0

12

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

13

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

14

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

15

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, Qty 6

0

17

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 9

0

18

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

19

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

20

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

$3.99

$

In Stock, only 1 left!

0

23

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3", BLACK

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025470YP

SCREW,SELF-TAP,#8-32 X 3/8, WASH HEX, CZ

$3.49

$

Usually ships in 2-12 days

0
