5901779 - Simplicity Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton Electrical Group Parts Diagram

Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton

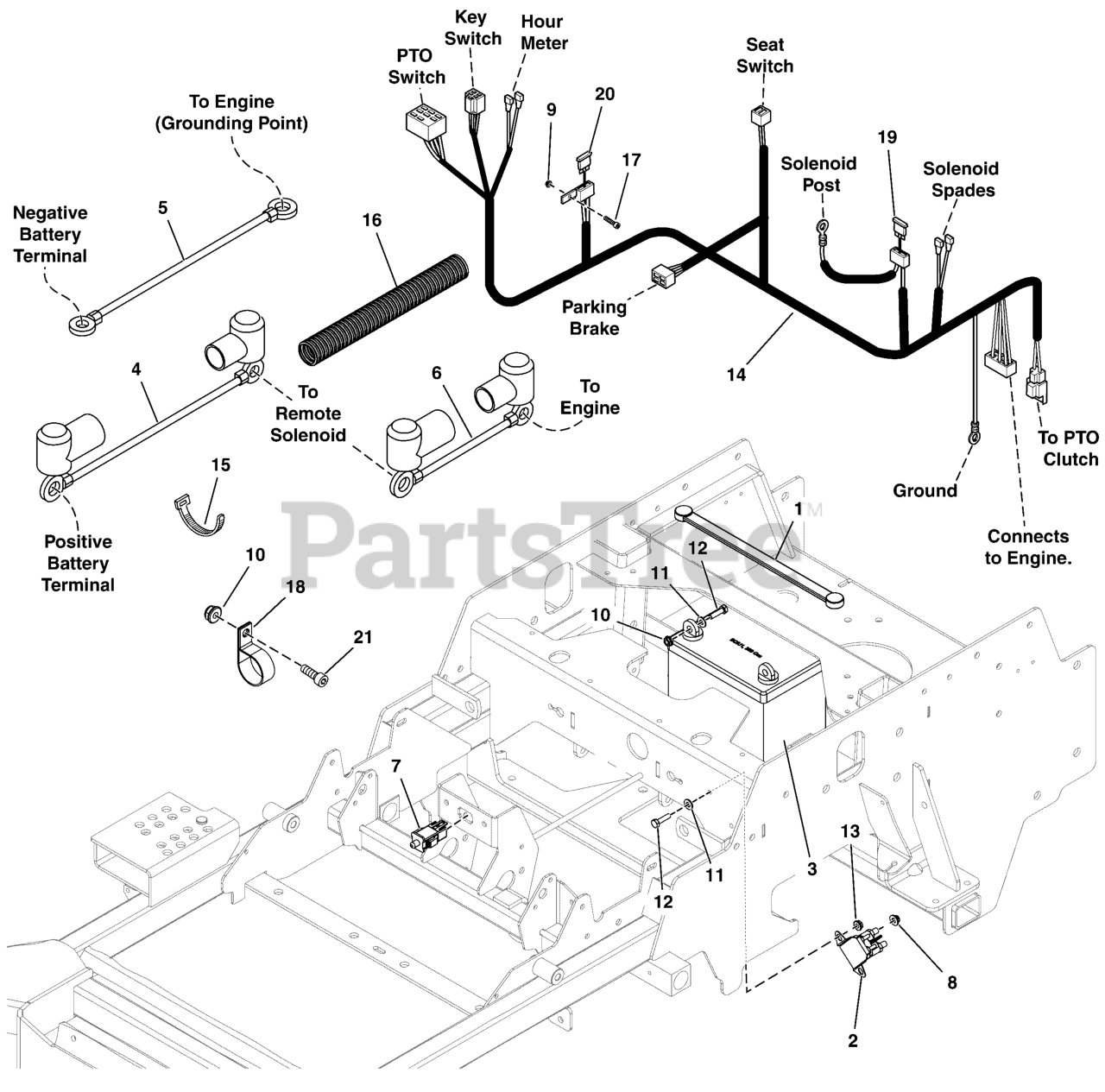

Electrical Group Parts Diagram

  • Title

1

Simplicity 1722009SM

STRAP, Rubber, 13"

$10.99

$

In Stock, only 1 left!

0

2

Simplicity 1755382YP

SOLENOID, 1/4-20 STD, 2 Spade

$29.99

$

In Stock, Qty 10

0

3

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

4

Simplicity 5021405SM

BATTERY CABLE, POS, 22, 1/4-5/16

$18.99

$

Usually ships in 2-12 days

0

5

Simplicity 5047690SM

BATTERY CABLE, NEG, 14, 5/16-13/32

$16.99

$

In Stock, only 1 left!

0

6

Simplicity 5023488SM

BATTERY CABLE, POS, 22, 1/4-5/16

$27.99

$

Usually ships in 2-12 days

0

7

Simplicity 7022886YP

SWITCH, DP, NO/NC, Snap-In

$14.99

$

In Stock, Qty 20+

0

8

Simplicity 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, only 3 left!

0

9

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, Qty 12

0

10

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, only 1 left!

0

11

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

12

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 13

0

13

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 5105536YP

HARNESS, SMALL, ZTR WIRING

$198.99

$

Usually ships in 2-12 days

0

15

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

16

Simplicity 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025179X6SM

SCREW, #10-24 X 3/4", ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5021603SM

FUSE, ATO, 20 AMP (SV)

$4.99

$

In Stock, only 2 left!

0

20

Simplicity 5101935YP

FUSE, ATO, 15 AMP (SV)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 5025299X6SM

CAPSCREW, Button Allen Head, 1/4-20 x 3/4

$3.49

$

Usually ships in 2-12 days

0
