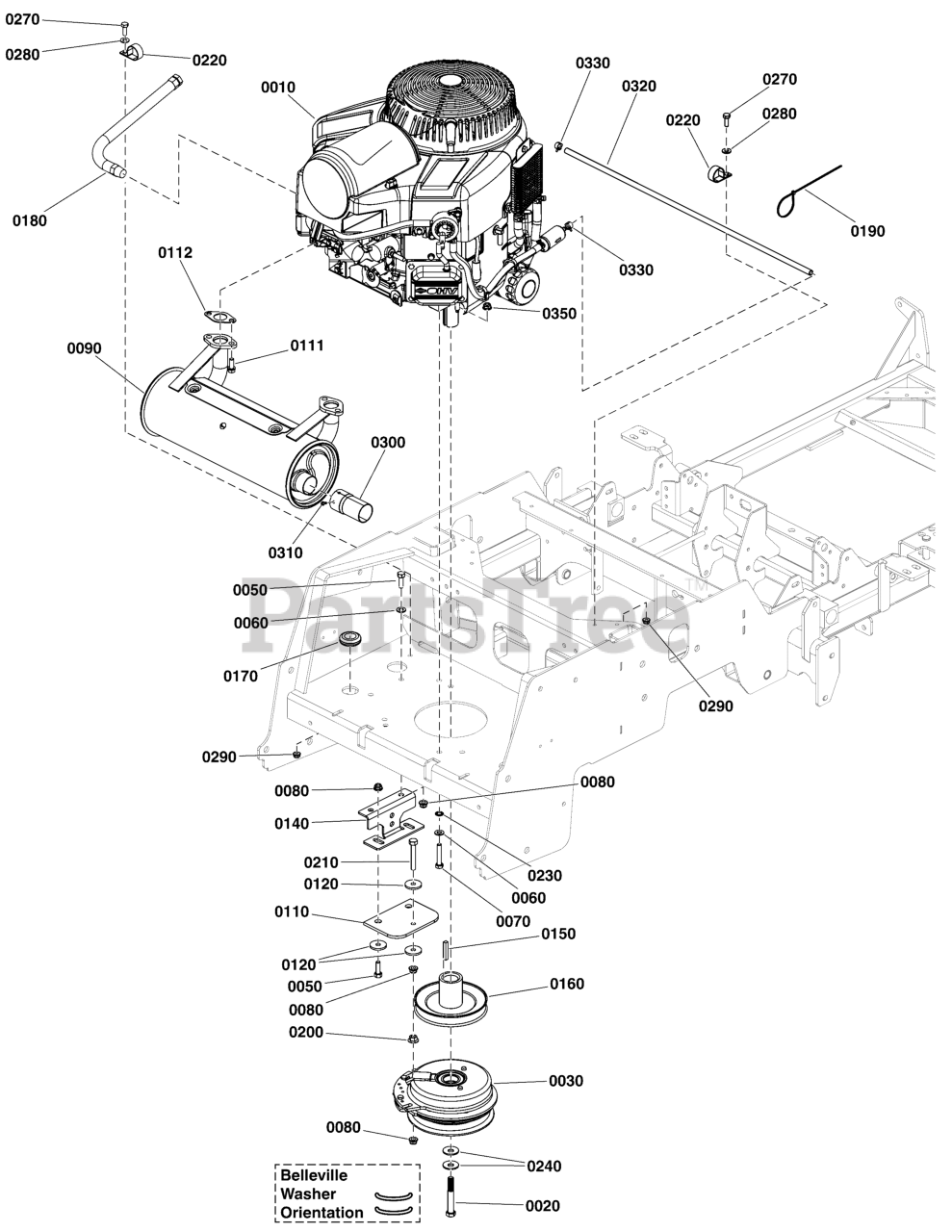

5901779 - Simplicity Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton Engine and PTO Group - Briggs & Stratton 49T877 Parts Diagram

Citation XT 52" Zero-Turn Mower, 27hp Briggs & Stratton

Engine and PTO Group - Briggs & Stratton 49T877 Parts Diagram

  • Title

0010

Simplicity 49T877-0010-G1

ENGINE, 27HP B&S COMM TURF, 1-1/8 X 4.29

Note: (Refer to Note: *)

$2467.99

$

Usually ships in 2-12 days

0

0020

Simplicity 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

Note: (Torque clutch mounting bolt to 65 FT-LBS (88Nm))

$5.49

$

Usually ships in 2-12 days

0

0030

Simplicity 5105090YP

CLUTCH, WARNER, 200 FT-LB, 1.13" X 6.323

$456.99

$

Usually ships in 2-12 days

0

0030-10

Simplicity 5600575YP

KIT, CLUTCH WIRE REPAIR

$68.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 4 left!

0

0060

Simplicity 703302

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 5025025X14YP

BOLT, 5/16-24 X 1-3/4, GD8, PHOS

Note: (Torque engine mounting bolt to 17 FT-LBS (23 Nm)

$4.49

$

Usually ships in 2-12 days

0

0080

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 9

0

0090

Simplicity 706900

MUFFLER, RIGHT OUTLET ASSY

$222.99

$

In Stock, only 2 left!

0

0110

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

0111

Simplicity 690341

SCREW

$5.99

$

In Stock, only 2 left!

0

0112

Simplicity 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 14

0

0120

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

0140

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

0150

Simplicity 5022726YP

KEY 1/4 SQ X 1 1/2 LONG

$4.99

$

Usually ships in 2-12 days

0

0160

Simplicity 5105108YP

PULLEY, CRANKSHAFT 1.1255"ID X 5.318" OB

$64.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5021379SM

GROMMET, 7/8"

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

0190

Simplicity 5101492YP

TIE,SELF-LOCKING, 24"

$3.49

$

Usually ships in 2-12 days

0

0200

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

0210

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

0220

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

0230

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

$3.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 2 left!

0

0270

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 13

0

0280

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0290

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 1 left!

0

0300

Simplicity 5104348YP

EXTENSION, TAILPIPE, 3", BLACK

$14.99

$

Usually ships in 2-12 days

0

0310

Simplicity 5025470YP

SCREW,SELF-TAP,#8-32 X 3/8, WASH HEX, CZ

$3.49

$

Usually ships in 2-12 days

0

0320

Simplicity 5050831X29SM

HOSE, 1/4" FUEL, 29.00"

$20.99

$

Usually ships in 2-12 days

0

0330

Simplicity 691038

CLAMP, Hose

$3.99

$

In Stock, only 1 left!

0

0350

Simplicity 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

Usually ships in 2-12 days

0
