5901793 - Ferris Hurricane Z3 Series Stand-On Blower Hydraulic and Control Lever Group Parts Diagram

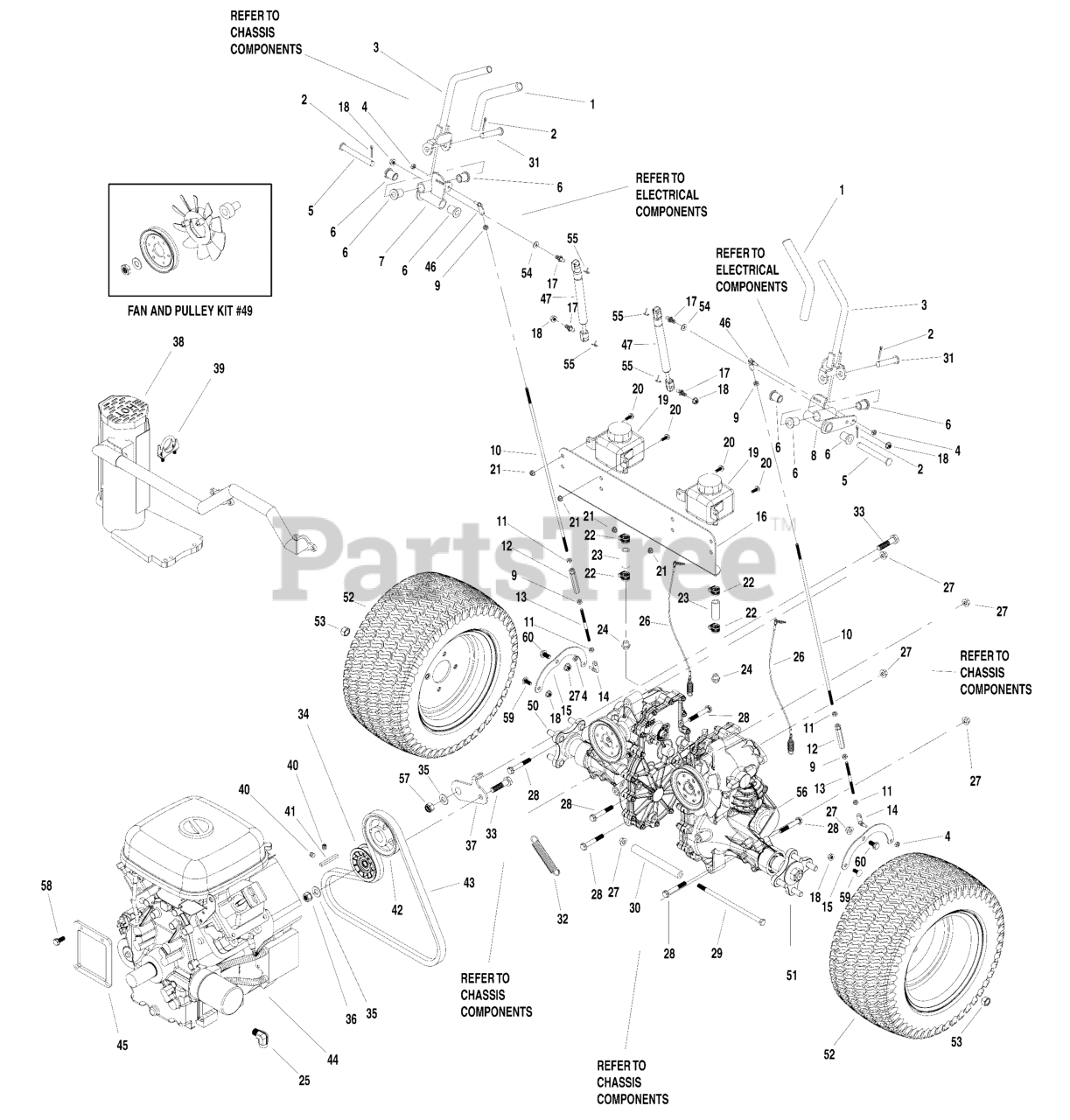

Hurricane Z3 Series Stand-On Blower

Hydraulic and Control Lever Group Parts Diagram

  • Title

1

Ferris 5106940

GRIP, CONTROL, 9-1/2
(Superseded to 5106940FS)

$18.99

$

Usually ships in 2-12 days

0

2

Ferris 5025203X12

PIN, COTTER, 1/8 X 1 1/2, CZ

$

$

Currently unavailable

2

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

3

Ferris 5106871

NUT, 1/4-20, SERRATED FLANGE, YZ
(Superseded to 5025126)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5106892

NUT, 1/4-28, NYLOCK, CZ
(Superseded to 5106892FS)

$2.49

$

Usually ships in 2-12 days

0

5

Ferris 5106914

PIN, CLEVIS, 1/2 X 4-1/2, YZ

$8.49

$

Usually ships in 2-12 days

0

6

Ferris 5106943

BUSHING, 1/2 X 3/4 X 1F
(Superseded to 5106943FS)

$4.49

$

In Stock, only 2 left!

0

7

Ferris 5107367

WELD, CONTROL SWITCH BRACKET RH, CZ
(Superseded to 5107367FS)

$61.99

$

Usually ships in 2-12 days

0

8

Ferris 5107369

WELD, CONTROL SWITCH BRACKET LH, CZ
(Superseded to 5107369FS)

$61.99

$

Usually ships in 2-12 days

0

9

Ferris 5106853

NUT, 1/4-28, RH, GD5 CZ (15081)
(Superseded to 7090095)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5107108

ROD, 1/4-28 X 21
(Superseded to 5107108FS)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5106858

NUT, 1/4-28, LH, YZ
(Superseded to 5106858FS)

$2.49

$

Usually ships in 2-12 days

0

12

Ferris 5106971

TURNBUCKLE, 1/4-28 X 3
(Superseded to 5106971FS)

$9.49

$

Usually ships in 2-12 days

0

13

Ferris 5107303

ROD 1/4-28 X 4-1/2" YZ
(Superseded to 5107303FS)

$13.99

$

Usually ships in 2-12 days

0

14

Ferris 5107039

KNUCKLE, 1/4-28 X 90DEG, LH (106-17-4637)

$7.49

$

Usually ships in 2-12 days

0

15

Ferris 5107241

ARM, TRANSMISSION CONTROL (X3-1520)
(Superseded to 5107241FS)

$6.99

$

Usually ships in 2-12 days

0

16

Ferris 5107366AA

MOUNT, OIL RESERVOIR - BLK
(Superseded to 5107366AAFS)

$28.99

$

Usually ships in 2-12 days

0

17

Ferris 5106968

BALL, STUD
(Superseded to 5100941)

$4.49

$

Usually ships in 2-12 days

0

18

Ferris 5106877

NUT, 5/16-18, FLANGE, YZ
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

19

Ferris 5107299

TANK, HYDRO
(Superseded to 5100473)

$40.99

$

In Stock, only 1 left!

0

20

Ferris 5106872

BOLT, 1/4-20 X 3/4, FLANGE, CZ
(Superseded to 5106872FS)

$2.49

$

Usually ships in 2-12 days

0

21

Ferris 5106871

NUT, 1/4-20, SERRATED FLANGE, YZ
(Superseded to 5025126)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5106855

CLAMP, OETIKER

$2.49

$

Usually ships in 2-12 days

0

23

Ferris 5107301

HOSE, HYDRO
(Superseded to 5050857X2P75)

$5.49

$

Usually ships in 2-12 days

0

24

Ferris 5107224

FITTING, STRAIGHT 7/16-20 UNF
(Superseded to 5107224FS)

$13.99

$

Usually ships in 2-12 days

0

25

Ferris 5107284

VALVE, OIL DRAIN
(Superseded to 5107284FS)

$46.99

$

Usually ships in 2-12 days

0

26

Ferris 5107300

CABLE, HYDRO NEUTRAL RLS
(Superseded to 5107300FS)

$36.99

$

Usually ships in 2-12 days

0

27

Ferris 5106880

NUT, 3/8-16, FLANGE

$2.49

$

Usually ships in 2-12 days

0

28

Ferris 5106859

BOLT, 3/8-16 X 2-1/2, FLANGE, CZ
(Superseded to 5106859FS)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5106844

BOLT, 3/8-16 X 9-1/2, CZ

$15.99

$

Usually ships in 2-12 days

0

30

Ferris 5107370

SPACER, .75 OD X 6.40 LONG, 10GA
(Superseded to 5107370FS)

$22.99

$

Usually ships in 2-12 days

0

31

Ferris 5106832

PIN, CLEVIS, 1/2 X 2-1/2, YZ

$5.49

$

Usually ships in 2-12 days

0

32

Ferris 5106923

SPRING, IDLER, #98
(Superseded to 5106923FS)

$10.99

$

Usually ships in 2-12 days

0

33

Ferris 5106907

BOLT, 1/2-13 X 2, CZ

$2.99

$

Usually ships in 2-12 days

0

34

Ferris 5107103

PULLEY IDLER 3.0 OD .506ID .75
(Superseded to 5107103FS)

$24.99

$

In Stock, only 2 left!

0

35

Ferris 5106885

WASHER, 1/2 SAE, YZ (15124)

$2.49

$

Usually ships in 2-12 days

0

36

Ferris 5106787

NUT, 1/2-13 SERRATED FLANGE, CZ
(Superseded to 5106787FS)

$2.49

$

Usually ships in 2-12 days

0

37

Ferris 5107365

IDLER ARM (ZF15052)
(Superseded to 5107365FS)

$30.99

$

Usually ships in 2-12 days

0

38

Ferris 5107306

KIT, MUFFLER, Z3

$355.99

$

Usually ships in 2-12 days

0

39

Ferris 5107305

CLAMP, MUFFLER, Z3000
(Superseded to 5107305FS)

$6.49

$

In Stock, Qty 5

0

40

Ferris 5107062

SET SCREW, 5/16-18, BLK

$1.49

$

Usually ships in 2-12 days

0

41

Ferris 5106826

KEY, 1/4 SQ X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

42

Ferris 5107285

PULLEY, DRIVE
(Superseded to 5107285FS)

$64.99

$

In Stock, only 2 left!

0

43

Ferris 5106821

BELT, DRIVE, Z3000
(Superseded to 5106821FS)

$32.99

$

In Stock, only 1 left!

0

44

ENGINE, VANGUARD - 35

Note: (Refer to Note: *)

$

$

Not available

45

Ferris 5107511

PLATE, SPACER, Z3, CZ
(Superseded to 5107511FS)

$47.99

$

Usually ships in 2-12 days

0

46

Ferris 5106970

KNUCKLE, 1/4-28 X 90, RH (103-17-4633)

$5.99

$

Usually ships in 2-12 days

0

47

Ferris 5107193

DAMPENER
(Superseded to 5107193FS)

$55.99

$

Usually ships in 2-12 days

0

48

Ferris 5107297

STUD, DAMPER BALL

Note: (Not illustrated)

$15.99

$

Usually ships in 2-12 days

0

49

Ferris 5107253

KIT, FAN/PULLEY

$110.99

$

Usually ships in 2-12 days

0

50

Ferris 5107227

TRANSAXLE, ZT3100, RH, ZJ-LPRP-3A7C-19XX
(Superseded to 84006961)

$1244.99

$

Usually ships in 2-12 days

0

51

Ferris 5107222

TRANSAXLE, ZT3100, LH, ZJ-HPRP-3A7B-19XX
(Superseded to 84006962)

$1292.99

$

Usually ships in 2-12 days

0

52

Ferris 5107047

TIRE, 22 X 11-10 HT

$248.99

$

Usually ships in 2-12 days

0

53

Ferris 5106860

NUT, 1/2-20, LUG

$2.49

$

Usually ships in 2-12 days

0

54

Ferris 5106854

WASHER, 5/16, SPLIT LOCK, CZ (15082)
(Superseded to 5025170)

$3.99

$

In Stock, only 1 left!

0

55

Ferris 5106969

CLIP, DAMPER BALL STUD
(Superseded to 5106969FS)

$2.49

$

In Stock, only 2 left!

0

56

Ferris 5107213

FILTER, HYDRO OIL (425-52114)
(Superseded to 5101026X1)

$40.99

$

Usually ships in 2-12 days

0

57

Ferris 80002731

* NUT, Lock, 1/2-13

$

$

Not available

58

Ferris 5106834

BOLT, 3/8-16 X 1, SER FLG GD5, CZ (15062)
(Superseded to 5025390X8)

$3.49

$

Usually ships in 2-12 days

0

59

Ferris 5106879

BOLT, 5/16-18 X 3/4, CARRIAGE YZ

$1.99

$

Usually ships in 2-12 days
