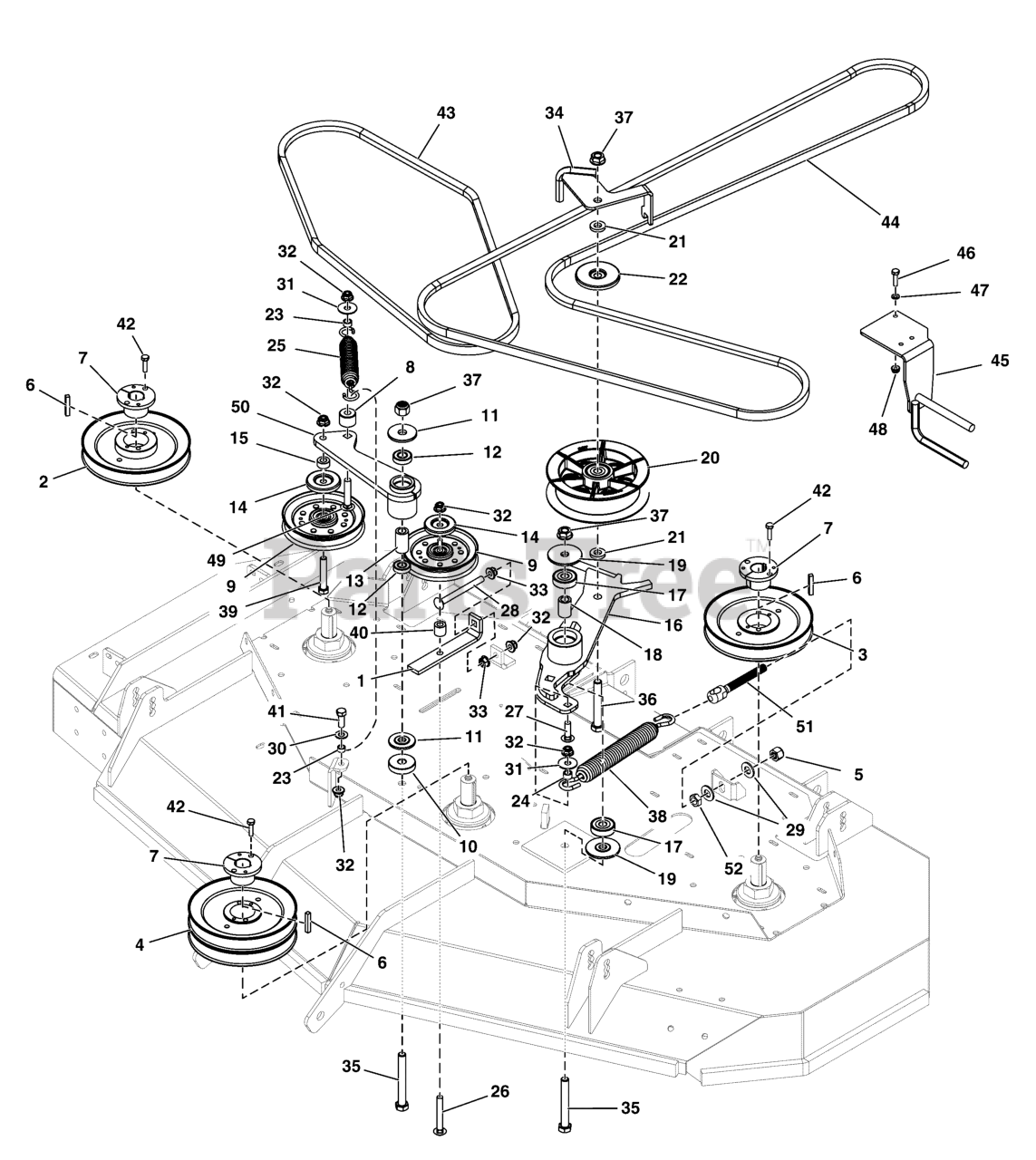

5901798 - Simplicity Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton 61" Mower Deck - Pulleys, Belts & Idler Arms (2 Belt System) Parts Diagram

Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton

61" Mower Deck - Pulleys, Belts & Idler Arms (2 Belt System) Parts Diagram

  • Title

1

Simplicity 5415374AYP

PLATE, IDLER PULLER - BLK

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 84003248

PULLEY

Note: (7.032"OB, HQ BORE - RH)

$58.99

$

Usually ships in 2-12 days

0

3

Simplicity 84003249

PULLEY

Note: (7.032"OB, HQ BORE - LH)

$47.99

$

Usually ships in 2-12 days

0

4

Simplicity 84003250

PULLEY

Note: (7.032"OB-DBL, HQ BORE)

$97.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022726YP

KEY 1/4 SQ X 1 1/2 LONG

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 5020819SM

BUSHING, TAPERED HUB

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 5043815YP

SPACER, .39 X 1.00 X .75, CZ

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 84004874

PULLEY, V-IDLER, 5"OD X 3/8", CZ, TE

$33.99

$

Usually ships in 2-12 days

0

10

Simplicity 84003251

SPACER

Note: (.52 X 1.75 X .420, CZ)

$5.49

$

Usually ships in 2-12 days

0

11

Simplicity 5103262YP

SPACER, Idler Arm

$7.99

$

In Stock, Qty 5

0

12

Simplicity 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 4 left!

0

13

Simplicity 5103812YP

SPACER

$7.99

$

In Stock, only 2 left!

0

14

Simplicity 5105033YP

SHIELD, PULLEY, 3/8"ID X 2"OD, CZ

$3.49

$

In Stock, only 3 left!

0

15

Simplicity 5105429YP

SPACER, .39 X 1.00 X .38

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 84003252

ARM, Idler

$100.99

$

Usually ships in 2-12 days

0

17

Simplicity 5104383YP

BEARING, 6203-1/2", SEALED

$9.99

$

In Stock, only 4 left!

0

18

Simplicity 5104456YP

SPACER, .51 X .75 X 1.22, PM, CZ

$4.49

$

In Stock, only 1 left!

0

19

Simplicity 5104379YP

SPACER, IDLER ARM, 1/2 X 2.25

$8.99

$

Usually ships in 2-12 days

0

20

Simplicity 5105009YP

PULLEY, IDLER, 5.50, CI, DBL BEARING
(Superseded to 84007049)

$84.99

$

Usually ships in 2-12 days

0

21

Simplicity 5100520SM

SPACER, .52 X 1.00 X .22, PM, CZ

$6.49

$

Usually ships in 2-12 days

0

22

Simplicity 5105041YP

SHIELD, PULLEY, 1/2"ID X 2-7/8"OD, CZ

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 5041930SM

SPACER, .38 X .50 X .27, CZ

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 5105297YP

SPACER, .39 X .63 X .375, DOM

$5.99

$

In Stock, only 2 left!

0

25

Simplicity 5022847SM

SPRING, Extension (48" Model - SN: 426 & up)(52: Model - SN: 351 & up)

$34.99

$

Usually ships in 2-12 days

0

26

Simplicity 5025146X20YP

BOLT, 3/8-16 X 2-1/2, CARRIAGE, GD5, CZ
(Superseded to 84005878)

$2.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$3.99

$

In Stock, only 1 left!

0

28

Simplicity 5025146X36YP

BOLT, 3/8-16 X 4-1/2, CARRIAGE, GD5, CZ

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 16

0

31

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 84003253

GUIDE, Belt

$43.99

$

Usually ships in 2-12 days

0

35

Simplicity 5025017X32YP

BOLT, 1/2-13 X 4 GD5 YZ

$6.49

$

In Stock, only 1 left!

0

36

Simplicity 5025017X28SM

CAPSCREW, Hex Hd, 1/2-13 x 3-1/2

$5.99

$

In Stock, only 2 left!

0

37

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

38

Simplicity 5105068YP

SPRING, EXT1.22"ODX10.5"FLX.192"WIRE BLK

$75.99

$

Usually ships in 2-12 days

0

39

Simplicity 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

40

Simplicity 5100334SM

SPACER

$7.49

$

In Stock, only 1 left!

0

41

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

42

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

43

Simplicity 5104780YP

BELT, B-SEC, 64.00 EL, ARAMID, WRPD

$48.99

$

Usually ships in 2-12 days

0

44

Simplicity 5104982YP

BELT, 5V/SPB, 138.50 EL, LG ARAMID, WRPD

$102.99

$

Usually ships in 2-12 days

0

45

Simplicity 84003254

GUIDE, Belt

$42.99

$

Usually ships in 2-12 days

0

46

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

47

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

48

Simplicity 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 1 left!

0

49

Simplicity 5025146X16SM

BOLT, 3/8-16 X 2, CARRIAGE, GD5, CZ

$4.49

$

Usually ships in 2-12 days

0

50

Simplicity 5416161AYP

WELD, IDLER ARM, 2 BELT DRIVE - BLK

$62.99

$

In Stock, only 1 left!

0

51

Simplicity 5105844YP

SPRING PULLER, 1/2-20, 6.00

$16.99

$

Usually ships in 2-12 days

0

52

Simplicity 5025089SM

NUT, Hex Jam, 1/2-20

$3.99

$

In Stock, only 2 left!

0
