5901798 - Simplicity Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton Deck Lift Group - Deck Hangers Parts Diagram

Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton

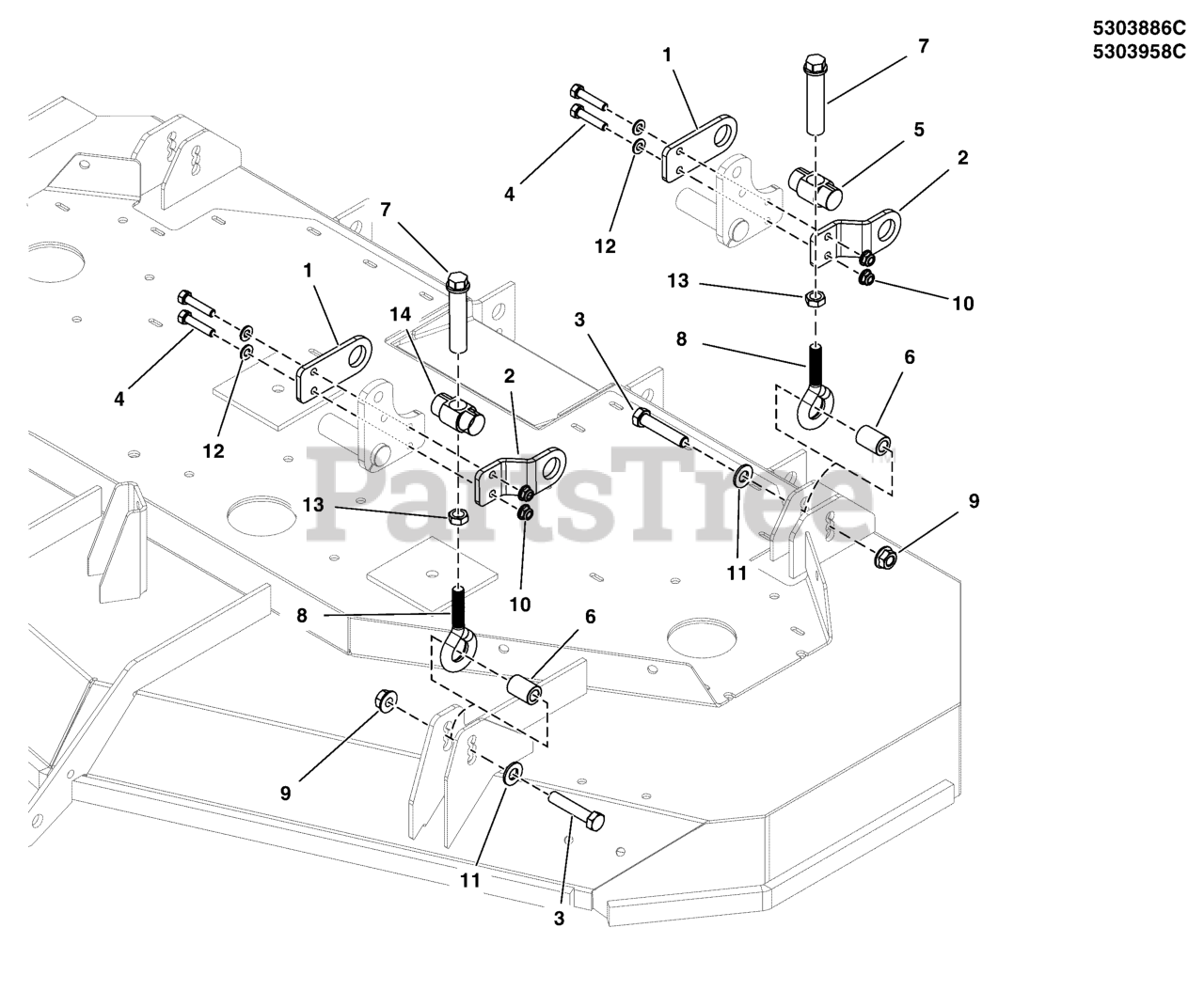

Deck Lift Group - Deck Hangers Parts Diagram

  • Title

1

Simplicity 84003300

MOUNT

$9.99

$

In Stock, only 2 left!

0

2

Simplicity 84003301

MOUNT

$17.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025017X20SM

BOLT, 1/2-13 X 2-1/2 GD5 YZ

$5.49

$

In Stock, only 2 left!

0

4

Simplicity 5025013X12SM

CAPSCREW, Hex Head, 3/8-16 X 1-1/2

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 84003302

TRUNNION

$36.99

$

In Stock, only 3 left!

0

6

Simplicity 84003303

SPACER

Note: (.52 X .87 X 1.25, CZ)

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 84003304

HEIGHT ADJUST
(Superseded to 5109915FS)

$7.49

$

In Stock, only 2 left!

0

8

Simplicity 84003305

EYE BOLT

Note: (1/2-20X6", 2.5"THRD)

$8.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

10

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 16

0

13

Simplicity 5025089SM

NUT, Hex Jam, 1/2-20

$3.99

$

In Stock, only 2 left!

0

14

Simplicity 84003306

TRUNNION

$34.99

$

In Stock, only 1 left!

0
