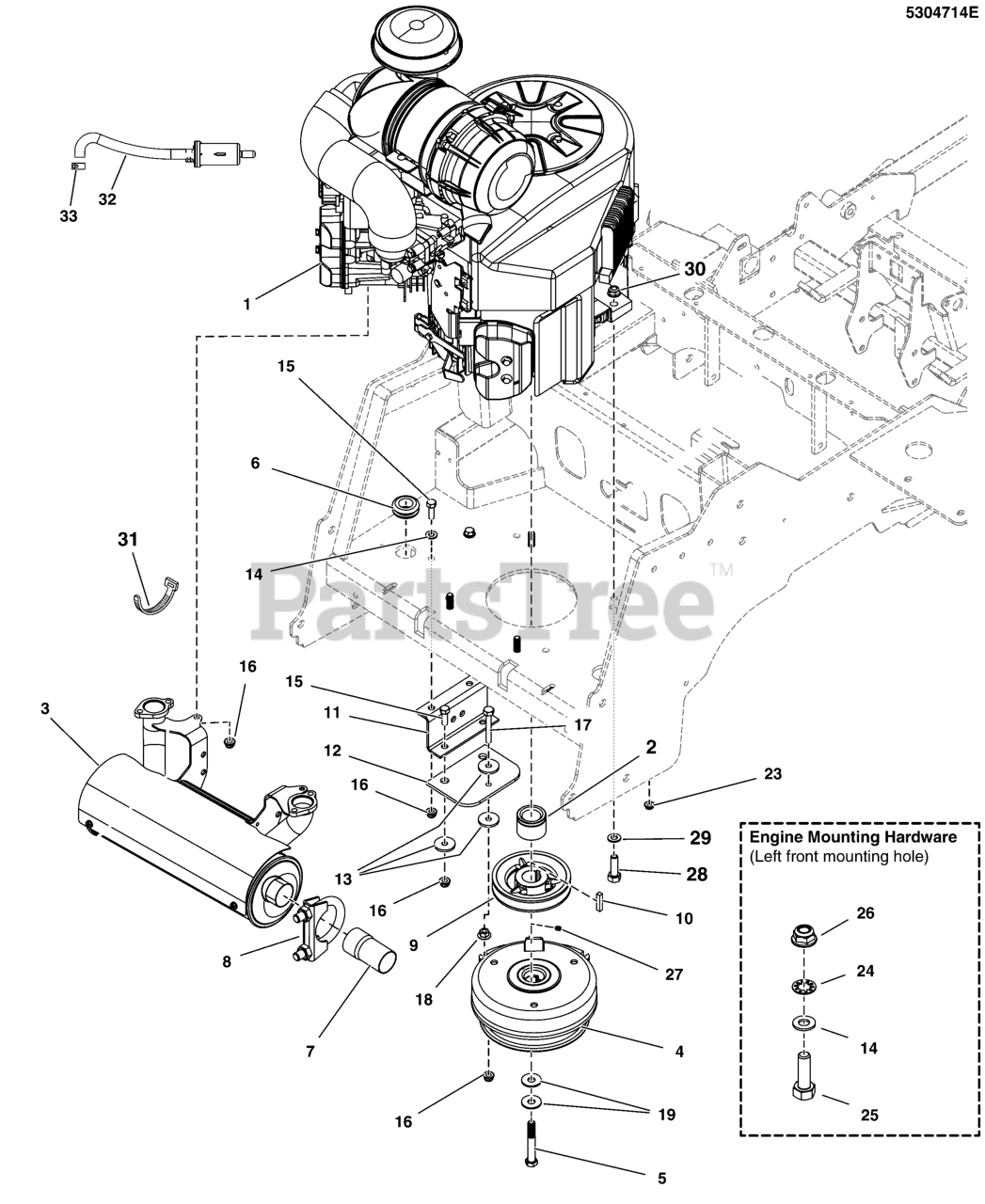

5901798 - Simplicity Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) Parts Diagram

Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) Parts Diagram

  • Title

1

Simplicity 61E877-0005-J1

ENGINE, Briggs & Stratton

$

$

Not available

2

Simplicity 5100926YP

SPACER, 1.13 X 1.75 X 1.35, CZ

$27.99

$

In Stock, only 1 left!

0

3

Simplicity 846819

MUFFLER

$500.99

$

Usually ships in 2-12 days

0

4

CLUTCH

Note: (S/N: 4001550166 and below)

$

$

Not available

4

Simplicity 84006412

CLUTCH

Note: (S/N: 4001550167 and above)

$468.99

$

Usually ships in 2-12 days

0

5

Simplicity 5103300YP

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4, GD8

$5.99

$

Usually ships in 2-12 days

0

6

Simplicity 5103944YP

GROMMET, 7/8"ID, 1/4" THICK STK

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 84003194

PIPE, Exhaust

Note: (1.78"ID X 5" LG)

$24.99

$

Usually ships in 2-12 days

0

8

Simplicity 84003195

CLAMP, Muffler

Note: (1-7/8")

$11.99

$

Usually ships in 2-12 days

0

9

Simplicity 5021682YP

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48

$48.99

$

Usually ships in 2-12 days

0

10

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

In Stock, only 2 left!

0

11

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

12

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

13

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

14

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 4 left!

0

16

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 9

0

17

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

19

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 1 left!

0

20

Simplicity 5021030SM

TIE, 6" Self-Locking

$2.99

$

In Stock, only 3 left!

0

20

Simplicity 5101492YP

TIE,SELF-LOCKING, 24"

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 84003196

Hose/Filter Assembly

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 84003197

CLAMP, Hose

Note: (9/16)

$2.49

$

Usually ships in 2-12 days

0

23

Simplicity 84006413

GUARD

Note: (S/N: 4001550167 and above)

$13.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025188SM

WASHER, 5/16" Internal Tooth Lock

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025025X14YP

BOLT, 5/16-24 X 1-3/4, GD8, PHOS

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025616YP

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025531YP

SCREW, Set, 5/16-18 X 3/8
(Superseded to 1677029SM)

$3.49

$

Usually ships in 2-12 days

0

28

Simplicity 5025013X14SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, Qty 5

0

29

Simplicity 703590

WASHER, .406

$3.99

$

In Stock, Qty 16

0

30

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0
