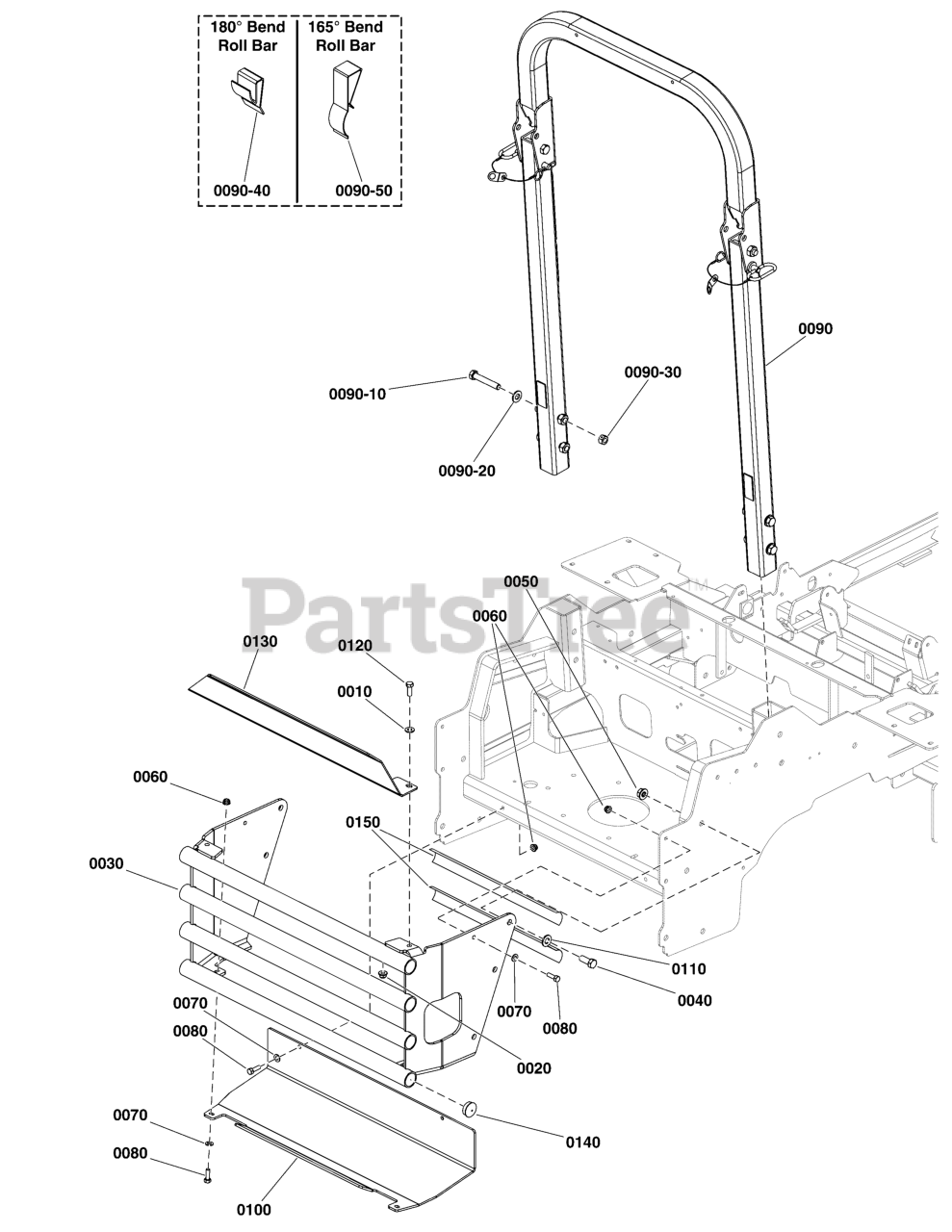

5901798 - Simplicity Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton Rear Bumper and ROPS Group Parts Diagram

Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton

Rear Bumper and ROPS Group Parts Diagram

  • Title

0010

Simplicity 5025293SM

WASHER, 3/8" GR. 9 FLAT

$3.99

$

In Stock, Qty 7

0

0020

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 84003190

BUMPER, Rear

$336.99

$

Usually ships in 2-12 days

0

0040

Simplicity 5025017X10YP

BOLT, 1/2-13 X 1-1/4 GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

0050

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

0060

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 9

0

0070

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, only 4 left!

0

0090

ROPS, IS3200

$

$

Not available

0090-10

Simplicity 5025017X24SM

BOLT, 1/2-13 X 3 GD5 YZ

$5.99

$

In Stock, only 2 left!

0

0090-20

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 13

0

0090-30

Simplicity 5025332SM

NUT, 1/2-13 HEX SIDE LOCK

$3.49

$

In Stock, only 1 left!

0

0090-40

Simplicity 5103403X1YP

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

0090-50

Simplicity 5105140X1YP

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0

0100

Simplicity 84003191

SHIELD, Heat

$125.99

$

Usually ships in 2-12 days

0

0110

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 13

0

0120

Simplicity 5025013X8SM

CAPSCREW, Hex Head, 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

0130

Simplicity 84003192

SHIELD, Carburetor

$75.99

$

Usually ships in 2-12 days

0

0140

Simplicity 5023484SM

PLUG, PANEL, 1.25 - BLACK

$3.99

$

In Stock, only 1 left!

0

0150

Simplicity 84002227

TAPE

$7.49

$

Usually ships in 2-12 days

0
