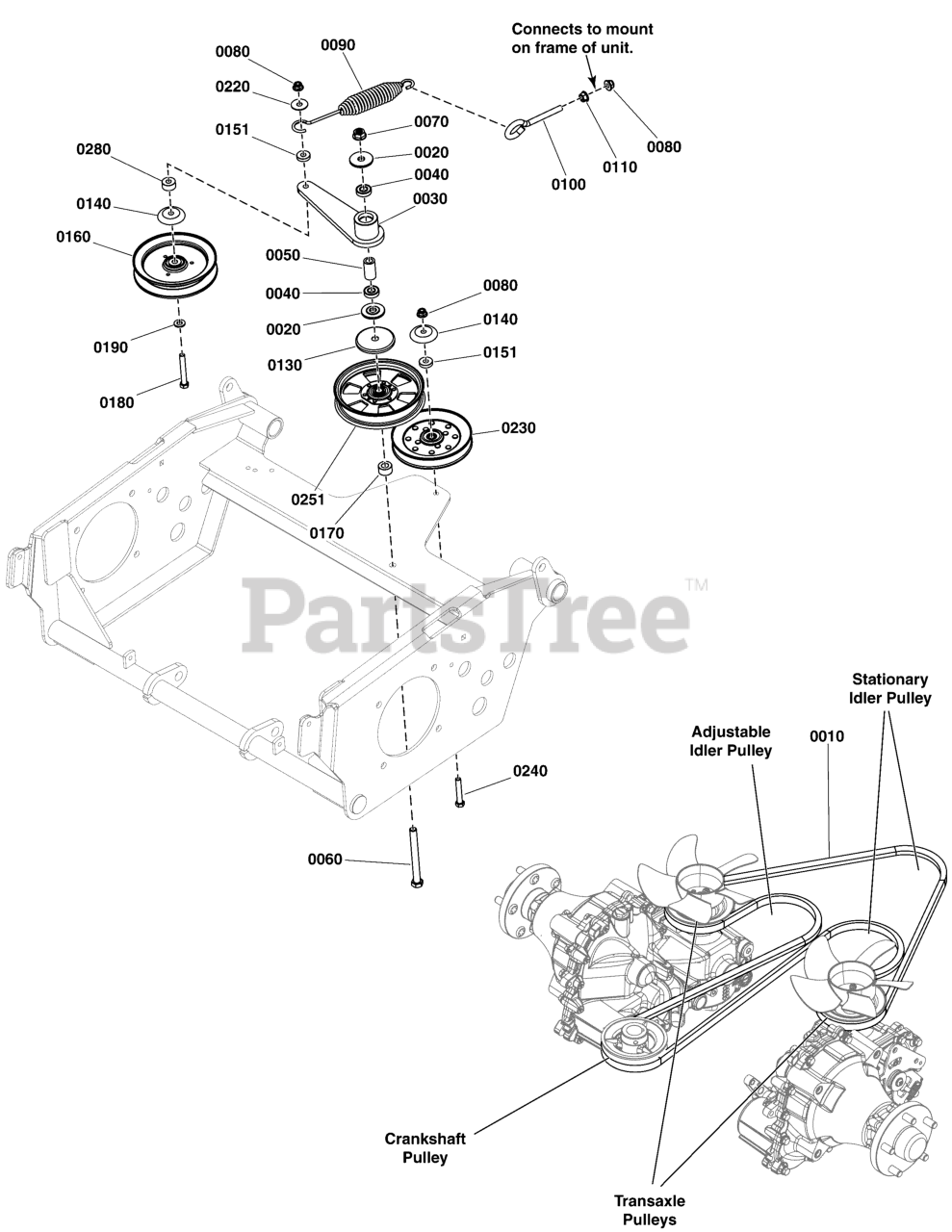

5901798 - Simplicity Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton Transaxle Drive Group Parts Diagram

Cobalt LE 61" Zero-Turn Mower, 37hp Briggs & Stratton

Transaxle Drive Group Parts Diagram

  • Title

0010

Simplicity 84003255

BELT, Drive

Note: (B-SEC, 129"EL, ARAMID, WRAPED)

$103.99

$

In Stock, only 1 left!

0

0020

Simplicity 5103262YP

SPACER, Idler Arm

$7.99

$

In Stock, Qty 5

0

0030

Simplicity 84003256

ARM, Idler

$41.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7078243YP

BEARING, Ball

$10.99

$

In Stock, only 4 left!

0

0050

Simplicity 5103812YP

SPACER

$7.99

$

In Stock, only 2 left!

0

0060

Simplicity 5025017X40SM

BOLT, 1/2-13 X 5" GD5 YZ

$6.49

$

In Stock, Qty 7

0

0070

Simplicity 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

In Stock, only 3 left!

0

0080

Simplicity 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 5100632YP

SPRING-EXT, 1.25OD X 9.3LG X .142WR, BLK

$38.99

$

Usually ships in 2-12 days

0

0100

Simplicity 5025429SM

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C

$6.49

$

Usually ships in 2-12 days

0

0110

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

Usually ships in 2-12 days

0

0130

Snapper 5105145YP

SHIELD, BEARING, 1/2ID X 2-7/8 OD, CZ

$4.49

$

In Stock, only 3 left!

0

0140

Simplicity 5103787YP

SHIELD, BEARING PULLEY, 3/8ID, CZ

$7.49

$

In Stock, only 1 left!

0

0151

Simplicity 5044960SM

SPACER, .39ID x 1 OD x 1/4

$5.49

$

In Stock, only 3 left!

0

0160

Simplicity 5103789YP

PULLEY, C-SEC, V-IDLER, 6.25"ODX3/8ID

$85.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5101162YP

SPACER, .52 X 1.00 X .56

$7.49

$

In Stock, only 1 left!

0

0180

Simplicity 5025013X22SM

CAPSCREW, Hex Head, 3/8-16 X 2-3/4

$4.49

$

In Stock, Qty 6

0

0190

Simplicity 5025293SM

WASHER, 3/8" GR. 9 FLAT

$3.99

$

In Stock, Qty 7

0

0220

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 1 left!

0

0230

Simplicity 5102093YP

PULLEY-IDLER-V, 5.83OB, .38ID, .94W, STL

$52.99

$

Usually ships in 2-12 days

0

0240

Simplicity 5025013X18SM

CAPSCREW, Hex Head, 3/8-16 X 1-3/4

$3.99

$

In Stock, only 2 left!

0

0251

Simplicity 5104717YP

PULLEY, FLT IDLR, 6.0 X 1.0 X .50, CZ

$58.99

$

In Stock, only 1 left!

0

0280

Simplicity 5046860SM

SPACER, .39 X 1.00 X .50, PM, CZ

$6.49

$

Usually ships in 2-12 days

0
