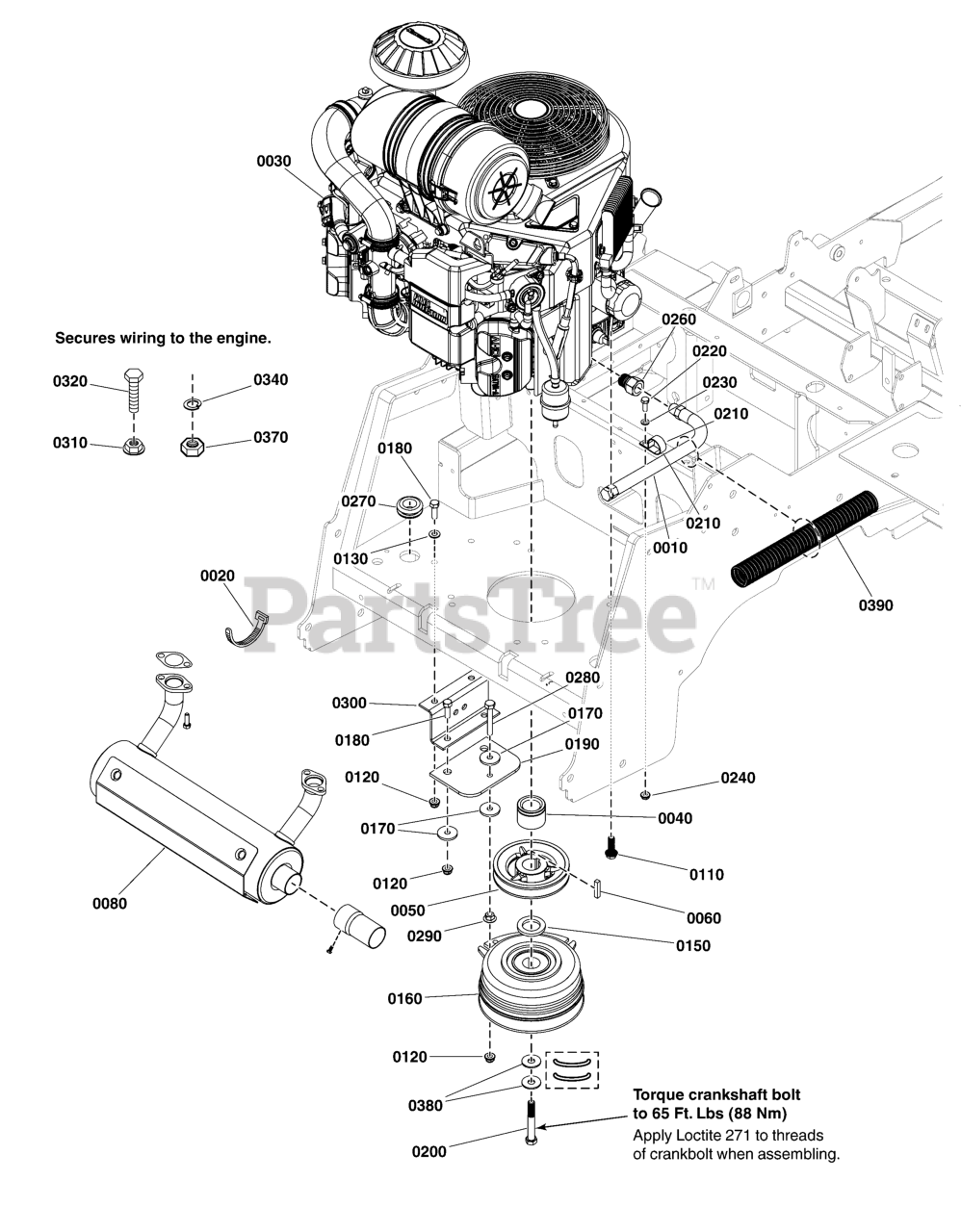

5901985 - Simplicity Cobalt 61" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki FT730V EFI Parts Diagram

Cobalt 61" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki FT730V EFI Parts Diagram

  • Title

0010

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

0020

Simplicity 5101492YP

TIE,SELF-LOCKING, 24"

$3.49

$

Usually ships in 2-12 days

0

0030

ENGINE, KAWASAKI, FT730V, EFI

Note: (Refer to Note: *)

$

$

Not available

0040

Simplicity 5100926YP

SPACER, 1.13 X 1.75 X 1.35, CZ

$27.99

$

In Stock, only 1 left!

0

0050

Simplicity 5021682YP

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48

$48.99

$

Usually ships in 2-12 days

0

0060

Simplicity 5050407X10YP

KEY, 1/4 SQ. X 1-1/4

$3.99

$

In Stock, only 2 left!

0

0080

Simplicity 5104326YP

MUFFLER, KAWI, HORIZONTAL, 5" CAN

$207.99

$

In Stock, only 2 left!

0

0110

Simplicity 5025532YP

BOLT,Hex Flange, 3/8-16 X 1-1/4, GR5
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 9

0

0130

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 5046904YP

SPACER, 1.13 X 1.75 X .25

$17.99

$

In Stock, only 1 left!

0

0160

Simplicity 5105090YP

CLUTCH, WARNER, 200 FT-LB, 1.13" X 6.323

$456.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

0180

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

In Stock, Qty 6

0

0190

Simplicity 5043636SM

PAD, Clutch Anchor

$11.99

$

In Stock, only 1 left!

0

0200

Simplicity 5102866YP

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm)

$5.49

$

Usually ships in 2-12 days

0

0210

Simplicity 5021500SM

CLAMP, VINYL INSULATED, 1.00

$3.99

$

Usually ships in 2-12 days

0

0220

Simplicity 5025010X6SM

CAPSCREW, Hex Head, 1/4-20 x 3/4 (stiffener to top of cover)

$3.99

$

In Stock, Qty 13

0

0230

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0240

Simplicity 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, only 1 left!

0

0260

Simplicity 5022234SM

ADAPTER, Oil Drain

$15.99

$

Usually ships in 2-12 days

0

0270

Simplicity 5103944YP

GROMMET, 7/8"ID, 1/4" THICK STK

$2.99

$

Usually ships in 2-12 days

0

0280

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4

$3.99

$

In Stock, only 1 left!

0

0290

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

0300

Simplicity 5410367AYP

ANCHOR, CLUTCH, IS600-IS700 - BLK

$17.99

$

In Stock, only 1 left!

0

0310

Simplicity 5025355SM

NUT, Hex, Serrated Flange, M8-1.25

$3.49

$

Usually ships in 2-12 days

0

0320

Simplicity 5025294SM

SET SCREW, Square Hd, 1/2-13 x 3

$6.99

$

Usually ships in 2-12 days

0

0340

Simplicity 5025170SM

WASHER, Flat

$3.99

$

Usually ships in 2-12 days

0

0370

Simplicity 5025536YP

NUT, HEX, M8-1.25, YZ, GD 8.8

$3.49

$

Usually ships in 2-12 days

0

0380

Simplicity 5025585YP

BELLEVILLE, WASHER, 1.1875 X .442 X .089

$4.49

$

In Stock, only 1 left!

0

0390

Simplicity 5050927X16YP

WIRE LOOM, 3/8 ID X 16 IN

$4.99

$

Usually ships in 2-12 days

0
