5P65MU - Troy-Bilt Engine 5P65MU Flywheel & Shroud Parts Diagram

Engine

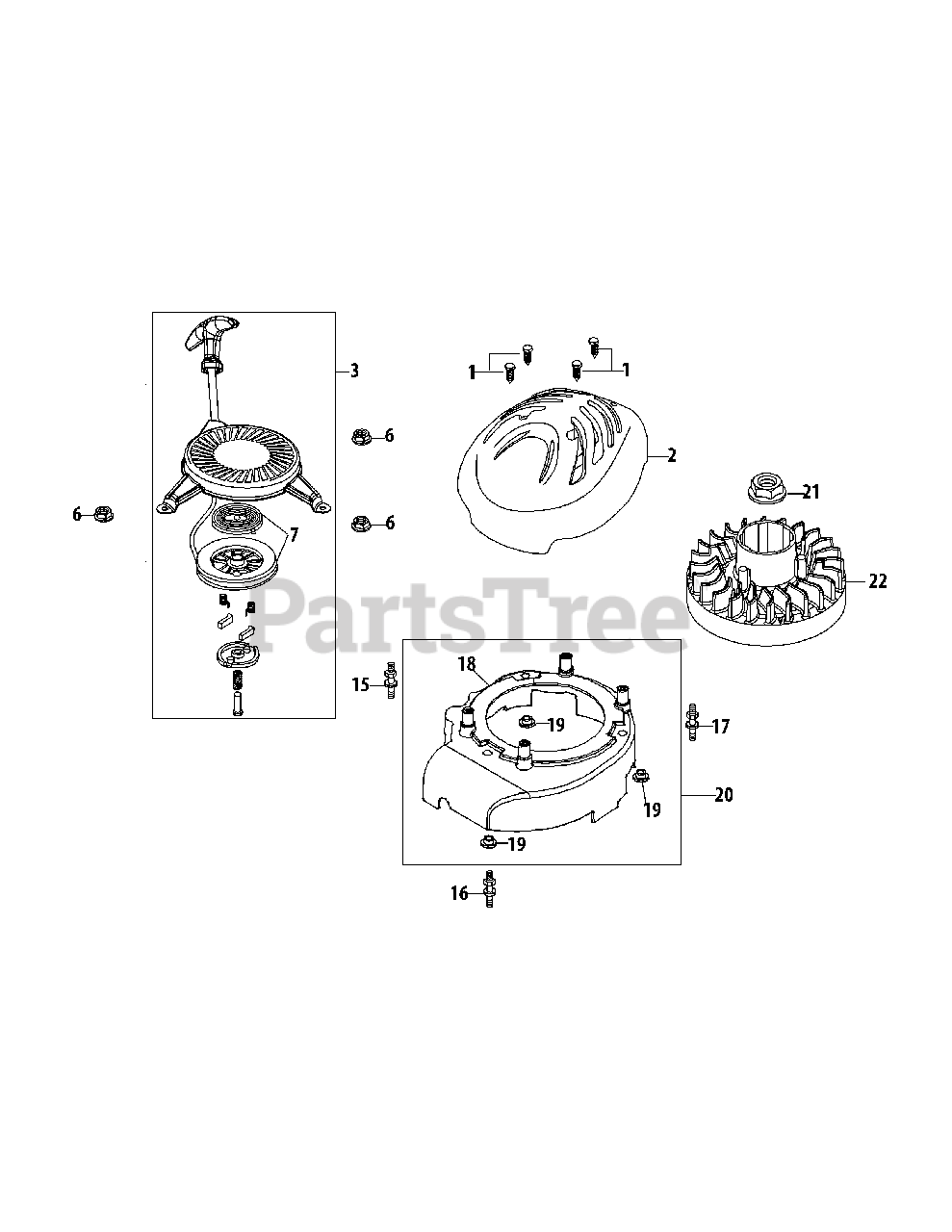

5P65MU Flywheel & Shroud Parts Diagram

  • Title

1

Troy-Bilt 710-04744

Screw, #12-16 X 1.00"

$5.49

$

In Stock, Qty 11

0

2

Outer Shroud (Model Specific)

Note: Refer to unit breakdown

$

$

Not available

3

Troy-Bilt 951-12683

Recoil Starter Assembly

$92.99

$

In Stock, Qty 5

0

6

Troy-Bilt 712-04212

Nut M6X10Mm
(Superseded to 712-05015)

$6.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 951-11721

Recoil Spring

$46.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 751-11722

Stud Left/Black/Ye Zinc

$4.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 951-11723

Stud Front/Unmarked/Ye Zinc

$4.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 951-11724

Stud Right/White/Ye Zinc

$4.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 951-10875

Inner Shroud

$46.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 750-05320

Engine Shroud Spacer

$4.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 951-12863

Inner Shroud Assembly

$

$

Not available

21

Troy-Bilt 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 951-11043

Flywheel

$147.99

$

Usually ships in 3-6 days

0
