60 (0340002U) - International Harvester Riding Mower (1967 - 1971) Magneto - Electric Start Engine Parts Diagram

Riding Mower

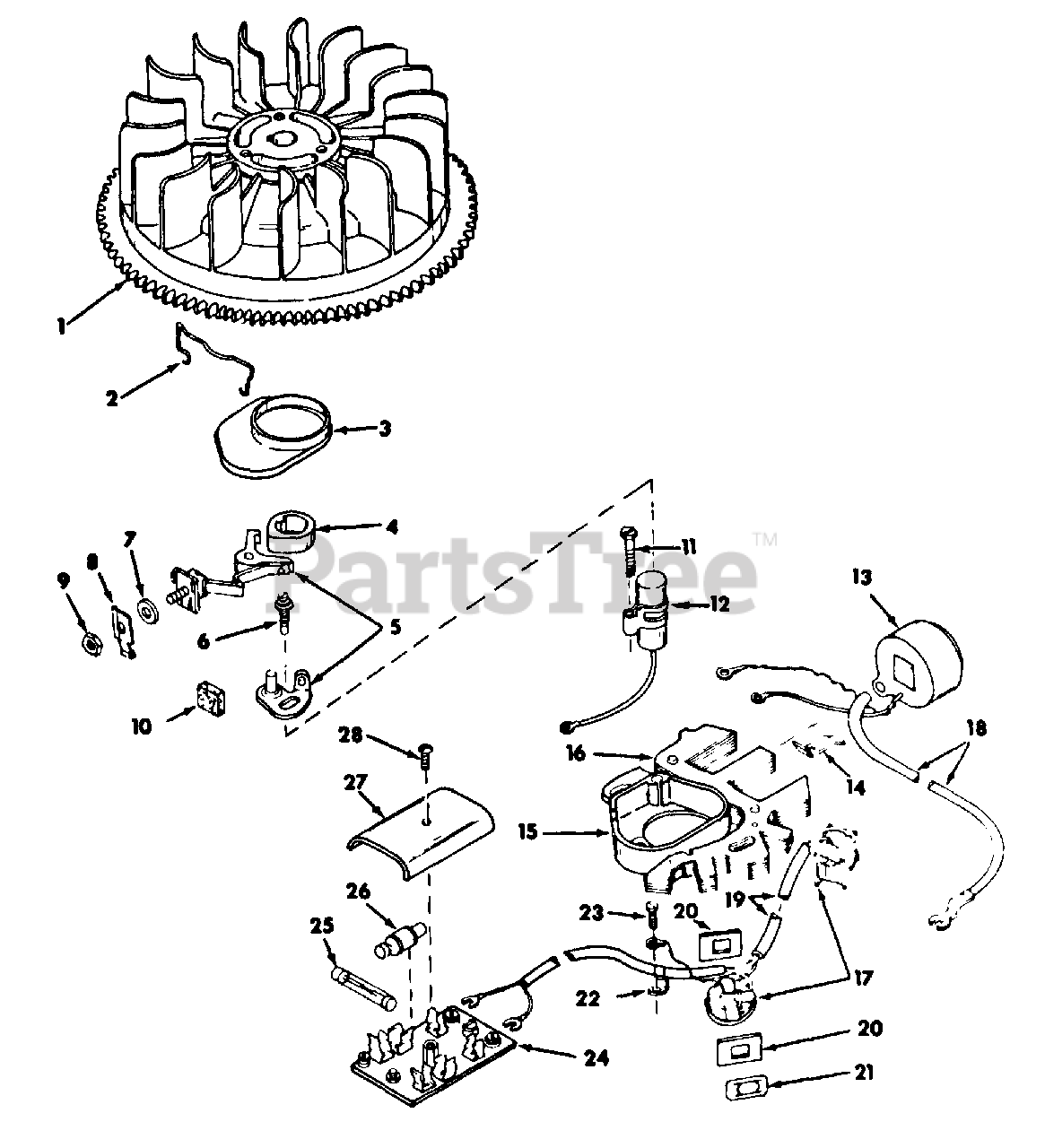

Magneto - Electric Start Engine Parts Diagram

  • Title

Cub Cadet IH-488743-R91

MAGNETO

$

$

Currently unavailable

1

FLYWHEEL

Note: Not Available Seperately

$

$

Not available

2

Cub Cadet IH-488744-R1

SPRING, DUST COVER

$

$

Currently unavailable

3

COVER, BREAKER DUST

Note: Not Available Seperately

$

$

Not available

4

Cub Cadet IH-488627-R1

CAM, BREAKER

$

$

Not available

5

Cub Cadet IH-488631-R1

CONTACT ASSY, BREAKER
(Superseded to TC-30547A)

$18.99

$

In Stock, only 4 left!

0

6

SCREW AND WASHER BREAKER

Note: Not Available Seperately

$

$

Not available

7

Cub Cadet IH-131095

WASHER, NO. 8 C-Z HV. LOCK

$

$

Currently unavailable

8

TAB, GROUND TERMINAL

Note: Not Available Seperately

$

$

Not available

9

Cub Cadet IH-120622

NUT, 8-32 C-Z HEX. MACH SCREW
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet IH-488642-R1

FELT, CAM WIPER

$

$

Currently unavailable

11

Cub Cadet IH-23163-R1

SCREW, 8-32 X 13/16 C-Z TYPE F SLT-HEX,

$

$

Currently unavailable

12

Cub Cadet IH-488639-R1

CONDENSER
(Superseded to TC-30548B)

$13.99

$

In Stock, Qty 20+

0

13

Cub Cadet IH-488637-R91

COIL ASSY
(Superseded to TC-30560A)

$48.99

$

In Stock, only 2 left!

0

14

Cub Cadet IH-488640-R1

CLIP, COIL WEDGE SPRING

$

$

Currently unavailable

15

Cub Cadet IH-488711-R91

STATOR ASSY

Note: CONSISTS OF REF NOS 2, 3 AND 5 THRU 28

$

$

Currently unavailable

16

Cub Cadet IH-488745-R1

CORE AND PLATE

$

$

Currently unavailable

17

Cub Cadet IH-488746-R1

GENERATOR COILS AND LEADS

$

$

Not available

18

WIRE, LEAD

Note: Not Available Seperately

$

$

Not available

19

Cub Cadet IH-488747-R1

SLEEVE, INSULATION

$

$

Currently unavailable

20

Cub Cadet IH-488748-R1

SHIELD, COIL

$

$

Currently unavailable

21

Cub Cadet IH-488749-R1

CLIP, COIL FASTENING

$

$

Currently unavailable

22

Cub Cadet IH-488750-R1

CLIP, GROUND

$

$

Currently unavailable

23

Cub Cadet IH-488751-R1

SCREW, GROUND

$

$

Currently unavailable

24

Cub Cadet IH-543157-R1

PLATE, RECTIFIER

Note: REPLACES IH-488752-R1

$

$

Currently unavailable

25

Cub Cadet IH-148369

FUSE, 3AG 6 AMPERES

$

$

Not available

26

Cub Cadet IH-488754-R2

RECTIFIER

$

$

Not available

27

COVER, PANEL

Note: Not Available Seperately

$

$

Not available

28

Cub Cadet IH-421572

SCREW, 5-40 X 3/8 C-Z CR-REC-RD-HD MACH

$

$

Currently unavailable
