621540x85NA - Murray 21" Snow Thrower (2003) Auger & Control Assembly Parts Diagram

21" Snow Thrower

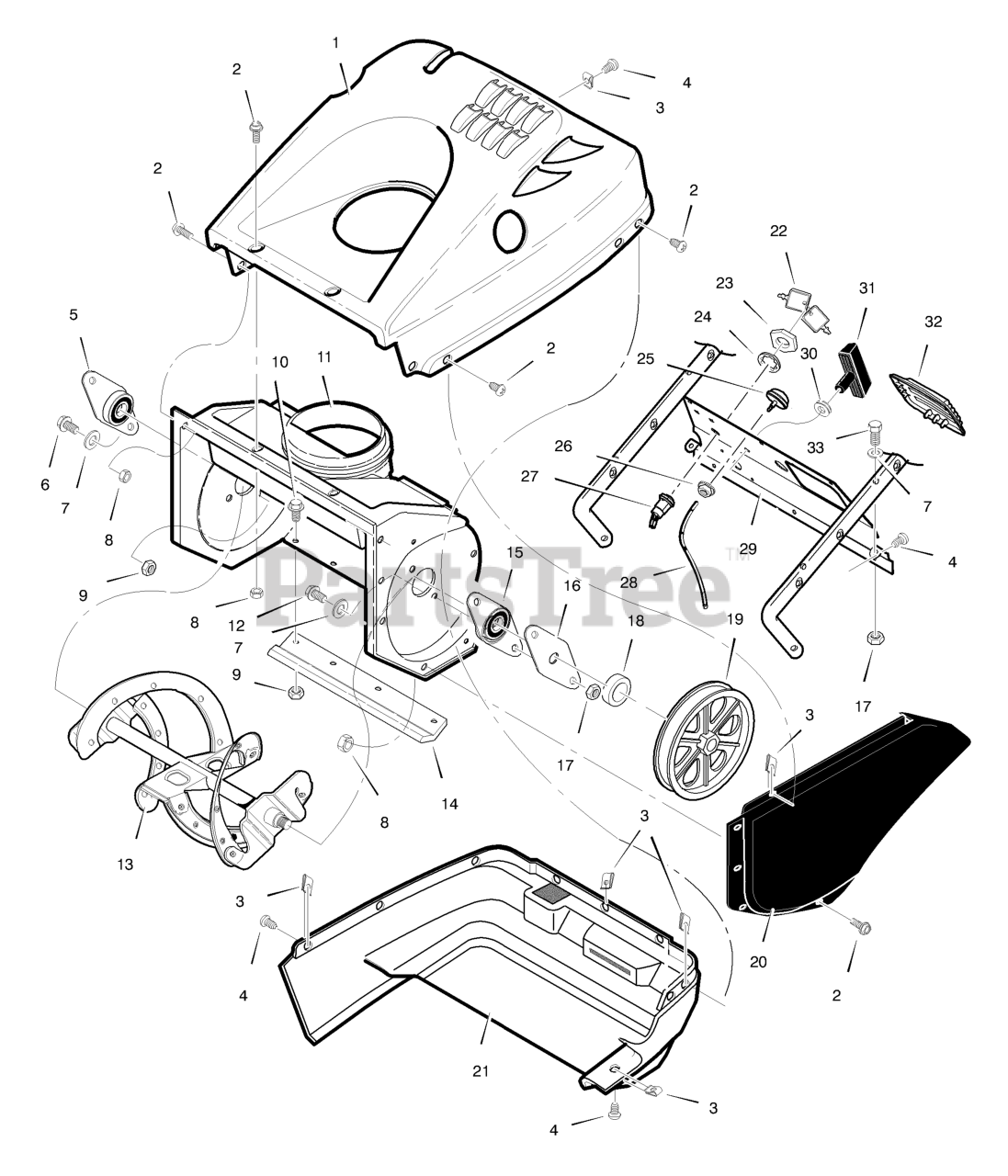

Auger & Control Assembly Parts Diagram

  • Title

1

Murray 1501704MA

COVER, TOP

$182.99

$

Usually ships in 2-12 days

0

2

Murray 12342MA

SCREW, #10-24 x 0.50

$3.99

$

Usually ships in 2-12 days

0

3

Murray 578109MA

NUT, 1/4-10 SPEED J-TYPE

$6.49

$

In Stock, Qty 8

0

4

Murray 313685MA

SCREW, 1/4-14 x 0.75

$5.49

$

Usually ships in 2-12 days

0

5

Murray 577023MA

FLANGE BEARING

$5.99

$

In Stock, only 3 left!

0

6

Murray 710263

SCREW, 1/4-20 x 1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

7

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

8

Murray 312300MA

NUT, #10-24 REGHEX CTRLK
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 15X143MA

NUT, 1/4-20 REGHEX CTRLK

$4.99

$

In Stock, only 4 left!

0

10

Murray 302628MA

SCREW, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 6

0

11

Murray 340091MA

AUGRT HOUSING ASSY.

$137.99

$

In Stock, only 1 left!

0

12

Murray 579052

SCREW, 1/4-20 x 0.63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

13

Murray 327072MA

AUGER ASSY., COMP.

$185.99

$

In Stock, only 1 left!

0

14

Murray 55323MA

BLADE, SCRAPER

$35.99

$

In Stock, only 1 left!

0

15

Murray 583459MA

SF BEARING & PLATE ASSY.

$27.99

$

Usually ships in 2-12 days

0

16

Murray 334287MA

LT PLATE, RETAIKNER BRNG

$7.49

$

In Stock, only 1 left!

0

17

Murray 73826

NUT, 1/4-20 REXHEX CTRLK

$4.99

$

In Stock, Qty 20+

0

18

Murray 578101MA

SPACER, SLEEVE

$4.99

$

Usually ships in 2-12 days

0

19

Murray 333446MA

PULLEY

$22.99

$

Usually ships in 2-12 days

0

20

Murray 340089MA

COVER, BELT

$58.99

$

Usually ships in 2-12 days

0

21

Murray 1501705MA

COVER, BOTTOM

$131.99

$

Usually ships in 2-12 days

0

22

Murray 49643

2 KEYS & RING ASSY.
(Superseded to 691959)

$7.99

$

In Stock, Qty 9

0

23

Murray 300193MA

NUT, 5/8-32

$5.49

$

Usually ships in 2-12 days

0

24

Murray 313683

WASHER
(Superseded to 313683MA)

$4.49

$

Usually ships in 2-12 days

0

25

Murray 394281S

BULB, PRIMER

$16.99

$

Usually ships in 2-12 days

0

26

Murray 271172

NUT, 1/-20 REGHEX KEPS

$42.99

$

Usually ships in 2-12 days

0

27

Murray 56992MA

SWITCH, IGNITION 45 DEG.

$14.99

$

Usually ships in 2-12 days

0

28

Murray 335507MA

HOSE, PRIMER 9.5"

$7.99

$

Usually ships in 2-12 days

0

29

Murray 1501706

PANEL, CONTROL
(Superseded to 1501706MA)

$83.99

$

Usually ships in 2-12 days

0

30

Murray 57587

GROMMET & WASHER
(Superseded to 57587MA)

$3.99

$

Usually ships in 2-12 days

0

31

Murray 333643

GRIP, RECOIL START

$

$

Not available

32

Murray 1501699MA

PANEL, ACCESS SPARK PLG

$13.99

$

Usually ships in 2-12 days

0

33

Murray 313674MA

SCREW, 1/4-20 x 1.25

$3.99

$

Usually ships in 2-12 days

0
