62570 - Lawn-Boy Vac-Bagger for 44" Precision Riding Mower (SN: 250000001 - 250999999) (2005) BLOWER HOUSING AND EXTENSION ASSEMBLY Parts Diagram

Vac-Bagger for 44" Precision Riding Mower

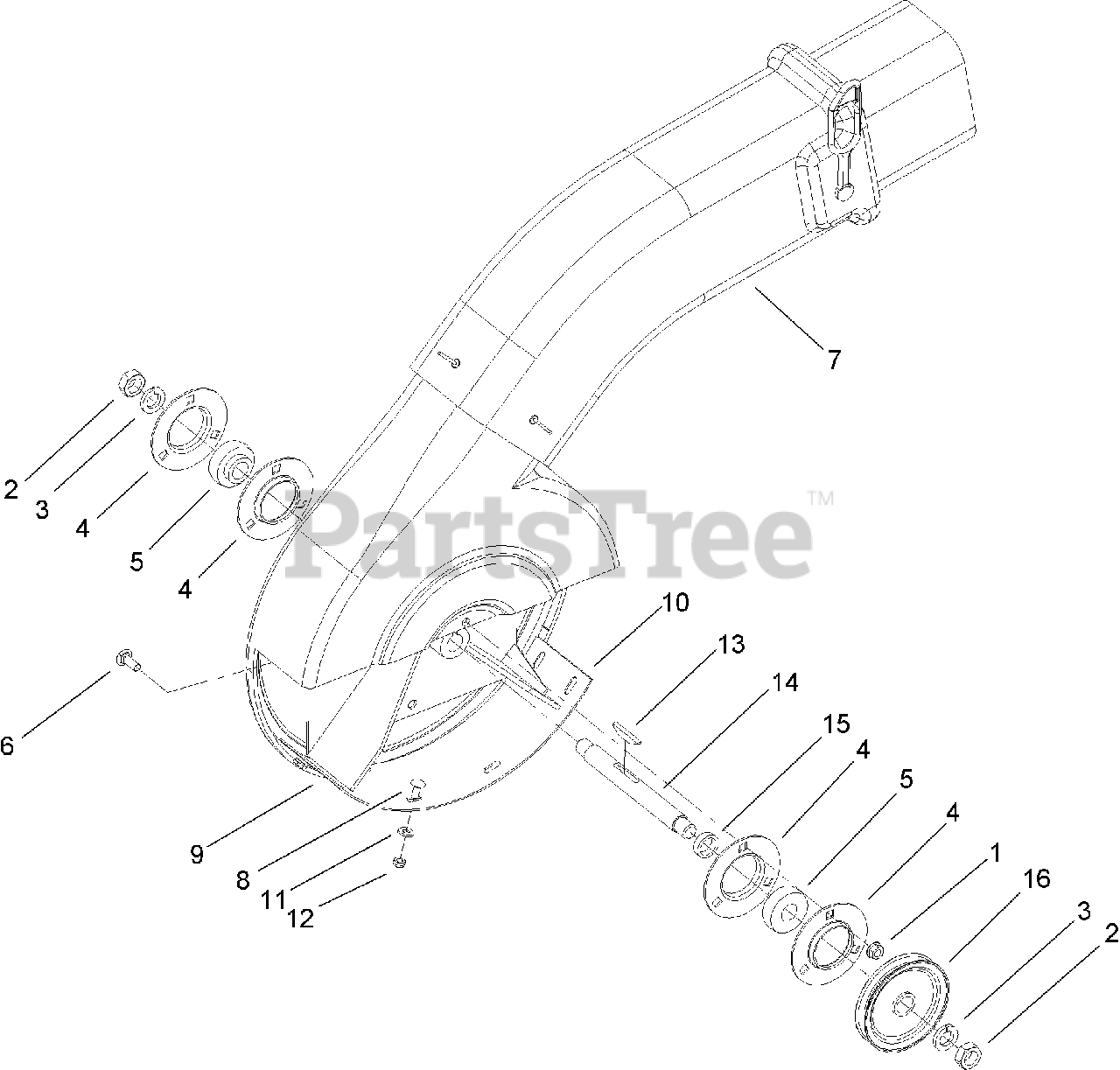

BLOWER HOUSING AND EXTENSION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 13

0

3

Lawn-Boy 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 251-341

FLANGE

$16.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 251-288

BEARING-BALL

$98.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 108-9513

BLOWER HOUSING/TUBE ASM

$699.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 79-4300-03

IMPELLER ASM

$473.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 79-7170-03

Cover-Blower, Bottom

$29.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 3257-40

KEY-HI PRO

$9.49

$

Usually ships in 3-6 days

0

14

Lawn-Boy 79-1470

SHAFT-BLOWER

$62.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 7038

Spacer

$9.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 79-1460

PULLEY-BLOWER

$68.99

$

Usually ships in 3-6 days

0
