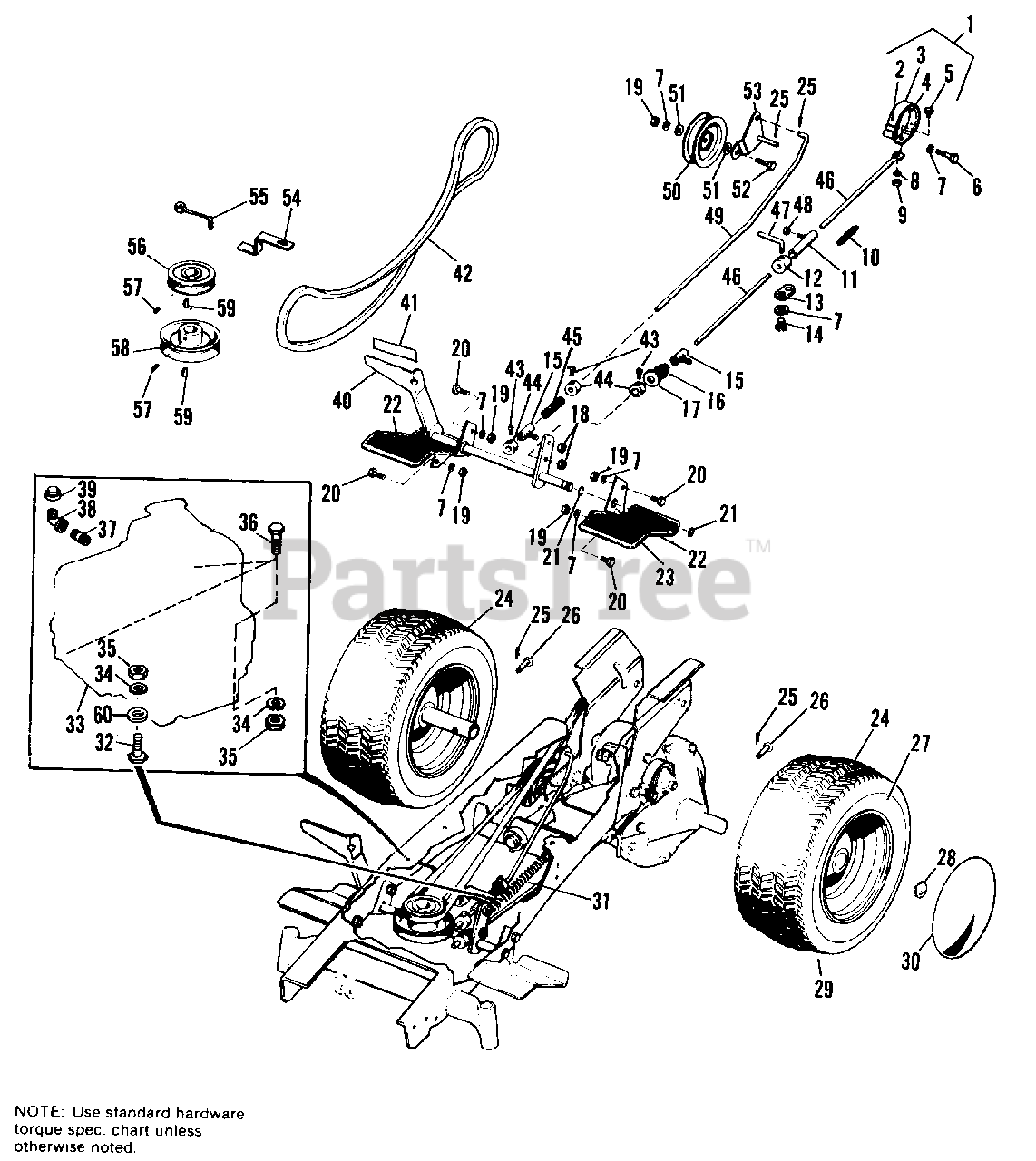

627 (990578) - Simplicity Yeoman Lawn Tractor, Manual Engine, Pulley, Brake & Clutch Group Parts Diagram

Yeoman Lawn Tractor, Manual

Engine, Pulley, Brake & Clutch Group Parts Diagram

  • Title

1

Simplicity 2156134SM

BAND ASSY., Brake

$104.99

$

Usually ships in 2-12 days

0

2

Simplicity 2826021SM

RIVET, #7 x 1/4

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 2156134SM

BAND, Brake

$104.99

$

Usually ships in 2-12 days

0

4

Simplicity 2156134SM

LINING, Brake

$104.99

$

Usually ships in 2-12 days

0

5

Simplicity 2827340

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

6

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 10

0

8

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

10

Simplicity 2159106SM

SPRING (990645 8 990646 Only)
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

10

Simplicity 2121037SM

SPRING

$

$

Not available

11

Simplicity 165075

GUIDE ASSY., Rod

$

$

Not available

11

Simplicity 156304

GUIDE ASSY., Rod (990415, 990597, 990598 Only)

$

$

Not available

12

Simplicity 157087

COLLAR, Parking Brake

$

$

Not available

13

Simplicity 170659

ANCHOR, Spring (990645 8 990646 Only)

$

$

Not available

14

Simplicity 928730

SCREW, Hex, Taptite, 3/8-16 x 1/2 (990645 8 990646 Only)

$

$

Not available

15

Simplicity 156303

GUIDE ASSY., Rod

$

$

Not available

16

Simplicity 2157127SM

SPRING (990597, 990598, 990778, 990779 Only)

$

$

Not available

17

Simplicity 1924940SM

WASHER, Plain, 3/8 (990597, 990598, 990778, 990779 Only)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 2823362

LOCKNUT, Hex, 5/16-18 (Qty. 1 on 990415, 990482, 990542 Only)

$

$

Not available

19

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

20

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

21

Simplicity 2158596

RING, Snap (990645 & 990646 Only)

$

$

Not available

18

Simplicity 2118240

RING, Snap

$

$

Not available

22

Simplicity 162054

COVER, Footrest

$

$

Not available

23

Simplicity 162029

FOOTREST, L.H.

$

$

Not available

24

Simplicity 171826

WHEEL & TIRE ASSY., Rear (990645 & 990646 Only)

$

$

Not available

21

Simplicity 159096

WHEEL & TIRE ASSY., Rear

$

$

Not available

25

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

26

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

27

Simplicity 173025

WHEEL ASSY.

$

$

Not available

28

Simplicity 121342

BUTTON, Plug

$

$

Not available

29

Simplicity 171827

TIRE, Tubeless (990645 & 990646 Only)

$

$

Not available

29

Simplicity 2157490

TIRE, Tubeless

$

$

Not available

30

Simplicity 2156211SM

CAP, Hub, Rear

$

$

Not available

31

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, only 1 left!

0

31

Simplicity 162082

SPRING, Return (990415 Only)

$

$

Not available

32

Simplicity 170844

CAPSCREW, Special (990645 & 990646 Only)

$

$

Not available

32

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

33

ENGINE, Briggs & Stratton, Model 146702, Type 1120-01

$

$

Not available

34

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

37

Simplicity 157497

NIPPLE, Pipe, 3/8

$

$

Not available

38

Simplicity 910023

ELBOW, Street, 45ø

$

$

Not available

39

Simplicity 2801752

CAP, 3/8

$

$

Not available

40

Simplicity 162024

SHAFT ASSY., Clutch

$

$

Not available

41

Simplicity 162098

PAD, Pedal

$

$

Not available

42

Simplicity 2162081SM

V-BELT, Drive

$38.99

$

Usually ships in 2-12 days

0

43

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

44

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

45

Simplicity 2157041SM

SPRING

$15.99

$

Usually ships in 2-12 days

0

45

Simplicity 2159181SM

SPRING (990415, 990486 & 990542 Only)

$7.49

$

In Stock, only 2 left!

0

46

Simplicity 162092

ROD, Brake

$

$

Not available

47

Simplicity 157088

LOCK, Parking Brake

$

$

Not available

48

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

49

Simplicity 170064

ROD, Clutch

$

$

Not available

49

Simplicity 163002

ROD, Clutch

Note: (990415, 990486 & 990542 Only)

$

$

Not available

50

Simplicity 2106716

PULLEY, Idler

$

$

Not available

51

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

52

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

53

Simplicity 162021

BRACKET ASSY., Pulley

$

$

Not available

54

Simplicity 156331

STOP, Belt

$

$

Not available

55

Simplicity 1729264

STOP, Belt

$

$

Not available

56

Simplicity 162049

PULLEY, Engine, Small

$

$

Not available

57

Simplicity 2830543

SETSCREW, 5/16-18 x 1/2

$

$

Not available

58

Simplicity 2156111SM

PULLEY, Engine, Large

$75.99

$

Usually ships in 2-12 days

0

59

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 2 left!

0

60

Simplicity 2817377

WASHER, Plain, 1/4 (990486, 990542, 990645 & 990646 Only)

$

$

Not available
